JP Hobby Electrical Magnetic Brake Controller system ALF
Produktbeschreibung

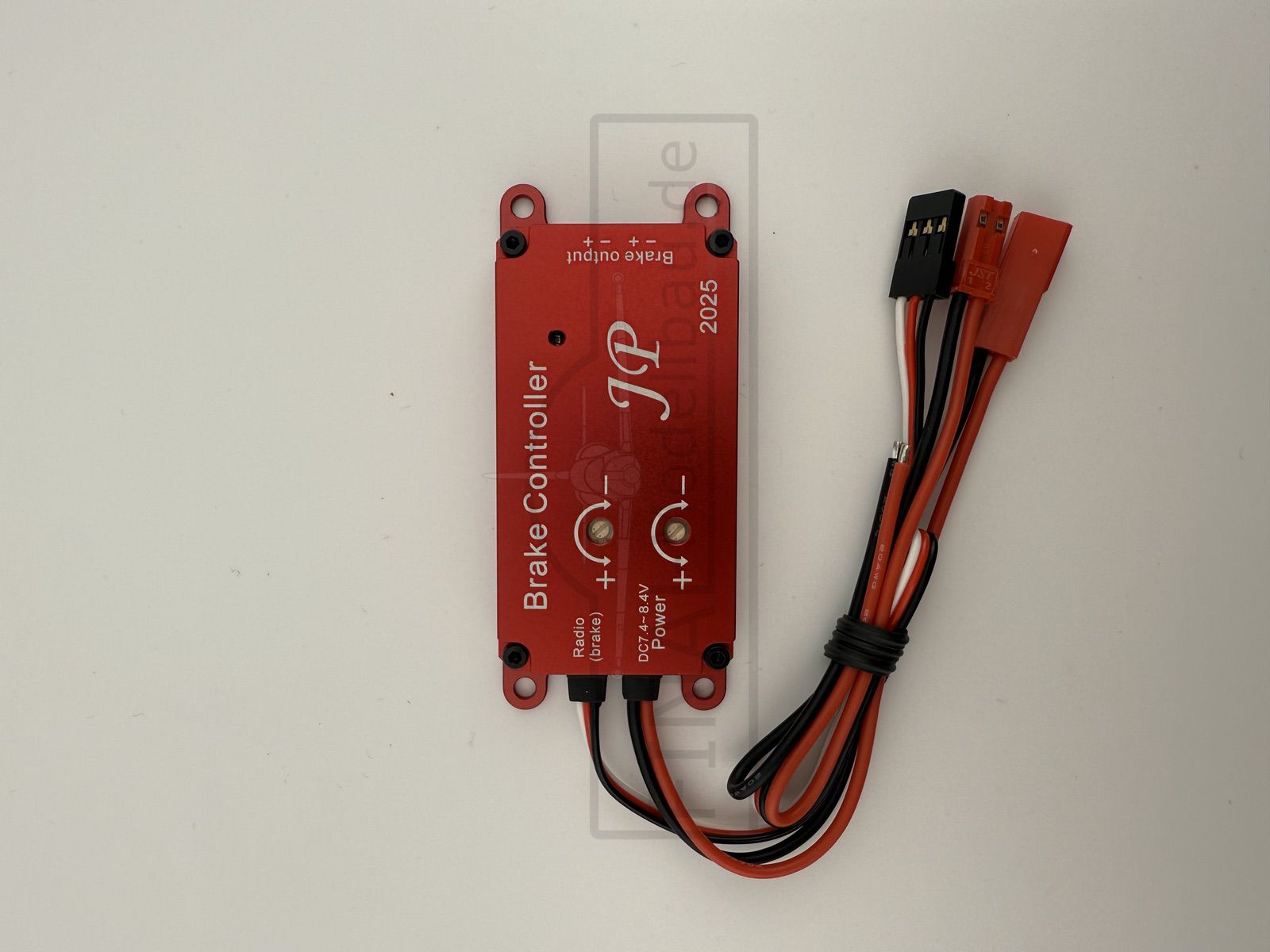

JP Hobby Electrical Magnetic Brake Controller system ALF
Electrical Magnetic Brake Controller for RJP Hobby magnetic brake systems. This is the same controller that is included with JP Hobby Electric Wheel and Brake Sets.
JP E-Brake Using illustration
- Voltage input : 2S-6S Can tap directly on aircraft batteries Or use an external battery 2S-6S
- Voltage output: 6-10V
- Signal input : Connect the module on your receiver on a 2 or 3 position switch channel or for variable braking force, to a slider or rotary (variable) knob on your TX. Some will set up brakes as a mix, with the "down elevator" to save a channel.
- The braking force is controlled independantly Left / Right by the servo travel/endpoints you set in your TX.
Specifications
- Input：7.4v~25.2v (2~6S lipo)
- Output Voltage: 6~10V
- Size: 75 x 33 x 10mm
- Weight: 32g
Downloads
| Datei | Dateigröße |
|---|---|
| product_saftey_information_accessories.pdf (2.63 MB) | 2.63 MB |
| produktsicheheitshinweis_Zubehoer.pdf (2.63 MB) | 2.63 MB |
