Pilot-RC Matrix 2.8m (110″) inklusive E-Fahrwerk und Schubvectorsteuerung Farbschema 05

after great feedback with Matrix 2.2 we decided to develop Big Matrix for new era. this big Matrix is an innovative approach to a new sport jet/ 3Djet. Great capabilities had to be combined between sport jet and unbeatable 3D performance. everything aerodynamic we tested and learned from Matrix and develop together with one of the best pilot in the world more than 1 year test so this one is next level of Matrix performance so we can say this is best big sport jet we had done with ultimate flying characteristics for precise aerobatics and 3D aerobatics at the same time we upgrage design of wing develop base from 2.2 to 2.8 with new feature aileron with tip aileron counter balance aid in roll authority and allow for one aileron servos per wing and flaps can be work as aileron for full axial roll.
The Matrix all feature and shape of airframe this from one of the best designer Mirco Pecorari from Aircraftstudiodesign, a little like the charismatic hypercars style.

Specifications:

FEATURES:

• Extremely lightweight full composite construction especially designed for outstanding sport flight with 3D performance
• Painted outside the mold so no seam lines
• Ultra light weight landing gear special build for Matrix 2.8m
• Specially designed easy access to turbine for speedy installation
• Field setup can be done in seconds, thanks to the quick releases on the wings without the need for any tools.
•  the single elevator clamp from the top, only a few turns to tight/loose the bolt then you can install/take out the stabilizer.
• flap can use as aileron to make very axial rolling performance with counter balance on tip aileron allow to use only 1 servo per aileron
• Removable wing and stabilizer and vertical fin for easy transport
• Removable two piece of fuselage for easy transport, only four bolt to lock two piece fuselage. tail pipe is fixed on the back section of fuselage. front fuselage is 1927mm, back fuselage is 875mm
• The equipment installation board make the electronic items with very clear installation. Most of the wire can be hidened.
• pre-install tube for the stab/rudder extension wire, easy to install.
• Option with vector tail pipe for 3D flight.

Included hardware:

• Pilot-RC electric landing gear & brakes set
• 4in1 connector/leads for wing and fuselage
• 3in1 connector/leads for two piece of fuselage
• 2in1 connector/leads for two piece of fuselage(option for vector version)
• Complete air frame (including carbon wing-tubes and preinstalled and painted fiberglass control horns)
• normal tail pipe (optional Vector thrust pipe)
• 5.500ml fuel bag
• 1800ml smoke oil bag(option)
• Pre-prepared pushrods with ball links
• Servo connector brackets

*Also available: TR(turbine ready) version 2.8m Matrix jet with fuel bag, normal tailpipe, electric retract gear with brake, servo and hardware, preinstall the above items in factory. with wing bag.

*Also available:TR(turbine ready) PRO version 2.8m Matrix jet with fuel bag ,fuel smoke bag, smoke pump, vector tailpipe, electric retract gear with brake, servo and hardware, preinstall the above items in factory. with wing bag and fuselage bag

Required hardware:

Turbine size:

• 160-240N for normal sport flying
• 250-320N for 3D vector flight – Avoid high speed high G flying

Servos: Total x10 ( standard size )
x2 for flaps (minimum 40kg)
x1 for rudder (minimum 40kg)
x2 for ailerons (minimum 40kg)
x2 for elevators (minimum 40kg)
x1 for vector elevator (minimum 37kg), this is option
x1 for vector rudder (minimum 37kg), this is option
x1 for steering (minimum 21kg)

Also requires all the usual accessories such as transmitter, receiver, batteries, powerbox and possibly other small accessories.

Pilot-Rc recommended hardware:

• Servos: Pilot-Rc PW48AH (48Kg – 0.106s at 8.4v) for all surface
• Servo arms: Pilot-Rc 1,2″ Aluminium arms (included with Pilot-RC servos)

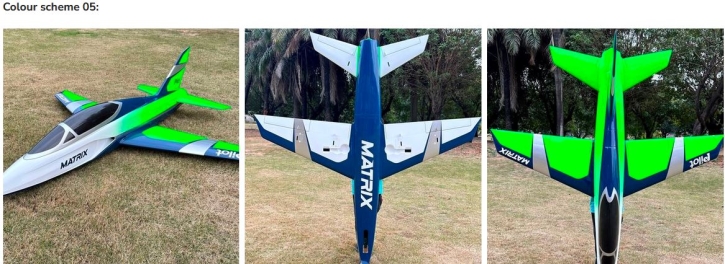

Color scheme 05:
