XFly Alpha 80mm EDF Jet Grau PNP
Produktbeschreibung
XFly Alpha 80mm EDF Jet Grau PNP
The XFly Alpha 80mm EDF jet is an extra scale and feature-rich model. It is packed full of scale details including molded-in panel lines, simulated antenna, clear canopy, removable gun pod and more. Featuring the functional LED navigation and landing lights, operational flaps, full-flying horizontal stabs, sequenced gear doors and scale retractable CNC metal landing gears, the XFly Alpha jet can take your scale-like flying experience to another level!
The stock power system includes high-efficient 12-blade 80mm fan, 6S-compatible brushless inrunner motor and 100A ESC that delivers top speed, vertical performamce and turbine-like sound with 6S Lipo battery. Integrated wing connectors and glueless design facilitate fast and easy assembly - only 8 screws needed to get the Alpha jet almost ready to fly. To cater to different aesthetic needs, a military scheme and a demonstration scheme are available for your choice.
All details and features add up to deliver flying experience of a scale advanced jet trainer, and make your pilot jet dream come true!
Features:
• Scale outline and two iconic color schemes, scale features throughout the airframe
• Scale retractable CNC shock-absorbing metal landing gears with sequenced gear doors
• Factory-installed 6 bright LED navigation and landing lights, plus operational flaps and full-flying horizontal stabs
• High-efficient 12-blade 80mm fan, 6S-compatible brushless inrunner motor and 100A ESC

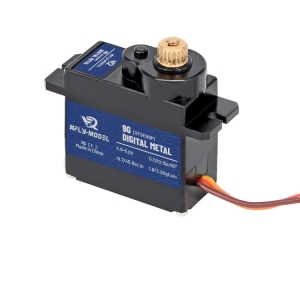

• Digital metal-geared servos on all flying surfaces and ball-link equipped linkages
• Integrated wing connectors for easy installation or removal of main wing
• Fast and easy assembly – no glue required
• Latch-type top hatch with clear caonpy, cockpit detail and pilot figure
• Large battery tray allows for 6S 4000-5000mAh LiPo battery for increased flight times
Wingspan | 970mm/38.2in |
Overall length | 1250mm/49.2in |
Flying weight | 2850g |
Motor size | 3280-KV2200 |
ESC | 100A |
Servo | 13g servo*3, 9g servo*5, 25g servo*1 |
Radio | 6 channel |
CG | 155mm from the leading edge |
Wing load | 134g/dm² |
Wing area | 21.2dm² |
Recommended battery | 22.2V 4000-5000mAh |
Approx flying duration | 5 mins |
Assembly time | 10 mins |
Skill level | Intermediate |
Age level | 14 years + |
Flap | Yes |
LED | Yes |
Retract | Yes |
Landing gear | Retractable CNC shock-absorbing metal landing gears with sequenced gear doors |
EDF size | Xfly 80mm EDF 12-blade |
