Xfly-Model T-7A Red Hawk 80mm RC EDF Jet PNP

549,00 EUR

inkl. 19 % USt zzgl. Versandkosten


Gewicht 26 kg

Lieferzeit 2-3 Tage

Verfügbar!

Verfügbar!



XFly-Model

Art.Nr. Xfly_T-7A_RedHawk


  Mehr Details   Downloads   XFly-Model

Produktbeschreibung

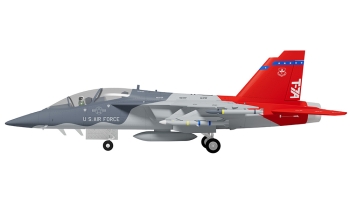

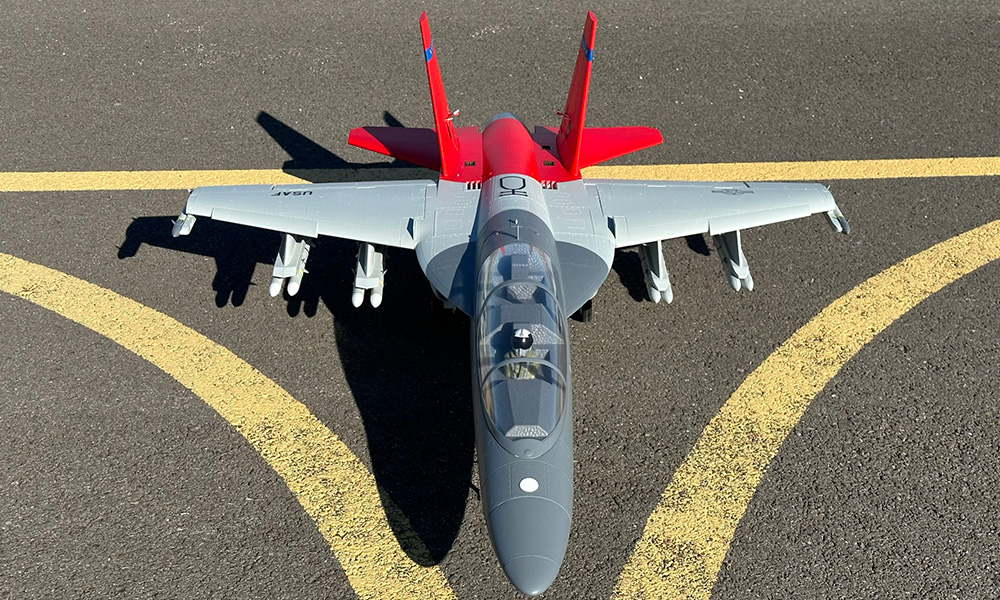

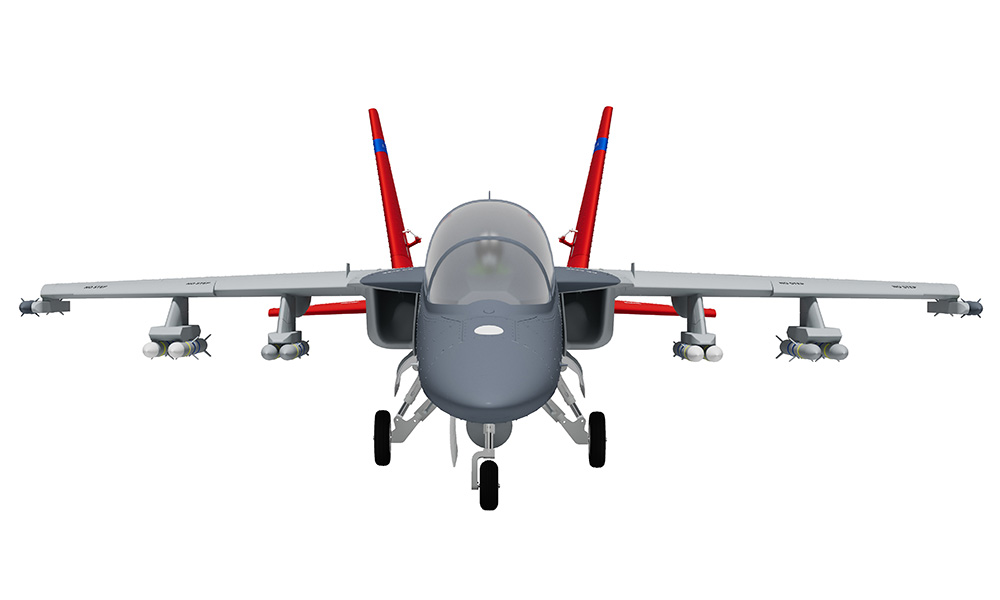

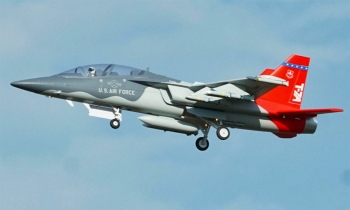

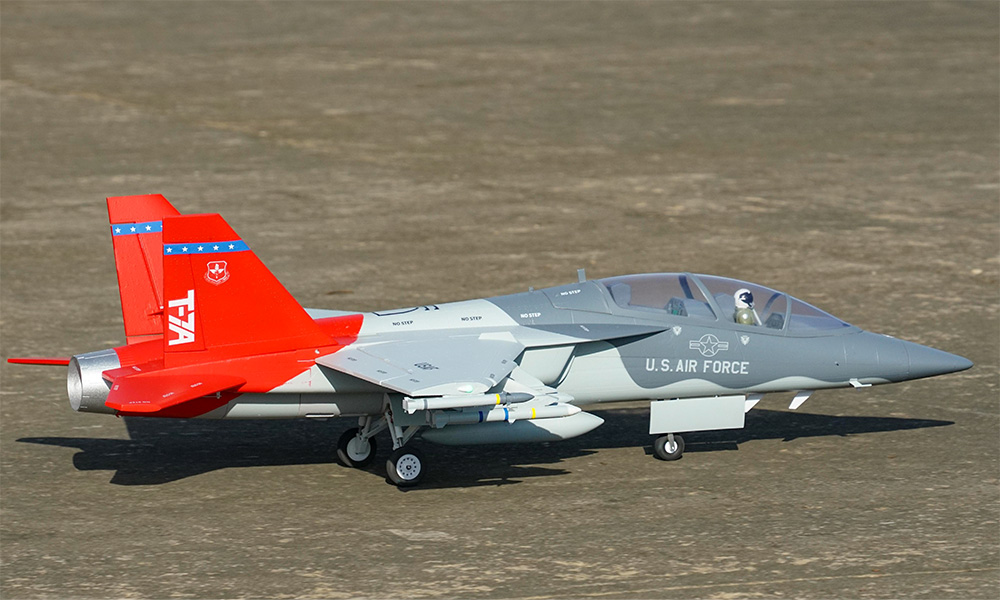

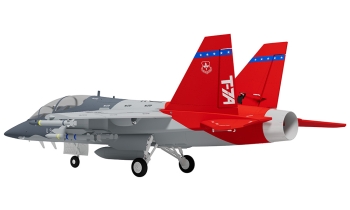

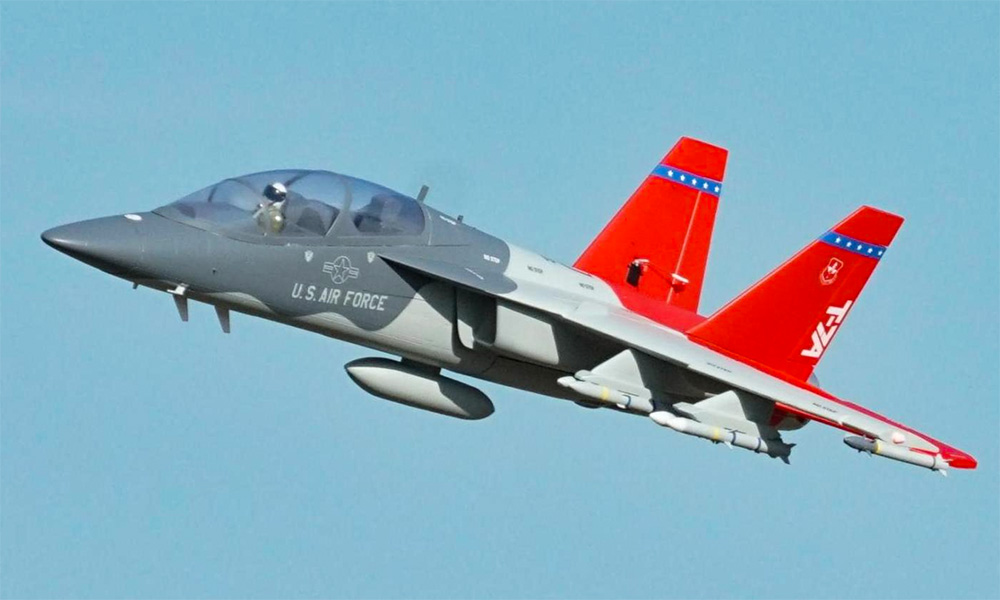

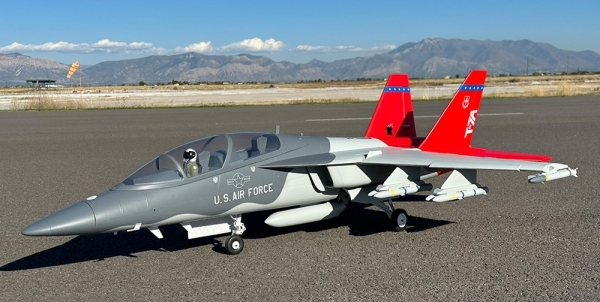

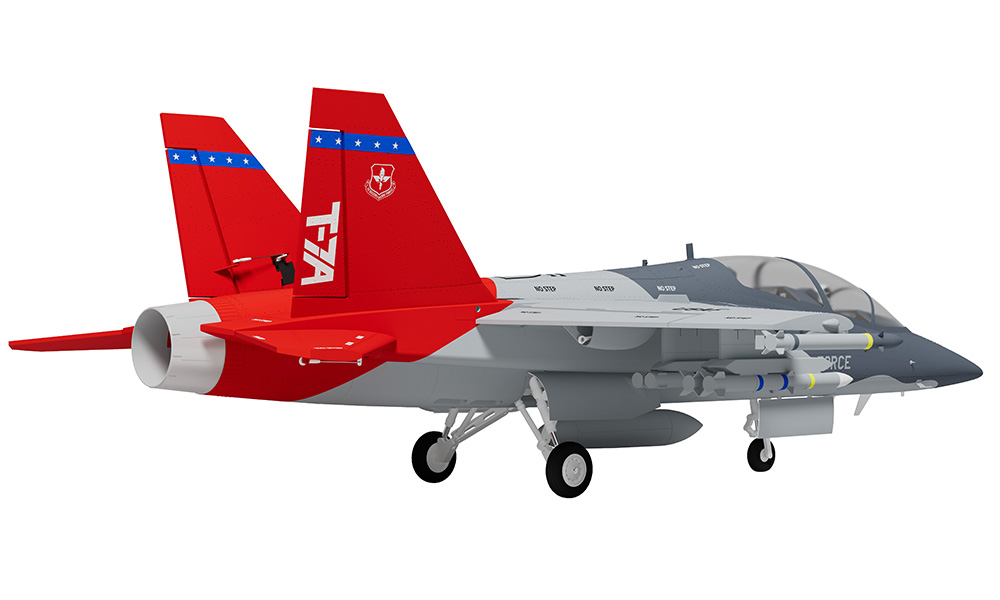

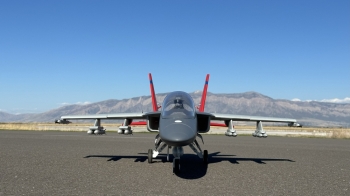

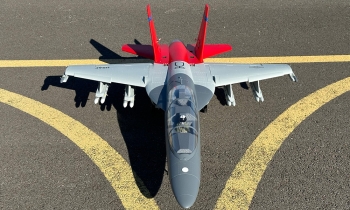

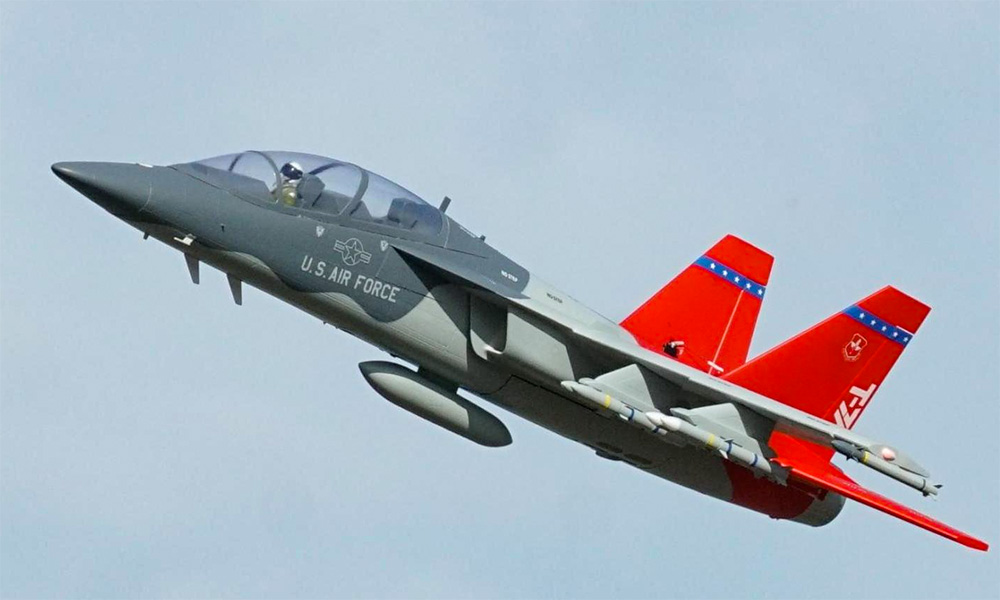

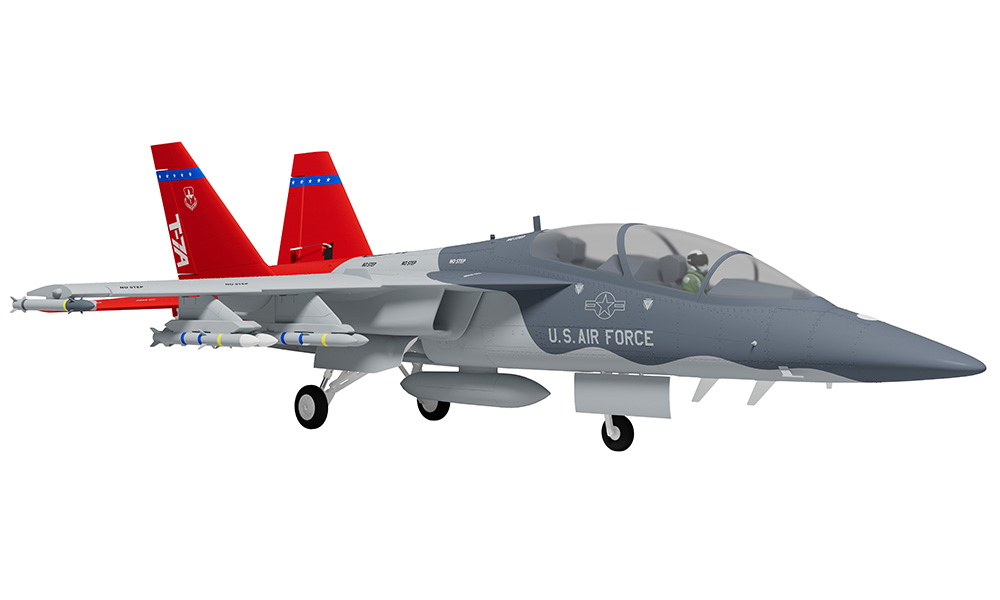

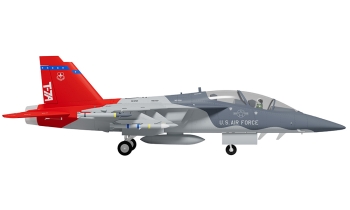

Xfly-Model T-7A Red Hawk 80mm RC EDF Jet PNP

To meet the needs of a wider variety of experienced pilots, XFly Model scaled up the T-7A 64mm EDF jet to make an 80mm version with the same care and attention to appearance and performance. The T-7A 80mm EDF jet is packed full of scale details including molded-in panel lines, simulated antenna, pitot tube, clear canopy, removable missiles plus drop tank and more. Featuring the functional LED navigation and landing lights, full-flying horizontal stabs, sequenced gear doors, scale retractable CNC metal landing gears and operational flaperon setting, this larger version can bring you unexpected scale-like flying experience!

With a 6S Lipo battery, the high-power 80mm EDF with 12-blade fan, 6S-compatible brushless inrunner motor and 100A ESC deliver fantastic top speed and vertical performamce plus amazing turbine-like sound. With stability it's a scale jet that flies smooth and handles like a sport jet. Integrated wing connectors and glueless design facilitate fast and easy assembly, so you can get the 80mm T-7A airborne in less than one hour.

Feature:
  • 6 operable channels (Aileron, Elevator, Throttle, Rudder, Retracts, Flaps)
  • Scale replica of the iconic aircraft flown by the U.S. Air Force for training and other missions
  • "Galaxy-X8" 80mm 12-blade EDF system with 6S-compatible high-RPM brushless inrunner motor and 100A ESC deliver fantastic performance with virtually instantaneous throttle response

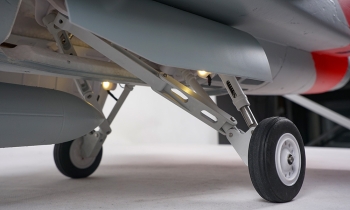

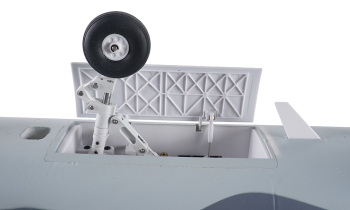

  • Scale retractable shock-absorbing metal landing gears with sequenced gear doors

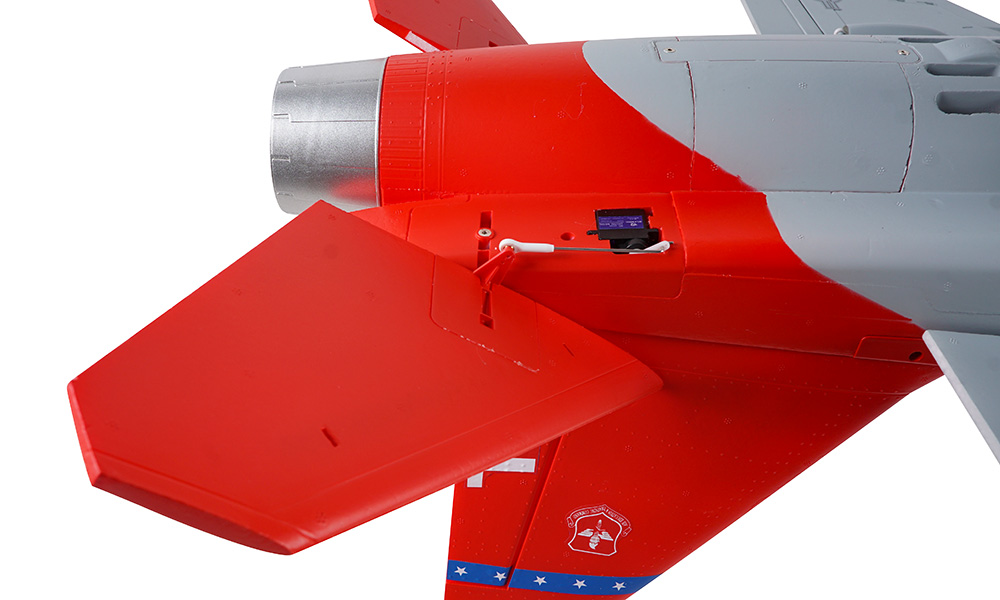

  • Factory-installed 4 bright LED navigation and landing lights, full-flying horizontal stabs plus operational flaperon setting

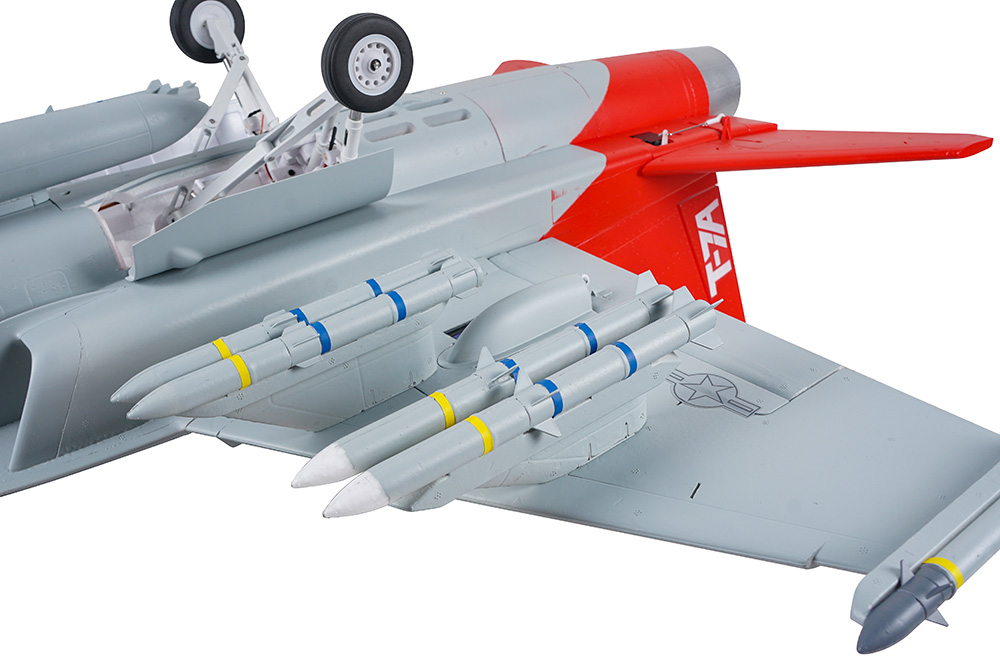

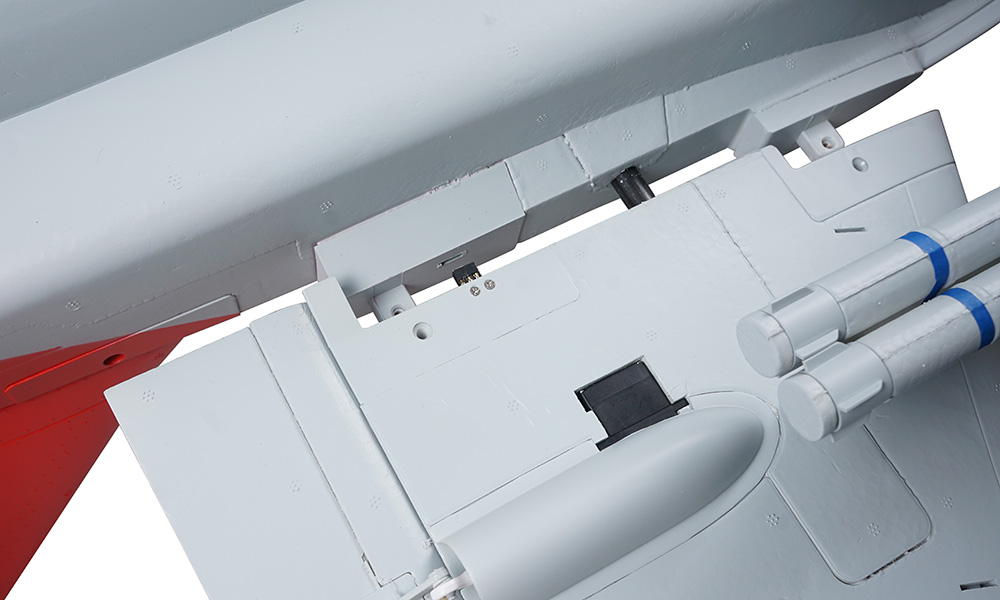

  • Removable missiles and drop tank for optional use
  • Integrated wing connectors for easy installation or removal of main wings
  • Latch-type top hatch with clear canopy, cockpit detail and pilot figure

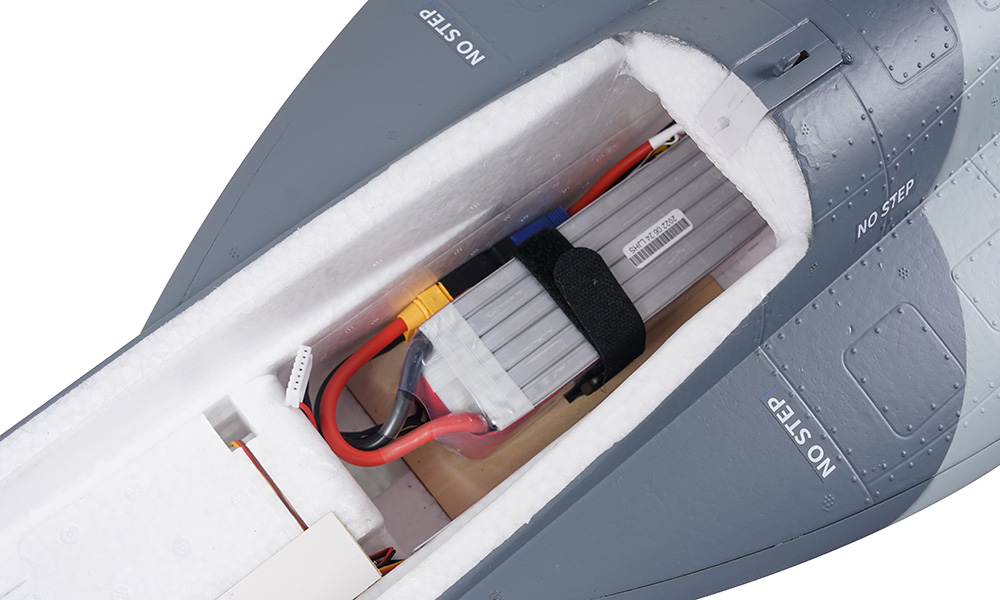

  • Large battery tray allows for 6S 4000-7000mAh LiPo battery for increased flight times
  • Fast and easy assembly – no glue required
  • Constructed of durable EPO flex foam
Package Include:
  • Airplane (most components preinstalled, some assembly required)
  • Pilot figure
  • User manual
Requires:
  • 6 channel transmitter and receiver (not included)
  • 6S Li-Po battery balance charger (not included)
  • Recommded 6S 4000~7000mAh 40C Li-Po battery (not included)
PNP: Receiver Ready



This packaging option indicates what comes included and does not mean a completely assembled item. Most onboard electronic components are pre-assembled out of the box though some assembly is still required. This packaging option does not include the radio system, battery or charger, unless noted otherwise.


What's the difference between RTF, PNP, and ARF?

The main difference is what is included in the package. Since there are no set parameters for packaging options in this hobby, different manufacturers may vary their definitions of what is included.

ARF indicates that all the foam pieces along with the crucial components of aesthetic appearance are included in the package. Some on-board electronics may be included with an ARF such as the electric retracts and will be noted on the specifications of the model. Note that this packaging option is recommended for advanced individuals with knowledge in customizing their onboard electronic components or for those not intending to fly this model.

PNP indicates that all the foam pieces along with the crucial components of aesthetic appearance and electronic components are included with the exception of the battery, balance charger, and radio system (transmitter and receiver). Most on-board electronics are pre-installed by the manufacturer. Note that this packaging option is recommended for those who already own a radio system, battery and balance charger.

RTF includes all the foam pieces along with the crucial components of aesthetic appearance, electronic components, battery, balance charger and radio system unless noted otherwise. Most on-board electronics are pre-installed by the manufacturer. Note that this packaging option is recommended for beginners or first-time pilots. Be aware of balance charger accessories that are not included (wall adapters usually sold separately). Advanced models with the RTF option may or may not come with a battery or charger. Please read the ‘Package Includes’ area carefully under the item’s for clarification of what is included with the package.

Specification:
Wingspan 975mm (38.4 in)
Length 1360mm (53.5 in)
Wing Load 146g/dm2
Wing Area 21.5dm2
Flying Weight Approx 3150g (6.9 lb)
CG (Center of Gravity) 60mm from the leading edge
Drive System 3280-KV2200 inrunner brushless motor
EDF Diameter 80mm (12-blade impeller) Galaxy X-8
Servo Five 13g + five 9g
Retract System Servoless metal retracts w/ trailing link suspension struts
ESC Hobbywing 100A w/ 5A UBEC (EC5 battery connector)
Recommended Battery (Not Included) 22.2V 4000-7000mAh ≥35C Li-Po (If using battery ≥100C, please use 120A ESC)

Downloads

Datei Dateigröße
Manual-XFly+T-7A+80mm+EDF+Jet.pdf  (18.66 MB) 18.66 MB
