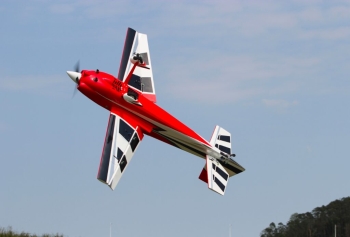

Pilot-RC Edge 540 V3 – 103″ (2.63m) Farbschema 01

Farbschema 01


Pilot-RC already surprised everyone with a new level of precision and with our extremely popular ,ExtraNG ,Slick . We have now taken all these great features and grown them into our new EDGE V3.

The Pilot-RC EDGE 540 V3 , as well as looking great and offering color schemes designed by legendary Italian designer Mirco Pecorari at Aircraft Studio Design in 01 color scheme and Ryu Sintuphrom signature 02 color scheme both are great design color look great as usual

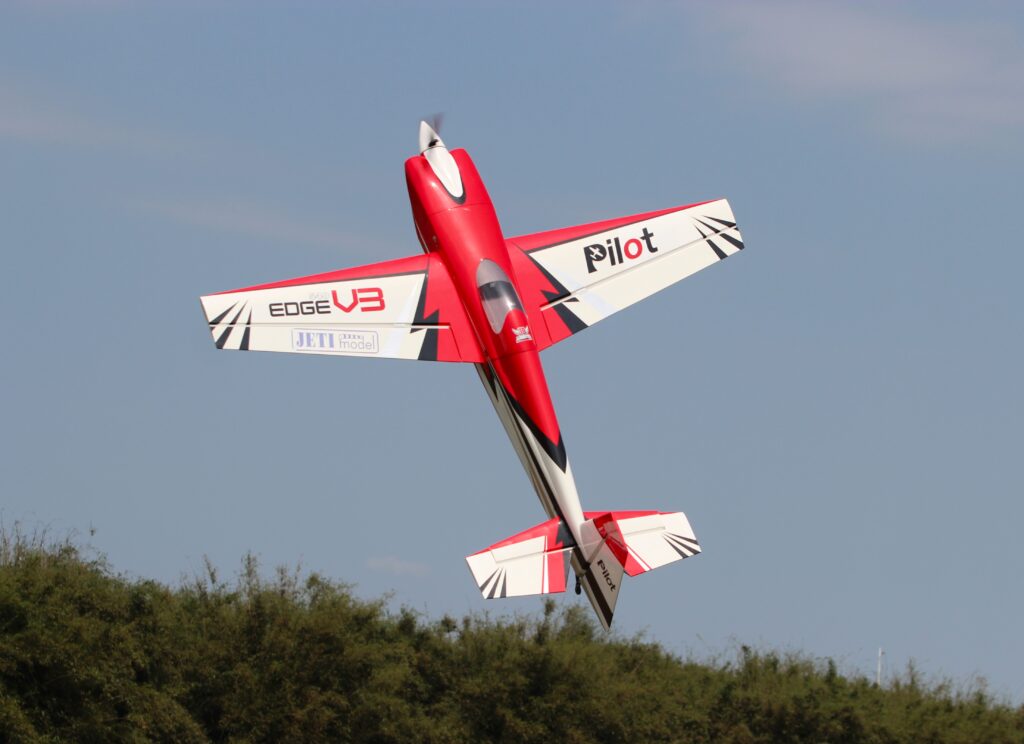

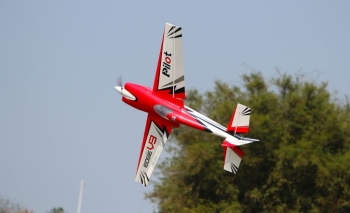

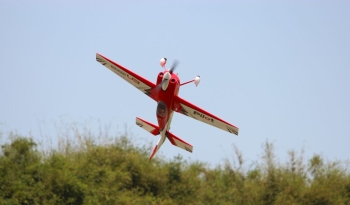

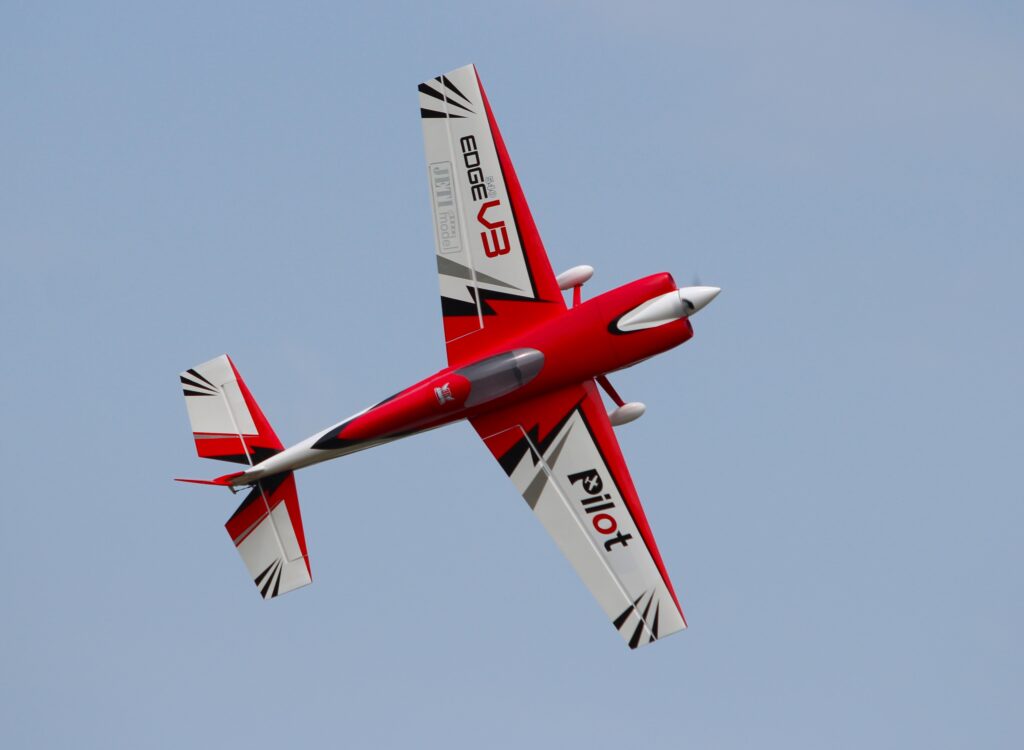

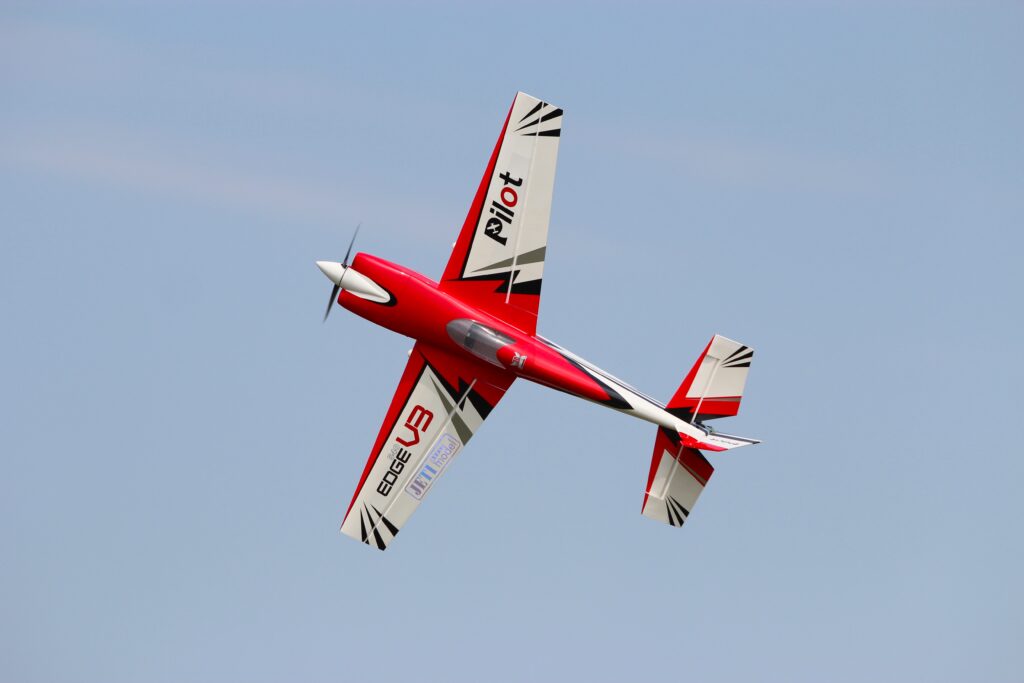

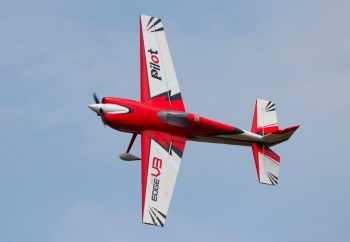

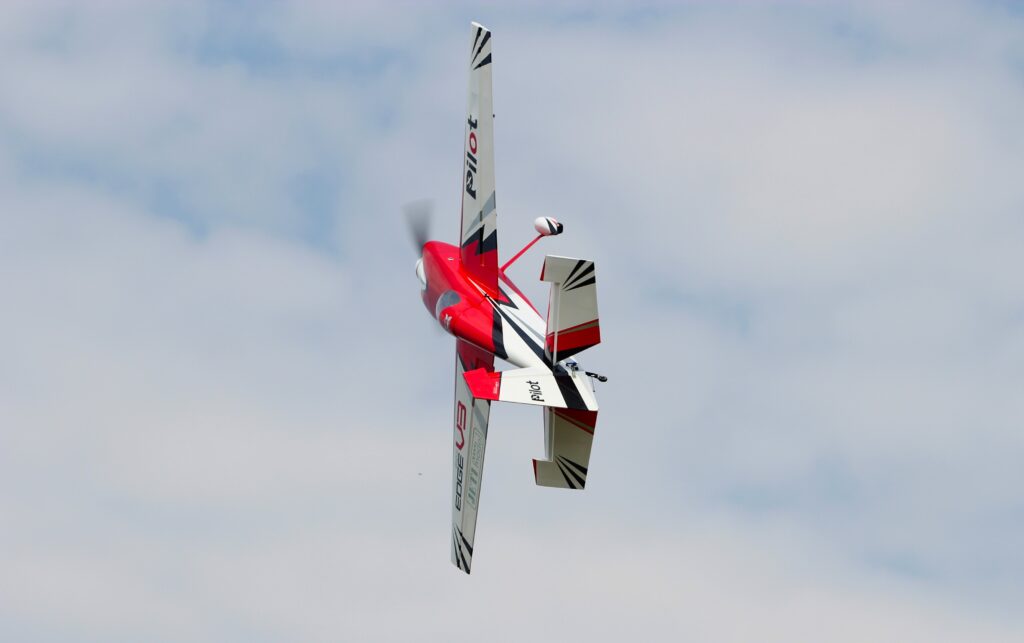

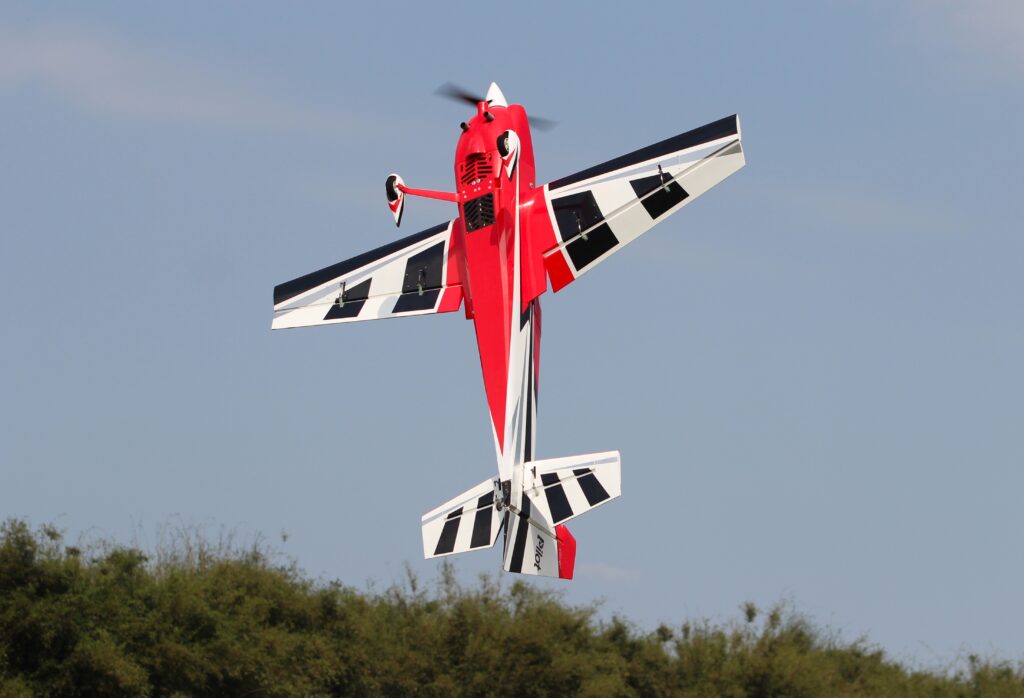

Pilot-RC Edge 540 V3 120cc Designed by the design team of Pilot-RC with high experience with rc airframe , the Edge 540 V3 120cc has the modern aesthetics of a full-size V3 EDGE. outstanding performance capabilities. The design is a full base on the Edge 540 V3 which has a back of fueslage unique design and one of the best shape EDGE 540 ever, not only modern looking but also has a great aerodynamic in the sky and, ensuring an authentic, the Edge 540 V3 120cc is a true and high performer. and is outstanding in a variety of flying styles Edge It’s a friendly 3D aircraft that is specially easy to get low and slow, but actually No matter where you are in the 3D style, high-energy XA flight or precision flying, Edge 540 V3 provides an impressive characteristic every expectation to pilot.

Specifications:

FEATURES:

NEW! Hybrid construction from wood and composite materials for specially reinforced fuselage and wings.

NEW! Patented quick assembly system for wings, stabilizer and SFG

NEW! Patented quick assembly system for canopy.

Genuine German Oracover (Ultracote) covering

Highly prefabricated, experienced builders can have air ready in under a day

Pre-installed hinges (glued and pinned)

Internally mounted cowling – so no visible external screws exposed (two exposed screws underneath for easy mounting)

Removable wings and stabs

Laser engraved motor mounting position

Easy canister installation due to open construction

Pull push system for Rudder servo

Included hardware:

Complete air frame with all basic accessories (such as carbon fibre main undercarriage, tail-gear assembly and wing-tubes as well as fibreglass control horns and wheel pants)

Pre-installed hinges and pre-mounted canopy

Fuel tank and fuel tubing pre-prepared, fuel dot and breather valve

Wheels, axels and wheel pants

Pre-prepared pull-pull wires and pushrods with ball links

Matching carbon spinner,5″

Required hardware:

Motor: 80-120cc or equivalent electric

Servos: 7-8 high torque (minimum 20kg) plus throttle // Uses x2 per aileron, x1 per elevator and x1 or x2 on rudder

Also requires all the usual accessories such as transmitter, receiver, propeller, batteries, powerbox, extension leads and possibly other small accessories.


Build information

COWL SIZE:

A: 355mm – B: 332mm – C: 345mm – D: 356mm

EXHAUST TUNNEL SIZE:

A: 691mm – B: 117mm – C: 691mm – D: 120mm – E: 172mm – F: 194mm

RUDDER HORNS AND PULL PULL LOCATION:

Only direct drive available. A: 15mm – D: 53mm – E: 8.5mm

Extension wire lengths:

Throttle:
35cm

Each aileron:
25cm + 75cm
(nearest servo and furthest servo – to reach receiver direct)

Each elevator:
150cm

Rudder:
130cm
(when using direct – if installing pull pull, no required extension)

CENTER OF GRAVITY:

212mm
Measured back from leading edge of the wing at the fuselage.

You will find a laser engraved C.G. emblem on the inside of the fuselage, located close to the wing tube, which also shows the exact location for Center of Gravity.
