KingTech K210G4+
Produktbeschreibung

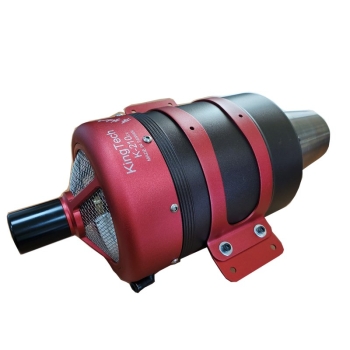

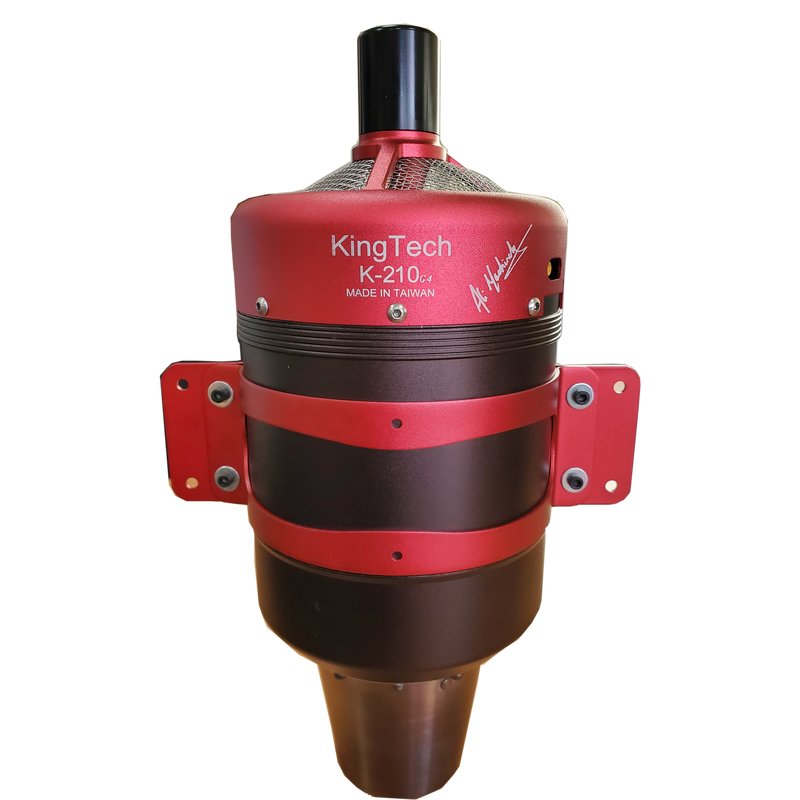

KingTech K210G4+
New G4 fourth generation
The G4 turbines now have a KT-Bus system, only one cable to the turbine via XT30 connector, integrated fod screen, brushless starter, new features, app * for Android and IOS, ECU mainboard, all parameters and timers integrated in the RPM sensor in the turbine.
Data relay module (DRM) integrated in the turbine, DRM transmits data, signals and power distribution, bluetooth, USB connection for upgrades and later planned features.
Specifications:
Diameter: 112.6 mm
Length: 280 mm
Weight: 1740g
RPM Range: up to 33,000-120,000RPM
Thrust: 21 kg @ max RPM ( 46.3 lbs at max RPM)
EGT: 650°C max
Fuel consumption: 590 g / min ( 20.8 oz / min )
Fuel: Diesel, Jet A1, Kerosene
Lubrication: 5%
