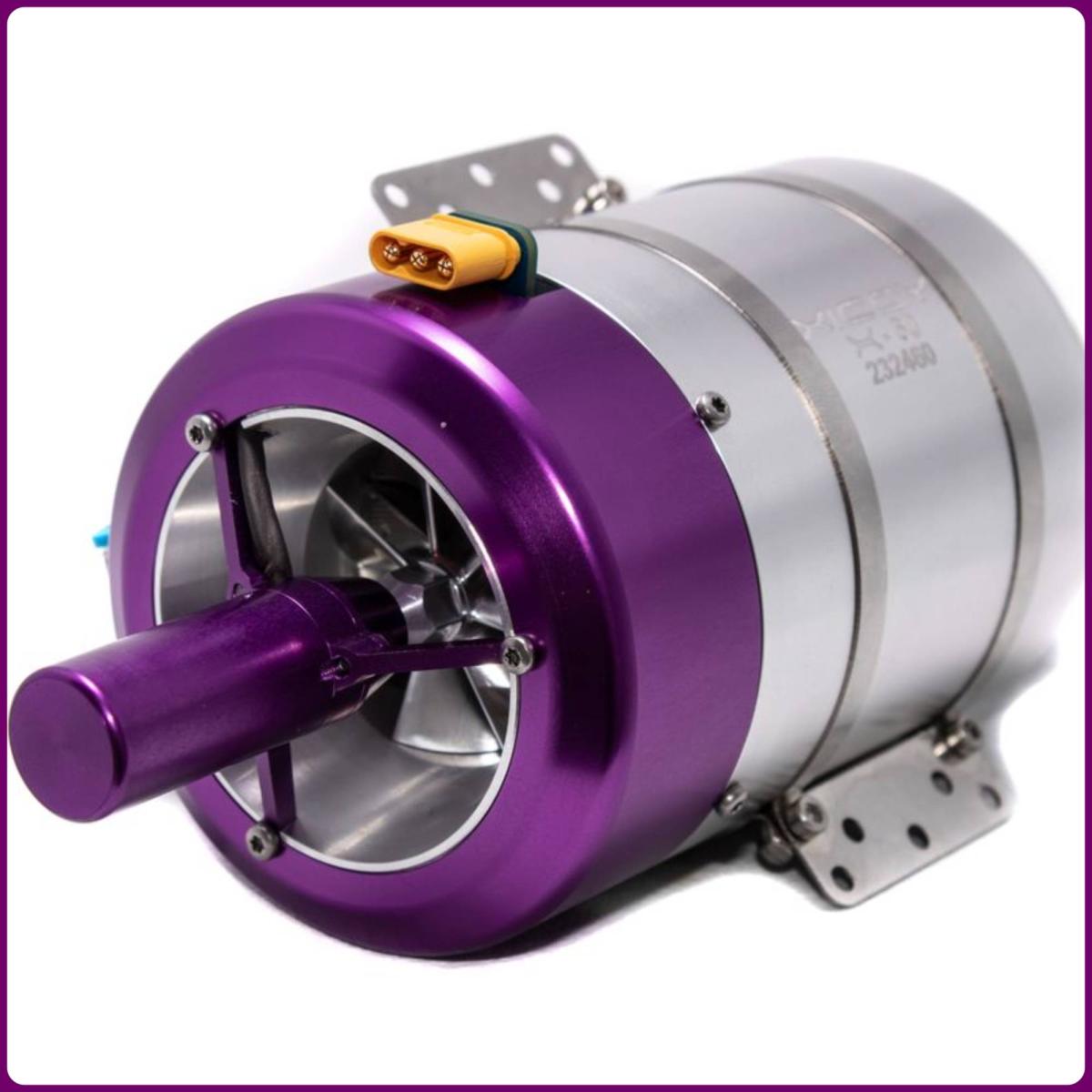

Aeromodel engine X60 Compact version

Name: Aeromodel engine X60 Compact version
Brand: XFly-Model
SKU: XI-X60C
Price: 2069 EUR

2.069,00 EUR

inkl. 19 % USt zzgl. Versandkosten

Gewicht 0,3 kg

Lieferzeit auf Anfrage

Verfügbar!

Aeromodel engine X60 Compact version

XFly-Model

Art.Nr. XI-X60C

Mehr Details Downloads XFly-Model

Produktbeschreibung

Aeromodel engine X60 Compact version

Aufgrund der hohen Nachfrage kann die Lieferzeit stark varieren, bitte kontaktieren sie uns für mehr Details.

Sharing several parts with the X45, this engine can be described a "fatter" sister of the X45. Featuring similar total lenght , but 8mm more diameter and only 55 gram more weight, it packs a 33% more power.

The X60, as all Xicoy engines, push the limit well beyond our competitors, raising the power to 60N, being much smaller and lighter than its direct competitor.

Thanks to the FlexThrust technology, the X60 can be used in all aeromodels designed for engines from 30 to 60N thrust, greatly improving the choices when looking for your next plane!

As with all Xicoy Engines our purpose designed X60 electronics offers an industry leading simple, lightweight installation. One of The biggest hurdles in Turbine Design is Specific Fuel Consumption (SPFC), the X60 has the lowest TSFC in its class.

Specifications
Thrust:	Continuously adjustable from 35 to 60N (13,5 Lbf)
Size:	68mm diameter, 159mm long
Weight:	451g ( 1 lb) engine only, 526g ( 1,16 lb) total installed weight except battery
Rpm Range:	55,000 ... 190.000 RPM
Idle Thrust:	2.8N (0,3Kg/0,6Lbf)
Fuel:	Kerosene + 4% oil. Fuels containing Biodiesel not allowed.
Fuel consumption:	200g/minute at 60N. (240ml/min)
Starter motor:	High speed brush-less
Fuel pump:	Digitally controlled brush-less pump
Telemetry:	Jeti/Futaba/MPX/Core/Hott/FrSky (optional module)
Service interval:	25 hours
Reccomended battery:	2s Lipo/2200mAh reccomended. (3s Life compatible, not recommended). Battery not included
Other:	Built in sensors for ambient temperature and atmospheric pressure to automatically adjust the engine performance

Downloads

Datei	Dateigröße
XicoyTurbojetManual.pdf (4.16 MB)	4.16 MB
Product_safety_Information_Turbines_Xicoy.pdf (2.23 MB)	2.23 MB
Produktsicherheitshinweis_Modellturbinen_Xicoy.pdf (2.23 MB)	2.23 MB
