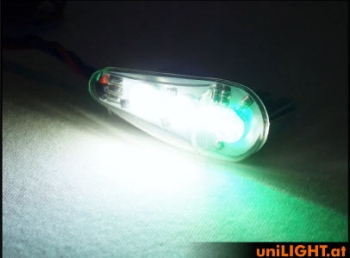

16W Navigation & Strobe, 18mm RED/WHITE
the big DUAL18mm - perfectly suitable for standard wing aircrafts >2.5m wingspan with very good stobe power
In delivery state, the profiled polycarbonate cap is simply attached. It can be varnished separately. It's highly transparent and unbreakable. The assembly of the lamp is astonishingly easy: With a simple surface mount, all you need is a slit of 3x36mm. In this way, the luminaire can be also mounted on smaller wing tips or fuselage. If desired, you can recess the luminaire up to 4mm, thus achieving an even smaller construction. The cap must be glued after the final assembly.
The luminaire is ready to use for operation with 2S LiPo (ca. 8V). With 3S (12V), the enclosed resistor has to be added. Please note that high-performance LEDs can get very hot, up to 70°C is quite normal. These lamps with heatsink cases are suitable for continuous operation if an air flow (during flight) is possible. If this is not the case, the duty cycle of 5-10 minutes should not be exceeded. Please check operation temperatures after installation.
Technical Data
Electricity: 4W RED/GREEN und 12W WHITE reference power, 8(12)V
Beam angle: >160°
Light intensity: ~50 Lumen ROT, 0.35A
Light intensity: ~70 Lumen GRÜN, 0.35A
Light intensity: ~480 Lumen WEISS, 0.9A
Dimension mounting: 3x36x15mm
Dimension cap: 18x48x14mm
Overall: 18x48x27mm
Weight: 11g (without cable)
Delivery: ready to use with 1m silicone wire for 2S/8V, resistor for 3S enclosed
The reference power is a comparison value between our offered lights. It normally refers to an operating voltage of 12V/3S Lipo and is dependent on bulbs, operating mode and technology.
Pay always attention to the operating temperature, we do not assume any warranty in case of overheating.
Note: The LED lights are extremely bright! Never look directly into a LED!
