Controller and sequencer for electric landing gear LGC25L
149,00 EUR
incl. 19 % VAT excl. shipping costs
weight 2 kg
Verfügbar! - Nur noch geringe Anzahl auf Lager!
Controller and sequencer for electric landing gear LGC25L
Product.Nr. XI-LGC25L
product description

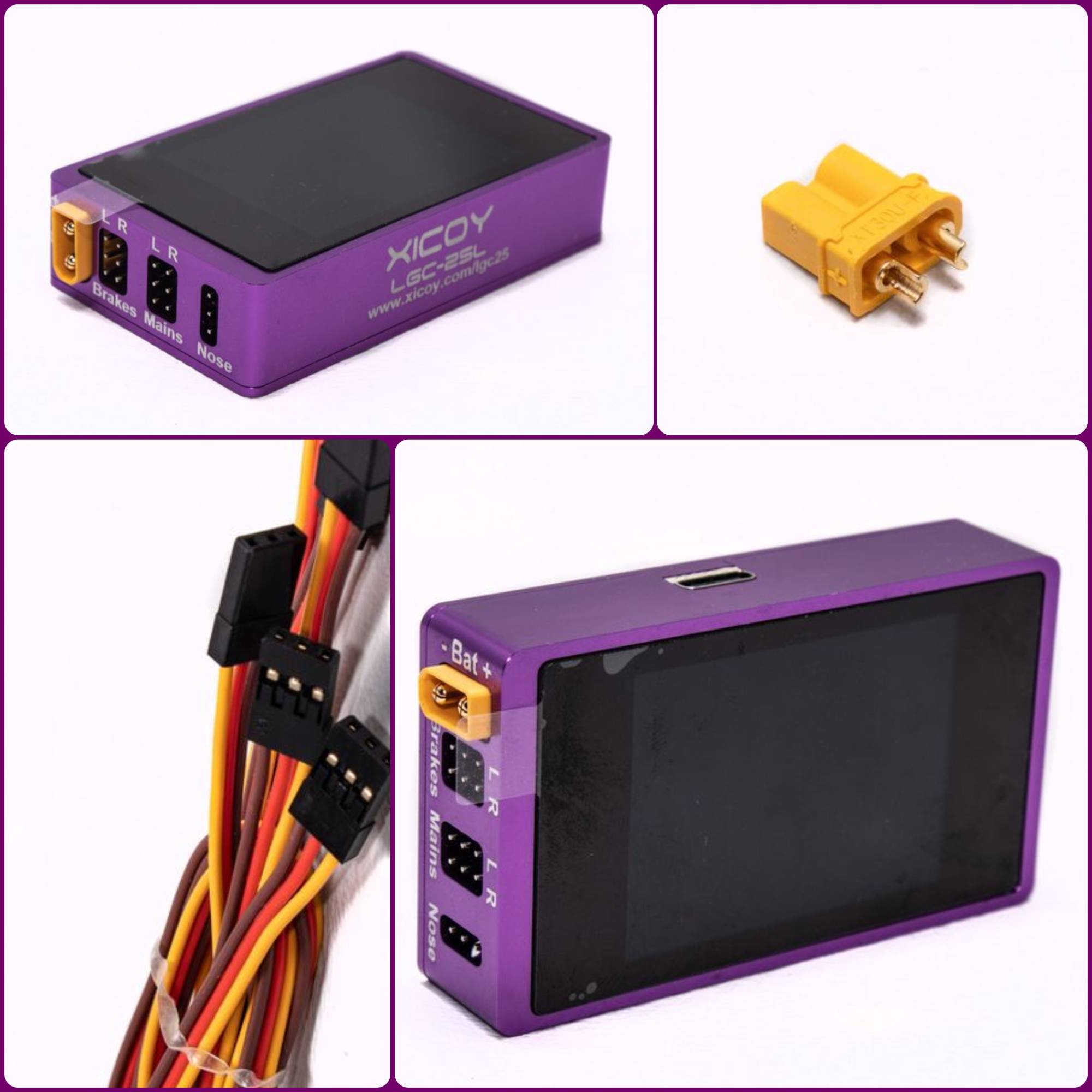

Controller and sequencer for electric landing gear LGC25L
Electronic Controller for Electric Landing Gear, Brakes and Doors
The Xicoy landing gear controller is designed to provide precise, reliable and fully programmable control of electric retracts, brakes and door mechanisms.
It combines high-performance motor control, advanced gyro-assisted steering, and flexible sequencing in a compact, user-friendly system.
Key Features
• Direct Motor Control
Controls 3 bidirectional electric gear motors
Supports up to 25 V / 6 A
Compatible with all common shut-off strategies:
Time-based stop
Overcurrent detection
• Advanced Electric Brake Management
Dual proportional brake channels
Linear and adjustable pulsed mode
Differential braking for ground steering
• Steering Servo Processor
Adjustable gain, direction, and center position
Servo automatically centers during retraction
Integrated gyro can assist steering and brake differential
• Door Servo Control
8 individually configurable servo outputs
Programmable endpoints for each servo
Servo speed adjustable in both directions
Resolution: 0.1 s per speed step
• 10-Step Sequencer
Fully programmable gear and door positions for every step
Independent timing for each stage (0.1 s resolution)
Allows highly precise and realistic gear-door sequencing
• Flexible RC Input Options
Single-channel or dual-channel control modes

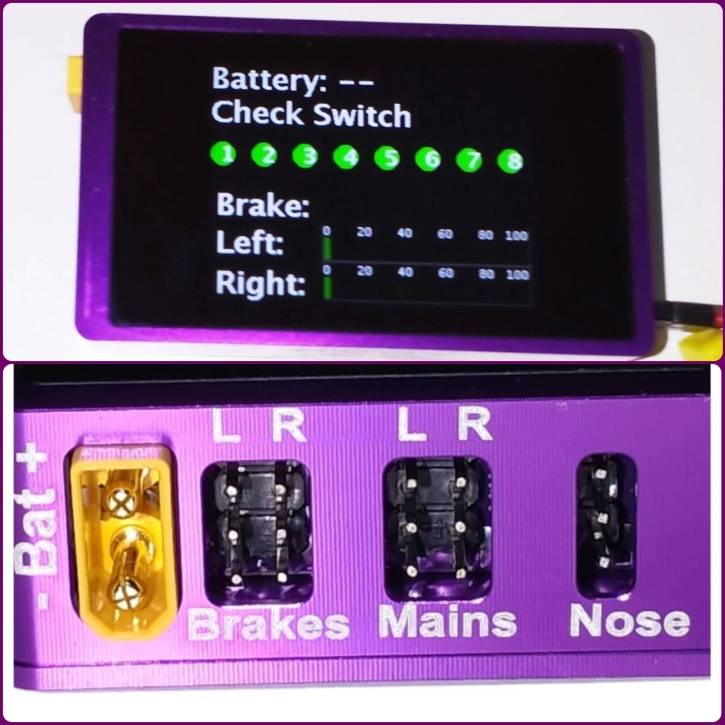

• Modern User Interface
Fully programmable via the integrated color touchscreen
USB-C port for saving settings and performing firmware updates
Compatibility
For retracts using the white Molex motor connector, please add the dedicated adapter cable set to your order.
Important Notice
Improper programming may overload and damage the retract motors.
The only official and accurate setup information is contained in the user manual.
Always consult the manufacturer of the retract system to ensure that you are using the correct configuration values for your gear.
