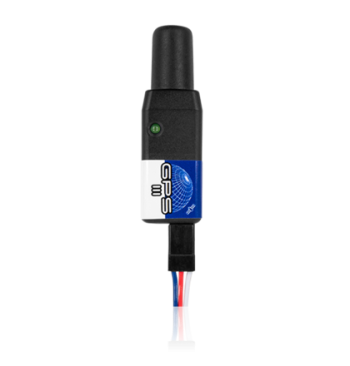

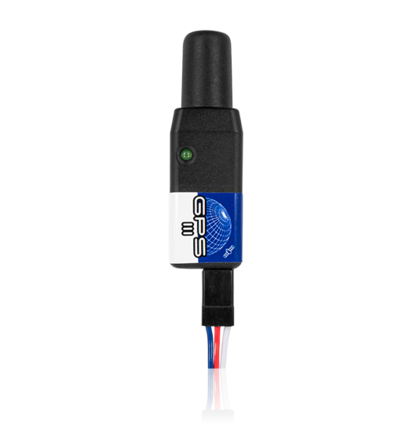

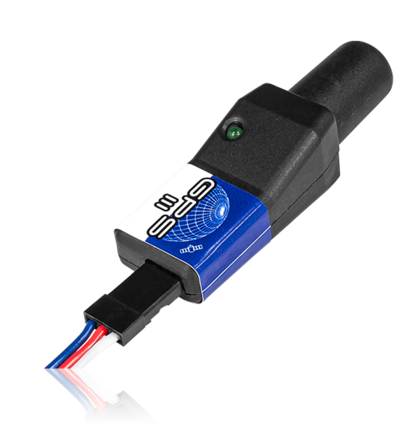

GPS III
GPS III
GPS III

GPS III

112,00 EUR

incl. 19 % VAT excl. shipping costs

weight 0,3 kg

Artikel zur Zeit nicht auf Lager!

Artikel zur Zeit nicht auf Lager!

product description

GPS III

Features

  • Latest generation of GPS
  • Helix antenna for reception regardless of flight attitude
  • Reception even under difficult conditions
  • Fast response to speed changes
  • Automatic system detection
  • LED status indicator
  • Accurate 3D speed
  • Height measurement (altimeter)
  • Distance, optionally as 2D or 3D value
  • Distance covered
  • Geo-coordinates
  • Number of satellites, measurement accuracy

  • Supports the following telemetry systems:

    PowerBox CORE P²BUS

    iGyro/Royal SRS/Mercury

    Futaba S.BUS2

    Multiplex M-Link

    Jeti EX-BUS

    Graupner HoTT



Technical Data

Operating voltage 4.0 V - 9.0 V
Current drain Power-on state max. 60 mA
Supported RC systems Royal, Mercury, iGyro 3xtra, iGyrio SRS
Dimensions 58 x 18 x 17 mm
Weight 14 g
Temperature range

-30 °C to +75 °C



Product description

The new GPS III is the result of a continuing programme of development of the GPS II, which has now been on the market for a good eight years. The software has been completely restructured, enabling us to improve the unit’s performance significantly. Amongst other new features, measured values are now transferred with greater precision.

The GPS III automatically detects the make of radio control system or PowerBox/iGyro to which it is connected, and sets up correct communication completely automatically.

Futaba users can select different slots using PowerBox Terminal. For HoTT and Multiplex systems it is possible to set up various alarms for altitude or distance.



With most systems the GPS III can display additional information, such as the number of satellites, the accuracy of the positional information and the 2D distance.

The new unit utilises the proven Helix Radial antenna introduced with the GPS II. This provides an important feature which is unique to the PowerBox GPS: it is the only unit to guarantee GPS reception in all flight attitudes.



Downloads

file file size
3525_GPSIII_de_01.pdf  (0.31 MB) 0.31 MB
3525_GPSIII_en_01.pdf  (0.31 MB) 0.31 MB
produktsicheheitshinweis_Zubehoer.pdf  (2.63 MB) 2.63 MB
product_saftey_information_accessories.pdf  (2.63 MB) 2.63 MB
