HLS6513 70kgf.cm@8.40V

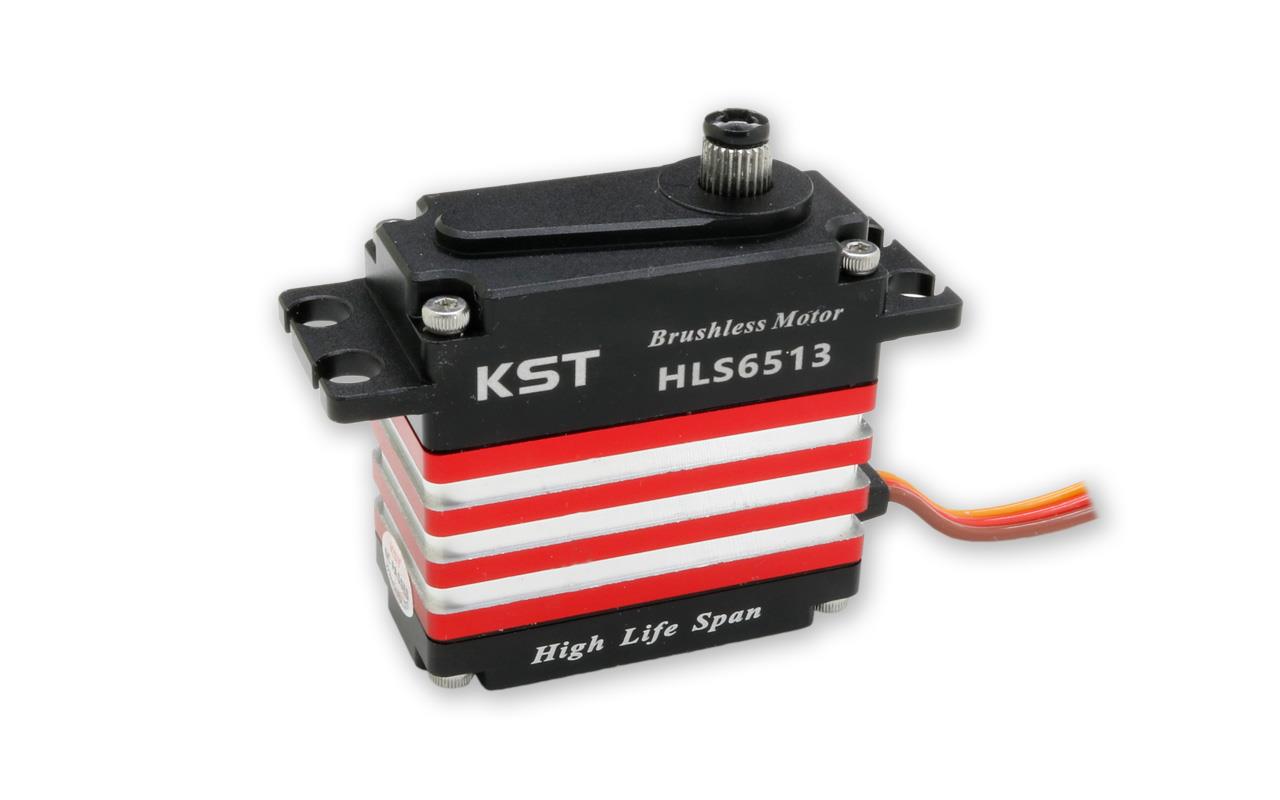

KST HLS6513 – Precision, Power, and Endurance for Jets and Large-Scale Models
Experience the full power and precision of the KST HLS6513 – a servo engineered specifically for jets and large-scale aircraft.
With extremely high torque, fast response times and uncompromising reliability, the HLS6513 delivers the control authority required for demanding flight profiles.
Whether you are competing, flying high-performance jet models, or simply want the best possible performance from your aircraft, this servo consistently delivers outstanding results.
No compromises were made in the development of the HLS6513.
A contactless Hall-effect position sensor works in combination with the HLS 6-ball-bearing gear train, providing exceptional durability and ensuring the gear system remains tight and precise over extended use.
The powerful 4-pole brushless motor delivers enormous torque while maintaining fast transit speeds – all at impressively low weight.
For advanced 3D pilots, jet enthusiasts, and all modelers who demand absolute control and endurance, the HLS6513 sets a new benchmark in high-performance servo technology.
Technical Specifications
| Parameter | Value |
|---|---|
| Operating Voltage | 6.0 – 8.4 V |
| Torque @ 6.0 V | 55.0 kgf·cm |
| Torque @ 7.4 V | 65.0 kgf·cm |
| Torque @ 8.4 V | 70.0 kgf·cm |
| Speed (60°) @ 6.0 V | 0.16 s |
| Speed (60°) @ 7.4 V | 0.13 s |
| Speed (60°) @ 8.4 V | 0.11 s |
| Width | 20.0 mm |
| Length | 40.0 mm |
| Height | 40.0 mm |
| Weight | 75 g |
| Motor Type | 4-Pole Brushless |
| Frequency Range | 1520 μs / 333 Hz, 1000–2000 μs |
| Gear Type | Steel |
| Bearing Type | 6× Ball Bearings (HLS) |
| Spline | 25T-6 |
| Servo Type | Standard |
| Electronics | Digital |
| Position Sensor | Contactless Hall-Effect |
| Waterproof | No |
| Soft Start | Programmable |
| Programmable | Yes (KST Tool #3 & #5) |
Key Features
High-voltage compatible (8.4 V HV)
High Life Span gear train with 6 ball bearings
Built for upright mounting
4-pole brushless motor for maximum torque and speed
Contactless Hall sensor for long-term precision
25T-6 spline output
Manufacturer Information
KST MEIZHOU COMPANY LIMITED
Building B, Jinhang Science and Technology Park
No. 3 Luole East Road
Meizhou Economic Development Zone
Meijiang District, Guangdong, China
https://www.kstsz.com
Country of Origin: China
