AeroJet BD-5 Scale 1/2.5 ARF PRO, Farbschema 03: RED DRAGON
AeroJet BD-5 Scale 1/2.5 ARF PRO, Farbschema 03: RED DRAGON
Product.Nr. AJ_BD5_12_color03
BD-5 in 1/2.5 scale, Airex sandwich, ARF PRO WIRED. 2,500 mm wingspan, approx. 12.5 kg dry, turbine 120–140 N. Gear, lighting, tank and cockpit factory-fitted. Colour scheme 03: RED DRAGON.
product description
AeroJet BD-5 Scale 1/2.5 ARF PRO, Farbschema 03: RED DRAGON
After the successful Viper, the BD-5 is the next turbine jet built to the KISS principle: simple to assemble, light, and with excellent flying manners. The entire airframe uses Airex sandwich construction, which keeps the all-up weight down.
Every part is factory-painted in PPG-quality paint. Tanks, battery bays, landing gear, air brakes and other scale details come pre-installed.
At a glance
- 1/2.5 scale – 2,500 mm wingspan, 1,850 mm length
- ARF PRO WIRED – all control surfaces hinged, all wiring routed
- Full Airex sandwich construction
- Fully electric scale landing gear with integrated electric brake (JP Hobby)
- Scale cockpit and installed scale lighting
- Turbine 120–140 N
- Colour scheme: RED DRAGON
The colour scheme

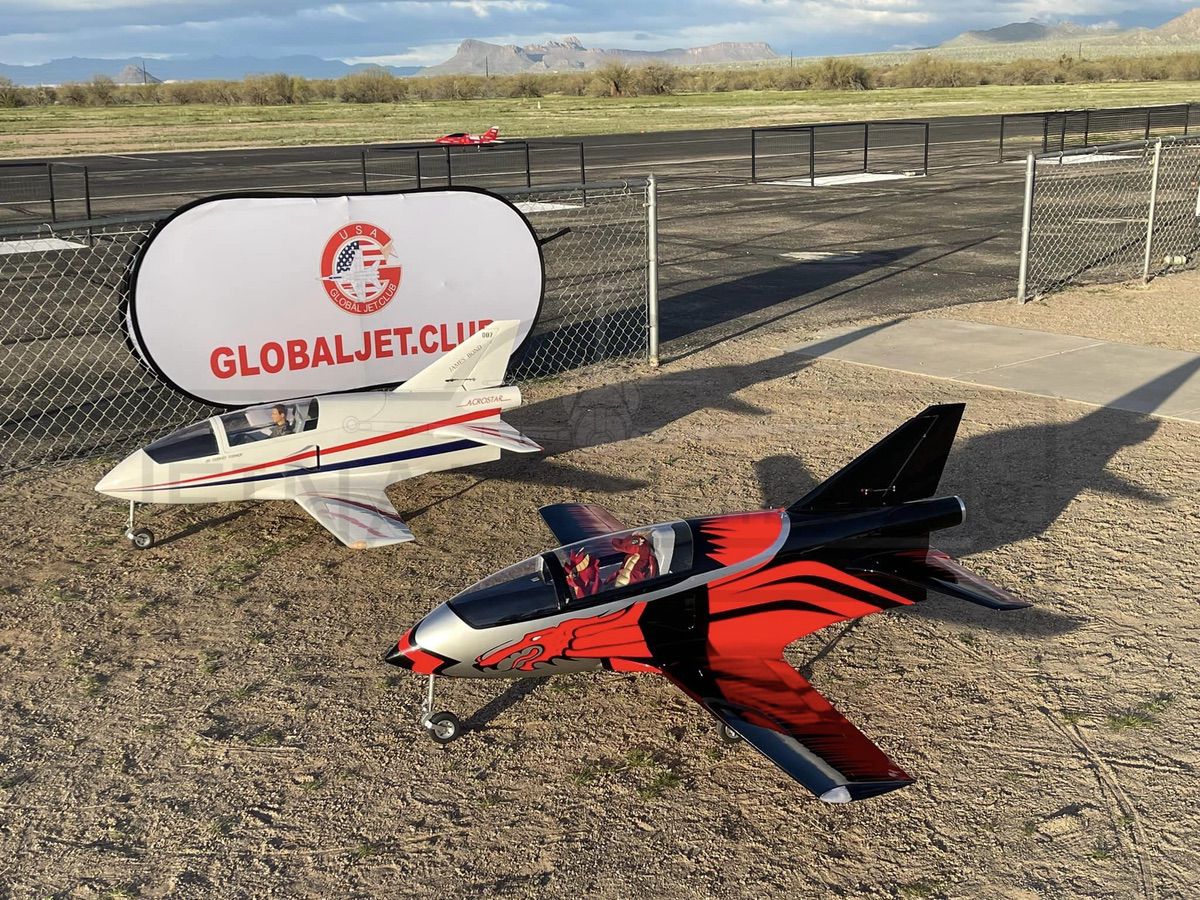

Colour scheme 03: RED DRAGON. A red-and-black scheme with a dragon motif. On the slim BD-5 airframe it looks especially compact, and the attitude stays easy to read in the air.
Factory-fitted
- JP Hobby electric landing gear with electric brakes
- Pre-installed retractable nose gear light

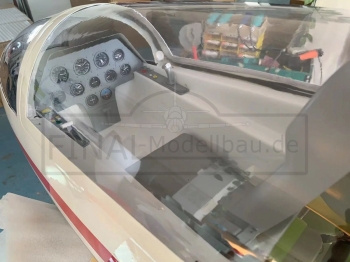

- Scale cockpit
- Scale lighting, installed and wired

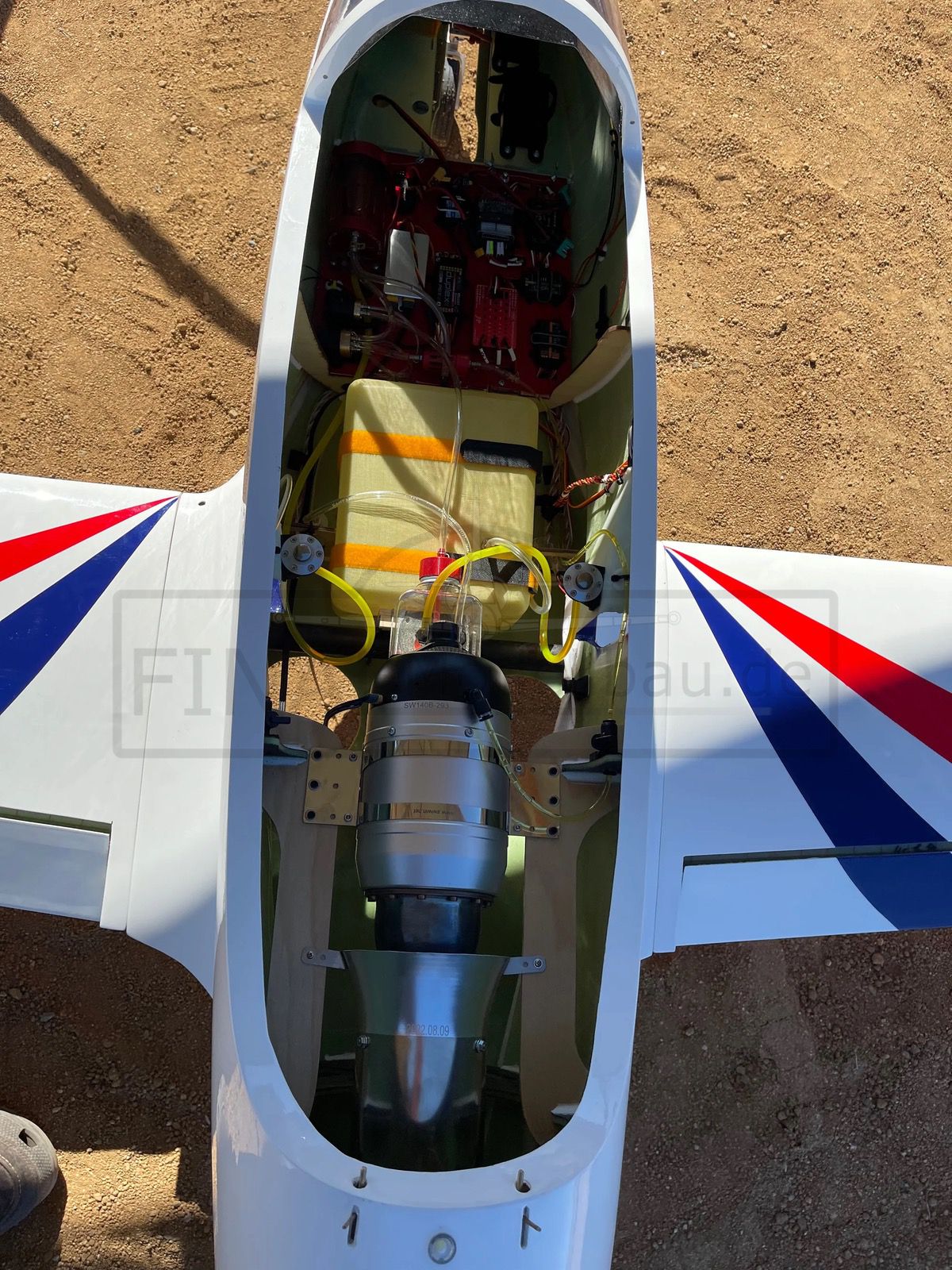

- 3 litre main tank
- Matching thrust pipe
- Hardware set
- All control surfaces hinged, all wiring routed, wing joiner fitted
Specifications
| Scale | 1/2.5 |
|---|---|
| Wingspan | 2,500 mm |
| Length | 1,850 mm |
| Dry weight | approx. 12.5 kg |
| Turbine | 120–140 N (12–14 kg thrust) |
| Main tank | 3 litres |
| Construction | Airex sandwich, PPG paint from the factory |
Control throws and centre of gravity
| Elevator | ± 20 mm |
|---|---|
| Rudder | ± 20 mm |
| Ailerons | ± 15 mm |
| Flaps, take-off | 35–40 degrees |
| Flaps, landing | 55–60 degrees |
| Centre of gravity | 10–15 mm ahead of the centre of the wing tube |
Not included

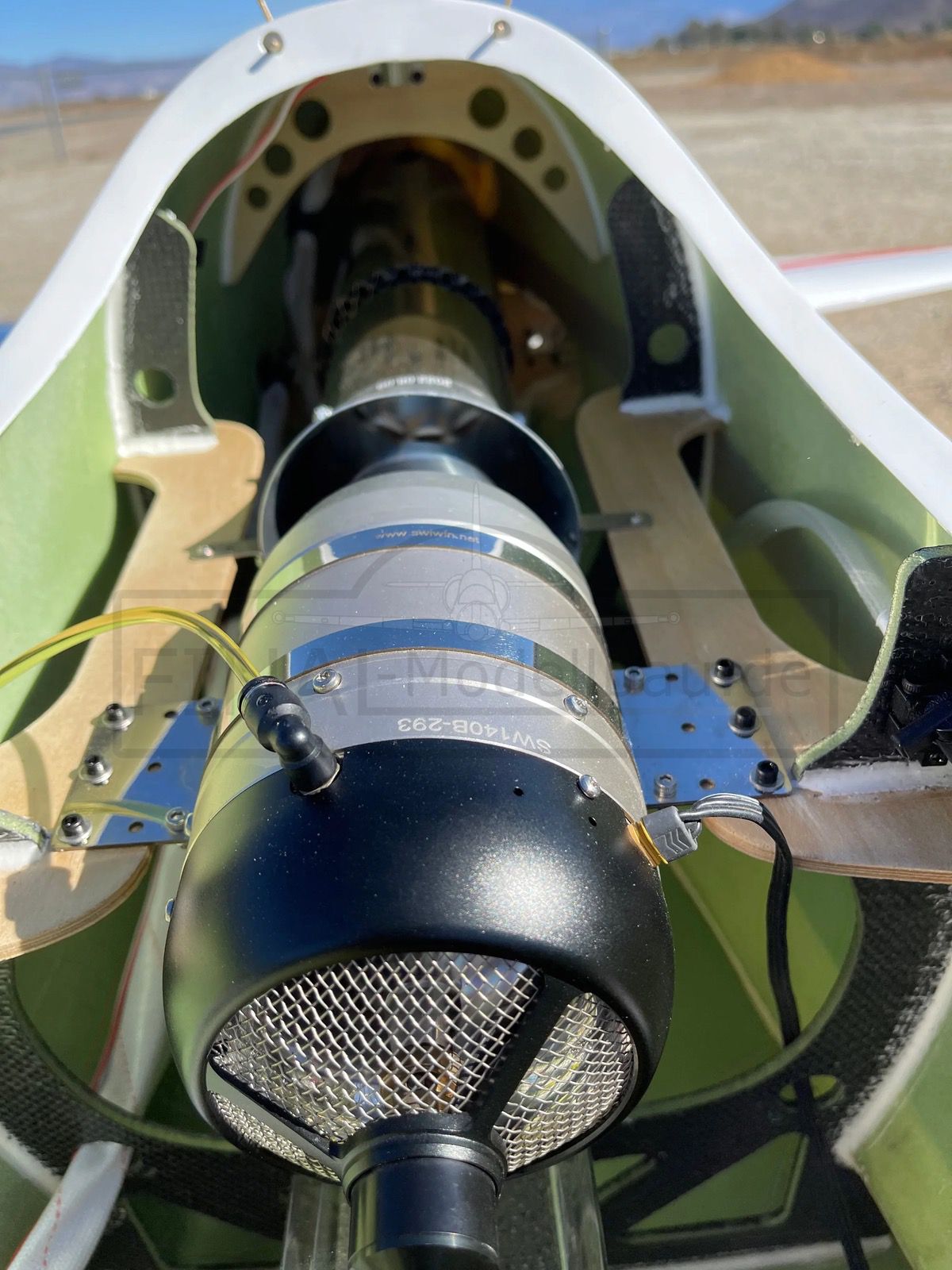

- Turbine (120–140 N) with pump and ECU
- Servos
- Radio system and receiver
- Batteries
- Fuel
More photos and a detailed build report: AeroWorld RC – AeroJet BD-5
