product description

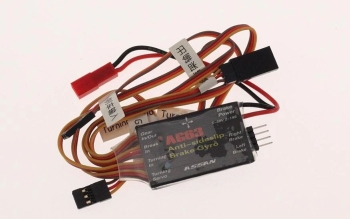

Global Aerojet Brake Gyro Controller
Specification:
- Electric Brake Input : 5v - 60 v ( 2s - 14s )
- Control Board Size : 26.5mm x 43.5mm x 5mm
- Weight: 21g

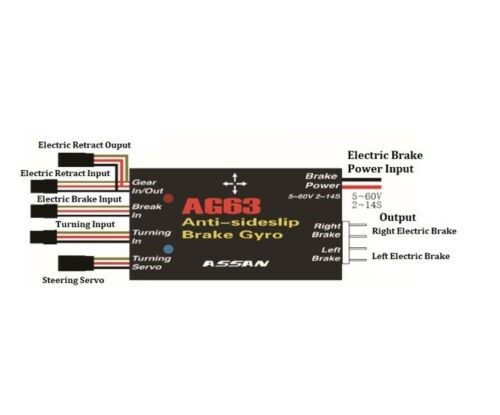

The Global Aerojet Brake Gyro Controller is designed for planes equipped with tricycle landing gear and electromagnetic brakes . The gyro stabilizes the steering and modulates both left and right brake controls digitally so that the plane would track straight during taxi, take off or landing. The anti-lock and slip control prevents uneven braking and keeps plane straight. The Gyro control also prevent cartwheeling at excessive banking angle of the plane by reducing steering input automatically. These actions reduces wear on landing gear components and tires. No more flat spots on tires, bent struts or cracked gear plates due to excessive braking and lateral loads. A must have for any jets with electric brake system. Easy to set up and operate. Just hook it up to steering servos and two main gear brakes.
Downloads
| file | file size |
|---|---|
| 20200630AerojetAG63OperatingManual.pdf (0.17 MB) | 0.17 MB |
