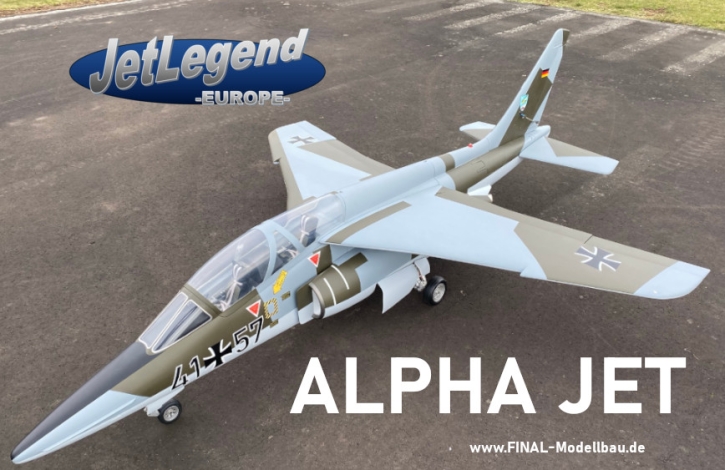

Jetlegend ALPHA JET 1/5
Jetlegend ALPHA JET 1/5
Product.Nr. JL042
Jetlegend Alpha Jet in 1/5 scale: 1,822 mm wingspan, approx. 14.15 kg dry, turbines 140–160 N, two scale speed brakes. As an ARF kit or an almost ready-to-fly PNP version.
product description
Jetlegend ALPHA JET 1/5
The Alpha Jet is now available in Jetlegend's new construction as well. The original was always a head-turner in European skies: a distinctive shape combined with fine handling made it one of the most popular jets of the eighties. A good deal of that carries over into the model. Scale cockpit, linked speed brakes, scale landing gear and integrated lighting are only part of it.
At a glance
- 1/5 scale · 1,822 mm wingspan · 2,350 mm length
- Turbines 140–160 N
- Dry weight approx. 14.15 kg
- Scale landing gear with gear doors
- Bifurcated thrust pipe
- Two scale speed brakes
- Scale lighting including landing lights
- Available as an ARF kit or as an almost ready-to-fly PNP version
ARF or PNP
| Included | ARF | PNP |
|---|---|---|
| SCALE landing gear with gear doors | ✓ | ✓ |
| Bifurcated thrust pipe | ✓ | ✓ |
| Fuel tank | ✓ | installed |
| Hardware | ✓ | ✓ |
| Two scale speed brakes | ✓ | fully installed |
| UAT (hopper tank) | – | installed |
| Scale cockpit | upgrade | included |
| Gear and doors fitted with pneumatic cylinders and hinges | upgrade | installed |
| SCALE lighting incl. landing lights | upgrade | installed |
| CENTRAL controller (lighting, door sequencer, gear safety) | upgrade | installed |
| All servos installed and linked | – | ✓ |
Optional upgrades for the ARF kit
| Scale cockpit | € 289 |
|---|---|
| Hinge and pneumatic cylinder set | € 149 |
| Fitting of landing gear and gear doors with pneumatic cylinders and hinges | € 370 |
| Fitting of SCALE lighting with controller | € 290 |
Technical data
| Scale | 1/5 |
|---|---|
| Wingspan | 1,822 mm |
| Length | 2,350 mm |
| Turbine | 140–160 N (not included) |
| Weight (dry) | approx. 14.15 kg |
| Servos (PNP) | Jetlegend brushless, high voltage, installed |
Liveries
Every factory scheme is available for the Alpha Jet – just write to us. If yours is not among them we are happy to have it made, provided there is enough source material (three-view drawing and detail photographs).
Not included
Turbine (140–160 N), radio system, receiver and batteries are not part of the delivery.
Central controller
More information on the JETLEGEND central controller is available here.
Downloads
| file | file size |
|---|---|
| JL_Alpha_spec_sheet_.pdf (0.15 MB) | 0.15 MB |
| product_safety_information_modelplane_Jetlegend.pdf (1.70 MB) | 1.70 MB |
| Produktsicherheitsinformation_Modellflugzeug_Jetlegend.pdf (1.70 MB) | 1.70 MB |
