Jetlegend F-18C 1/5.5
Jetlegend F-18C 1/5.5
Product.Nr. JL038
Jetlegend F-18C in 1/5.5 scale: HEREX fuselage, 2,130 mm wingspan, 19 kg dry, turbines 250–310 N, single or twin. As an ARF kit or an almost ready-to-fly PNP version.
product description
Jetlegend F-18C 1/5.5
Prices may differ from the base price depending on the complexity of the finish.

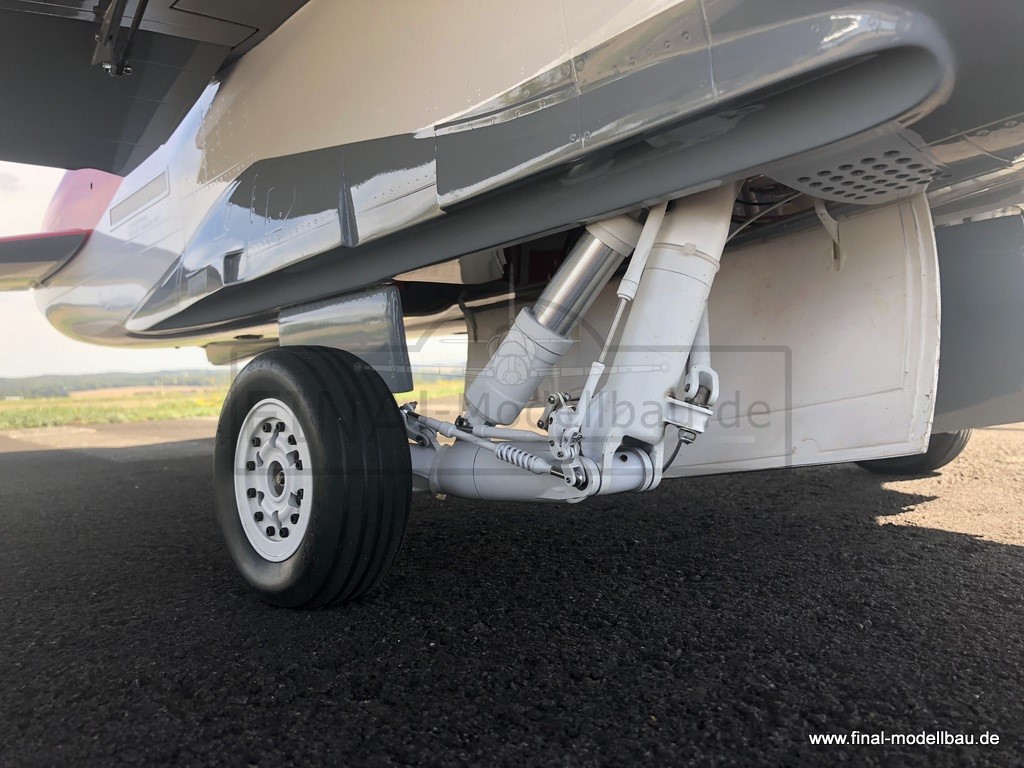

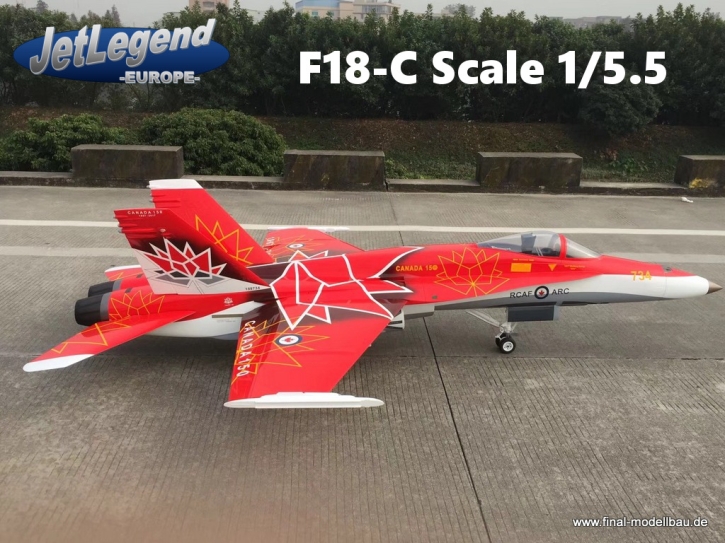

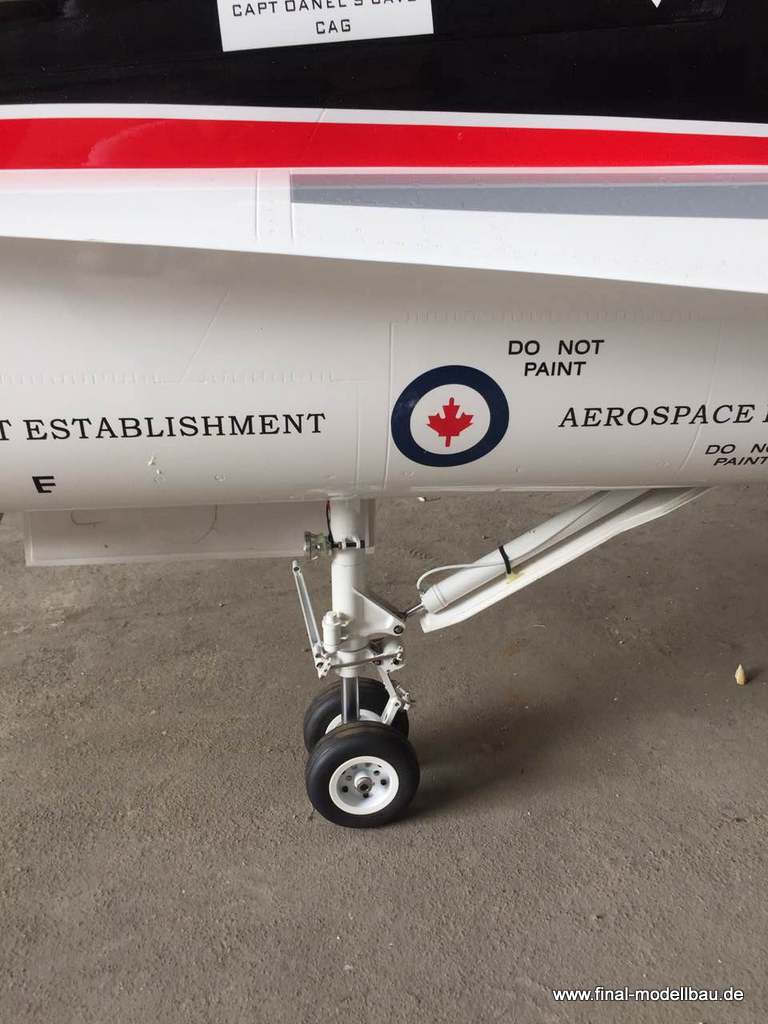

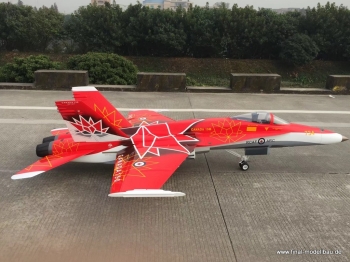

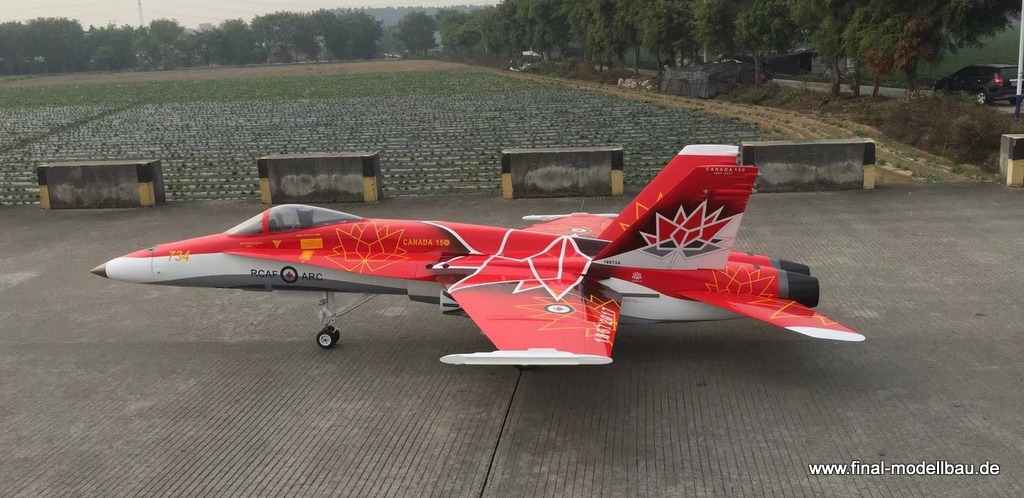

After the smaller F-18, Jetlegend followed up with the big brother in 1/5.5 scale. The fuselage is built entirely in HEREX and reaches a minimum of weight; the landing gear comes very close to the original. The model is available for two turbines as well as for a single one through the bifurcated pipe.
At a glance
- 1/5.5 scale · 2,130 mm wingspan · 3,100 mm length
- Turbines 250–310 N
- Single or twin – thrust pipe for either
- PNP dry weight without engine 19 kg
- Fuselage built entirely in HEREX
- Scale lighting including afterburner ring
- Servo-operated canopy
- Available as an ARF kit or as an almost ready-to-fly PNP version
ARF or PNP
| Included | ARF | PNP |
|---|---|---|
| SCALE landing gear | ✓ | ✓ |
| Thrust pipe, single or twin turbine | ✓ | ✓ |
| Fuel tank | ✓ | 2 × installed |
| Hardware | ✓ | ✓ |
| UAT (hopper tank) | – | 2 × installed |
| Scale cockpit | upgrade | included |
| Gear and doors fitted with pneumatic cylinders and hinges | upgrade | installed |
| SCALE lighting incl. afterburner ring | upgrade | installed |
| CENTRAL controller (lighting, door sequencer, gear safety) | upgrade | installed |
| SMOKE system with tank | upgrade | installed |
| Servo-operated canopy | – | installed |
| Speed brake | – | installed and functional |
| All servos installed and linked | – | ✓ |
Optional upgrades for the ARF kit
| Scale cockpit | € 359 |
|---|---|
| Fitting of landing gear and gear doors with pneumatic cylinders and hinges | € 690 |
| Fitting of SCALE lighting with controller | € 390 |
| Fitting of SMOKE system with tank | € 270 |
Technical data
| Scale | 1/5.5 |
|---|---|
| Wingspan | 2,130 mm |
| Length | 3,100 mm |
| Turbine | 250–310 N (not included) |
| PNP dry weight, without engine | 19 kg |

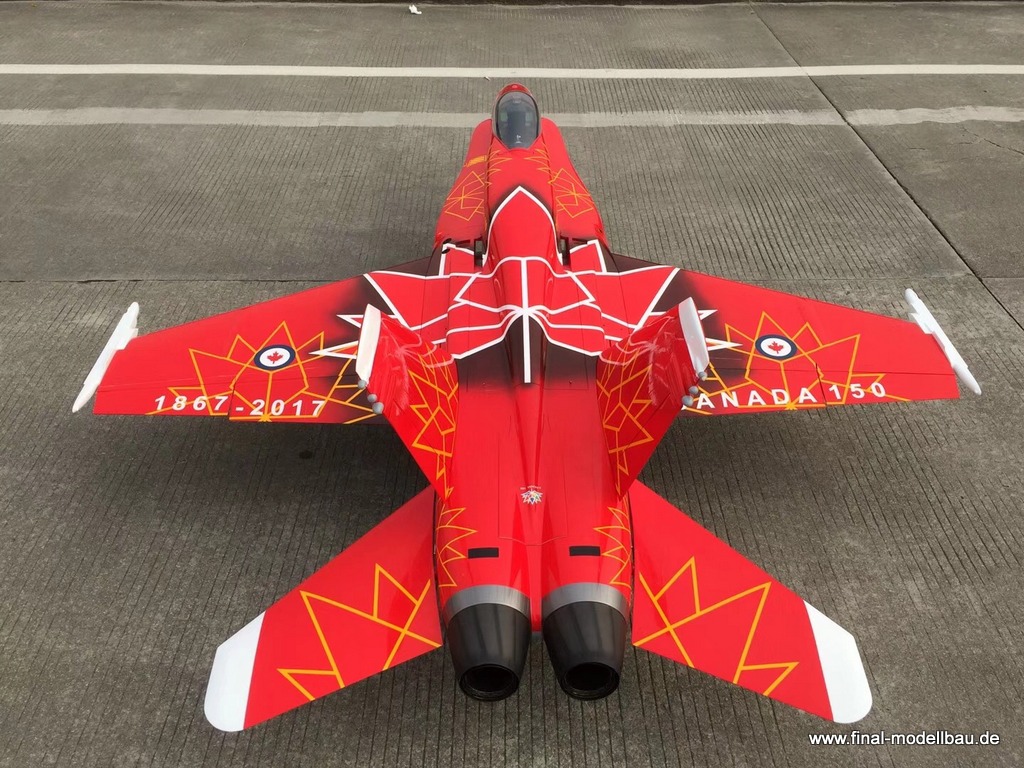

| Power | one or two turbines |
| Fuselage construction | HEREX |

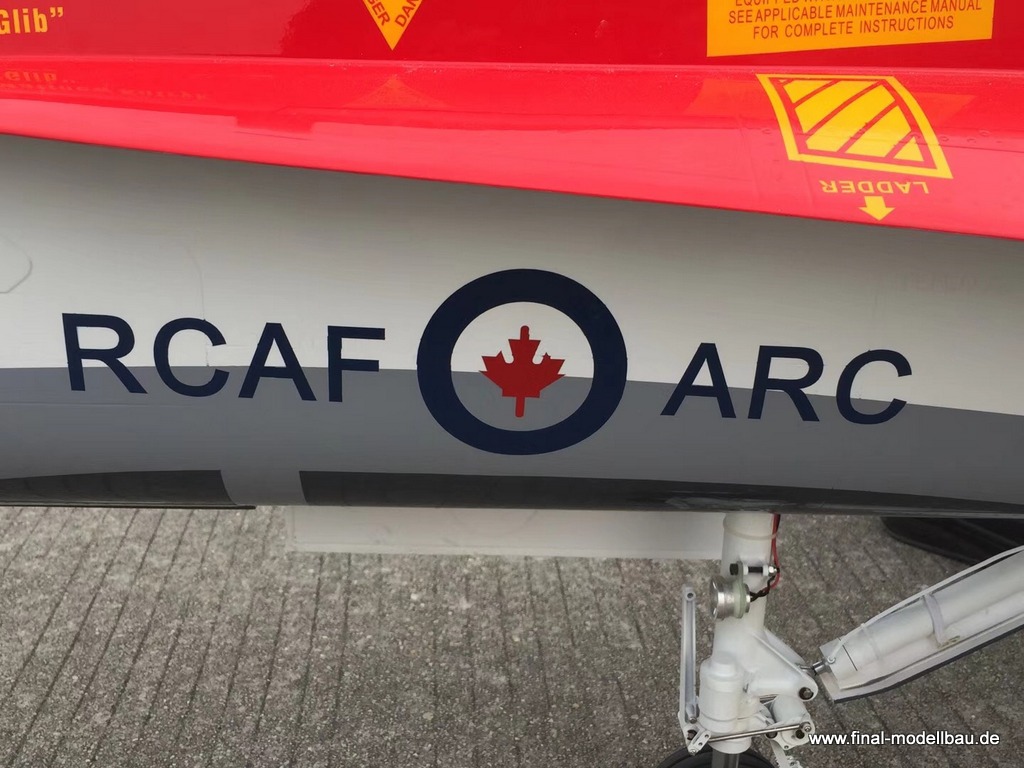

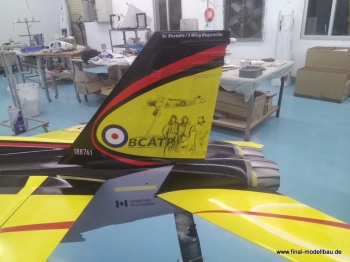

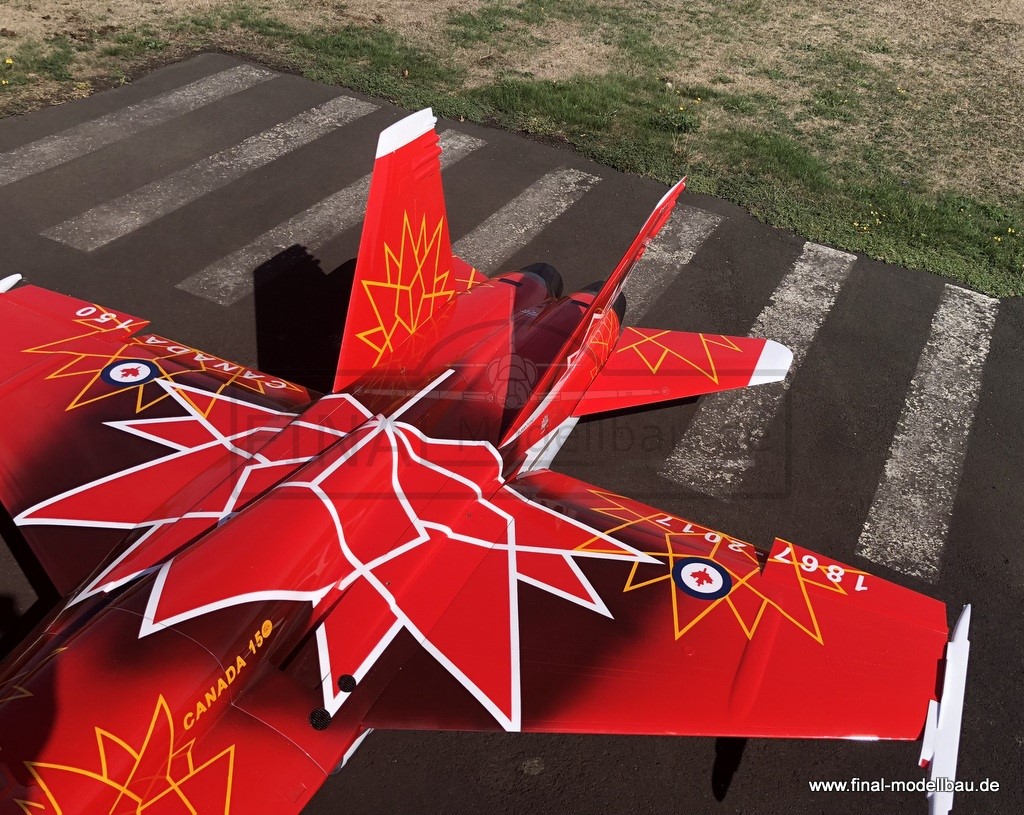

Custom liveries
As with the 1/8 version, almost every common exterior scheme is available – get in touch for prices and details.
More
Not included
Turbine (250–310 N), radio system, receiver and batteries are not part of the delivery.
Central controller
More information on the JETLEGEND central controller is available here.
