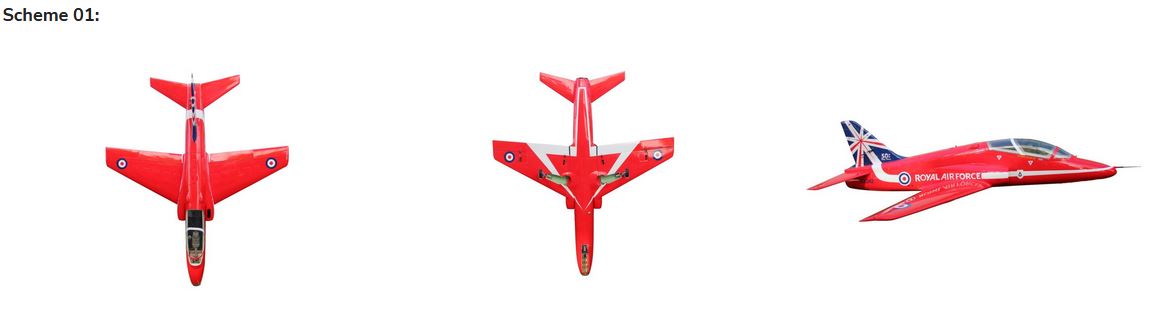

Pilot-RC BAE Hawk 1.8m (70.9″) Landing Gear Combo color scheme 01
product description
Pilot-RC BAE Hawk 1.8m (70.9″) Landing Gear Combo color scheme 01
Everyone has a soft spot for the BAE Hawk, and this feeling will only develop further once you feel the gentle and smooth yet agile capabilities of our Pilot-RC version.
Specifications:| Model: | BAE Hawk |
| Wingspan: | 60.2″ (1,530mm) – without pitot tube |
| Length: | 70.9″ (1,800mm) |
| Weight: | 17.8lbs (8.05kg) |
Included hardware:
- Complete air frame (including fibreglass control horns)
- Carbon fibre wing-tubes
- Servo extension leads
- Pilot-RC electric retracts and electric brakes
- Dual wall tail pipe (for 60-100N turbines)
- Fuel tank (2000ml) and UAT (250ml)
- Pre-prepared pushrods with ball links
- Pre-glued control horns
- Pilot-RC 1/7 BAE Hawk kit with gear doors installed
- Pilot-RC electric landing gear & brakes set
Required hardware:
Turbine: 60-100N
Servos: Total x8 servos
x1 standard size high torque (important: minimum 28kg)
x1 for elevator
x5 medium size servo (size: 35x15x30mm)
x2 for aileron (minimum 10kg)
x2 for flaps (minimum 10kg)
x1 for rudder (minimum 20kg)
The above five servos slots are also easily adaptable to fit standard size servo if preferred.
x2 medium size servo (size: 35x15x30mm, minimum 10kg)
x1 for steering
x1 for nose gear door
Also requires all the usual accessories such as transmitter, receiver, batteries, powerbox and possibly other small accessories.
Pilot-Rc recommended hardware:
- Servos: Pilot-Rc PW28AH (28Kg – 0,056s at 8,4v)
- Servos: Pilot-Rc PW10AH (13Kg – 0,19s at 8,4v)
- Servo arms: Pilot-Rc 1,2″ Aluminium arms (included with Pilot-Rc servos)
