Predator 1.8m
product description

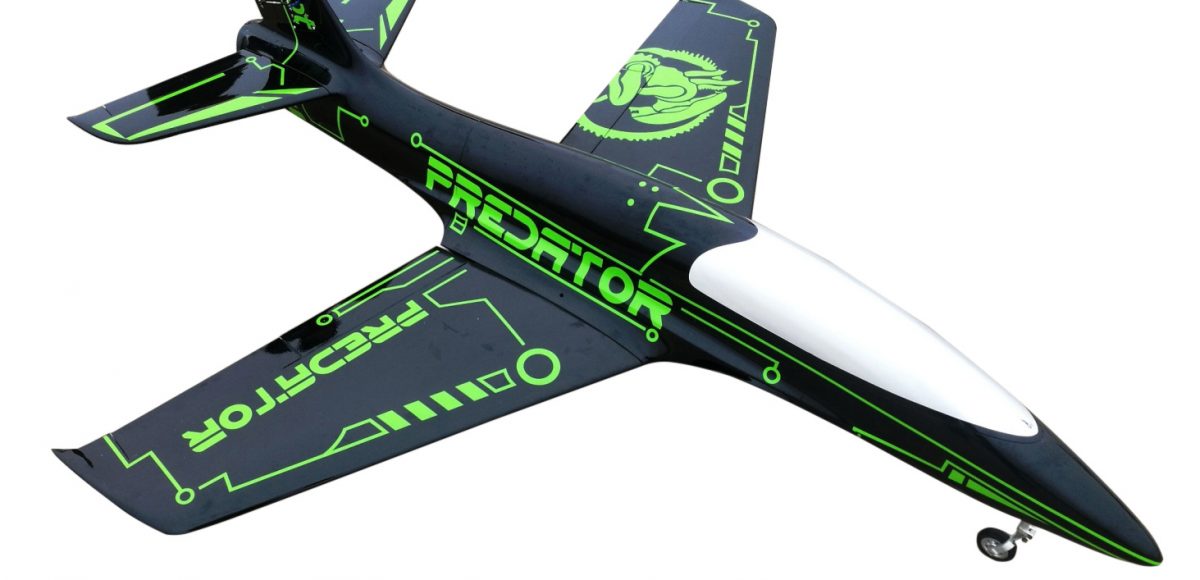

Predator 1.8m
A whole new line of sport jet, designed from the ground up with performance in mind. Capable of both high and low speed flying and manouvers and even options for converting to full 3D no manouver is out of reach for the Predator.
Select one of the several aggressive colour schemes and really stand out from the crowd at your next event.
Specifications:
Model | Predator 1.8 |
Wingspan | 1,60m |
Length | 1,80m |
wing area | 5370cm² |
weight | 7.4kg |
FEATURES:
- Full composite wing and elevator with fibreglas fuselage
- Two piece wing and two piece stabiliser all for easy transport
- Painted outside the mold so no seam lines
- Pre-installed tubes for included servo extension leads
- Pre-installed fibreglass control horns
Included hardware:
- Complete air frame (including aluminium wing-tubes)
- Pilot-RC electric retracts and electric brakes
- Servo extension leads
- Dual wall tail pipe (for 45-85N turbines)
- 2,000ml fuel tank and fuel tubing pre-prepared, fuel dot and breather valve
- Plastic air trap UAT
- Pre-prepared pushrods with ball links
Required hardware:
Turbine: 45-85N
Servos: 8 high torque // Uses x1 per aileron, x1 per flap, x1 per elevator, x1 on rudder and x1 for steering
Also requires all the usual accessories such as transmitter, receiver, batteries, powerbox and possibly other small accessories.
data:
Aileron: 17mm, Rudder: 25mm, Elevator: 18mm.
Flap: 23mm for take off and 61mm for landing.
The CG is 223mm from the front leading edge on the root of the wing.
color schemes available:
Farbschema 10:
Farbschema 11:
Farbschema 12:
Farbschema 14:
Farbschema 15:
Farbschema 18:
Farbscheam 19:
Farbschema 20:
Farbschema 21:
Farbschema 22:
Farbschema 27:
Downloads
file | file size |
---|---|
PilotRCmanualPredator180M.pdf (4.18 MB) | 4.18 MB |
