Pilot-RC Edge 540 new – 74″ (1.88m) color scheme 02
Pilot-RC Edge 540 new – 74″ (1.88m) color scheme 02
Product.Nr. PI-EDGE540-74-02
product description
Pilot-RC Edge 540 new – 74″ (1.88m) color scheme 02
The Edge 540 is well known for being one of the most aggressive full size aircraft ever made.
It this latest reincarnation, Pilot-RC takes our already popular Edge 540 and Edge 540 V3 designs for the ultimate Edge, both in design and performance.
Adopting all the latest carbon infused build designs, Pilot-RC’s patented quick release systems and all the experience and know how from all our latest showstoppers, this new Edge is guaranteed to put a smile on your face.
Specifications:
| Model: | Edge 540 |
| Wingspan: | 74″ (1.880mm) |
| Length: | 65.95″ (1.675mm) |
| Wing area: | 1,033 “² (6,667 cm²) |
| Weight: | 11.66lbs (5.3kg) |
Video:
Components used in the video: GP Engines 38cc

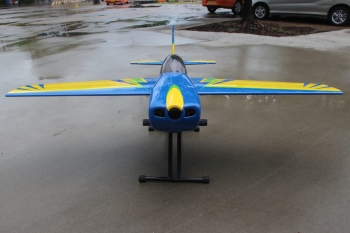

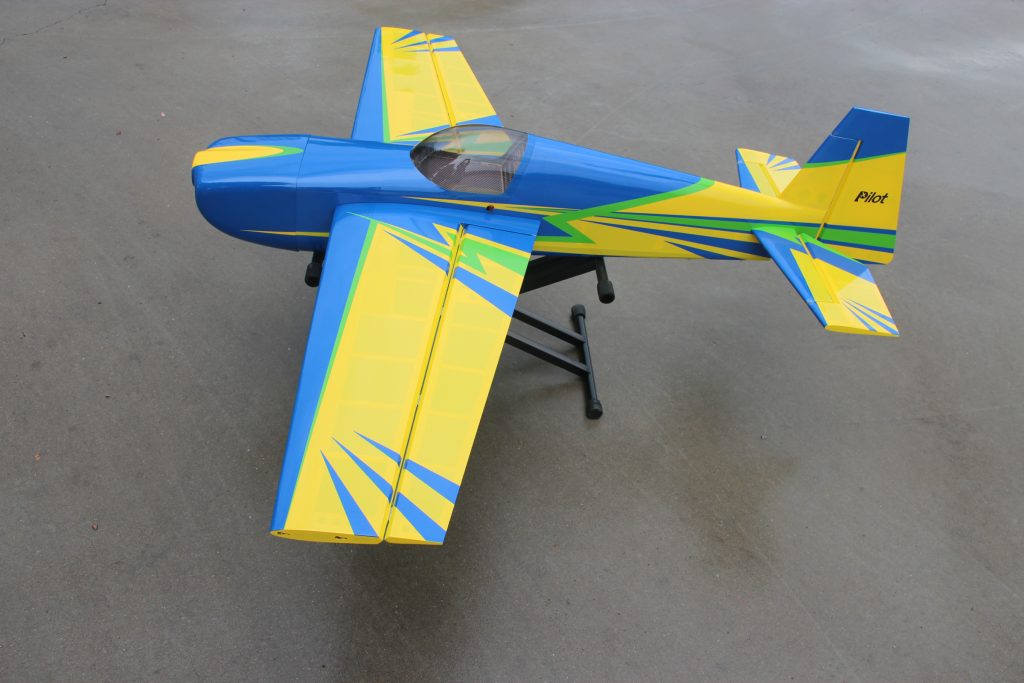

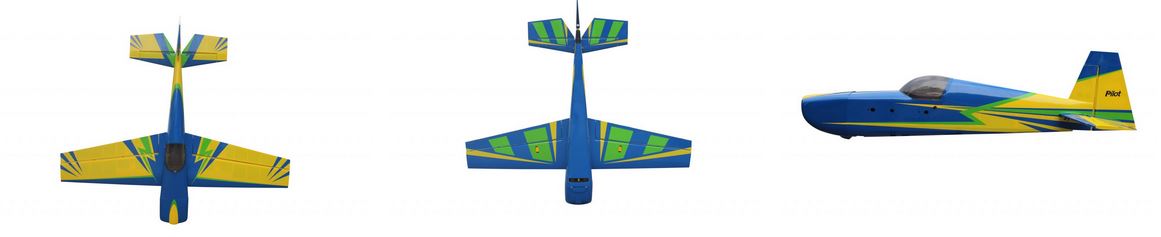

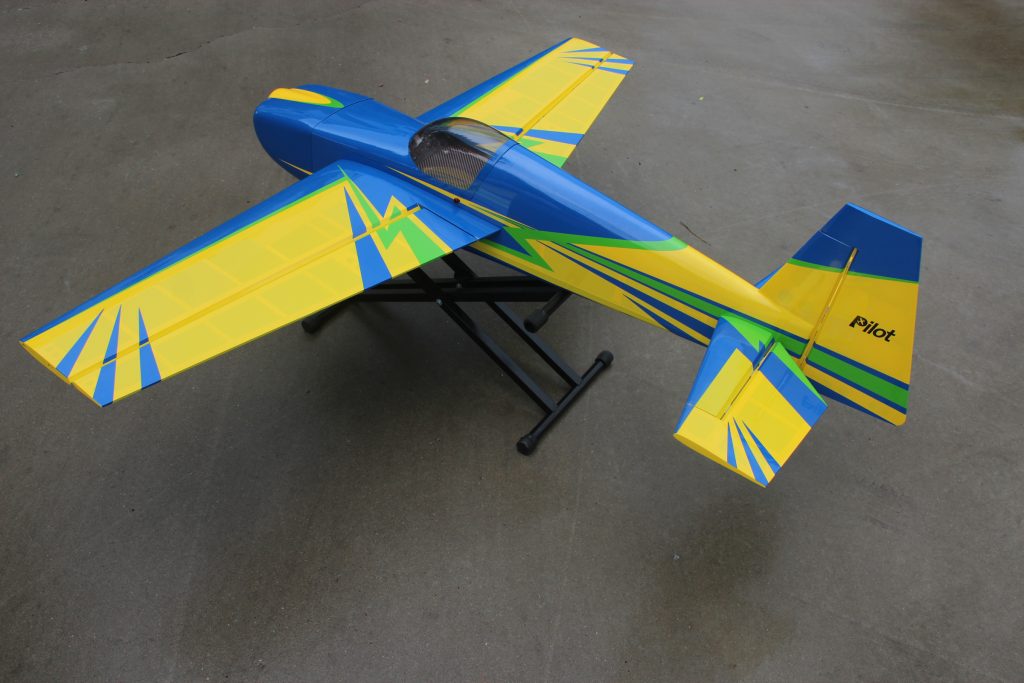

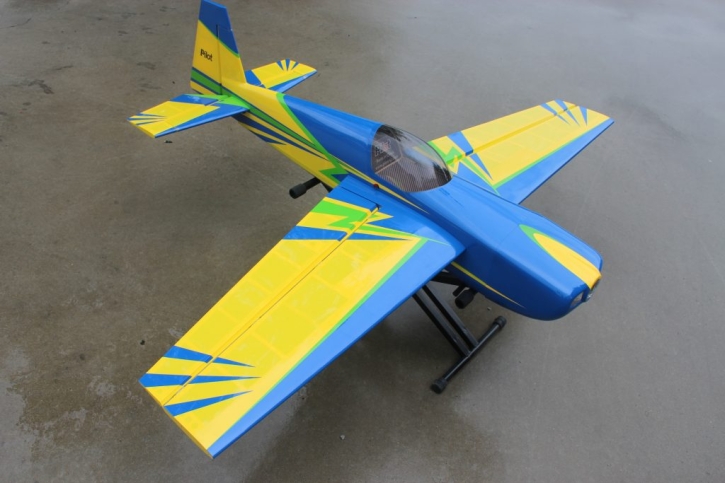

color scheme 02:

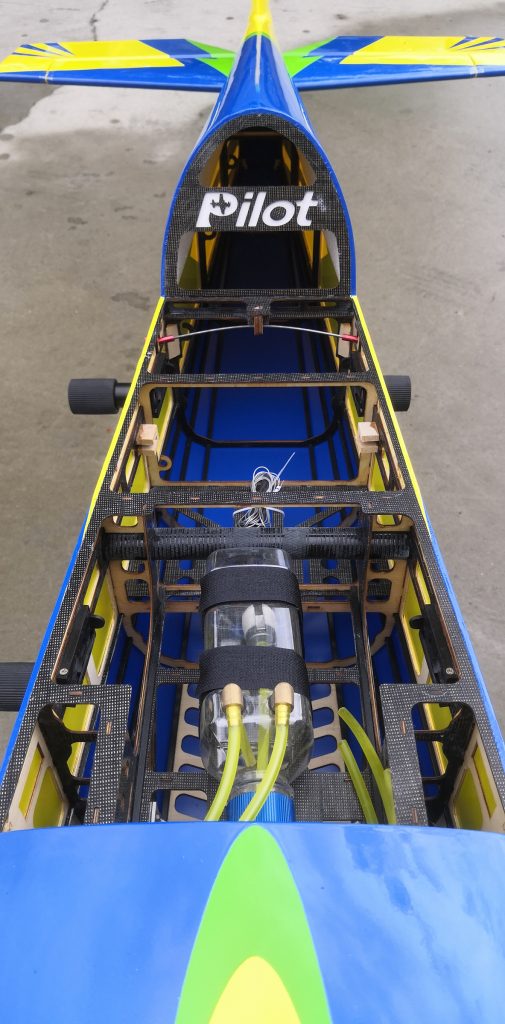

Build information
COWL SIZE:
A: 239mm – B: 230mm – C: 228mm – D: 235mm
EXHAUST TUNNEL SIZE:
A: 213mm – B: 85mm – C: 213mm – D: 86mm – E: 129mm

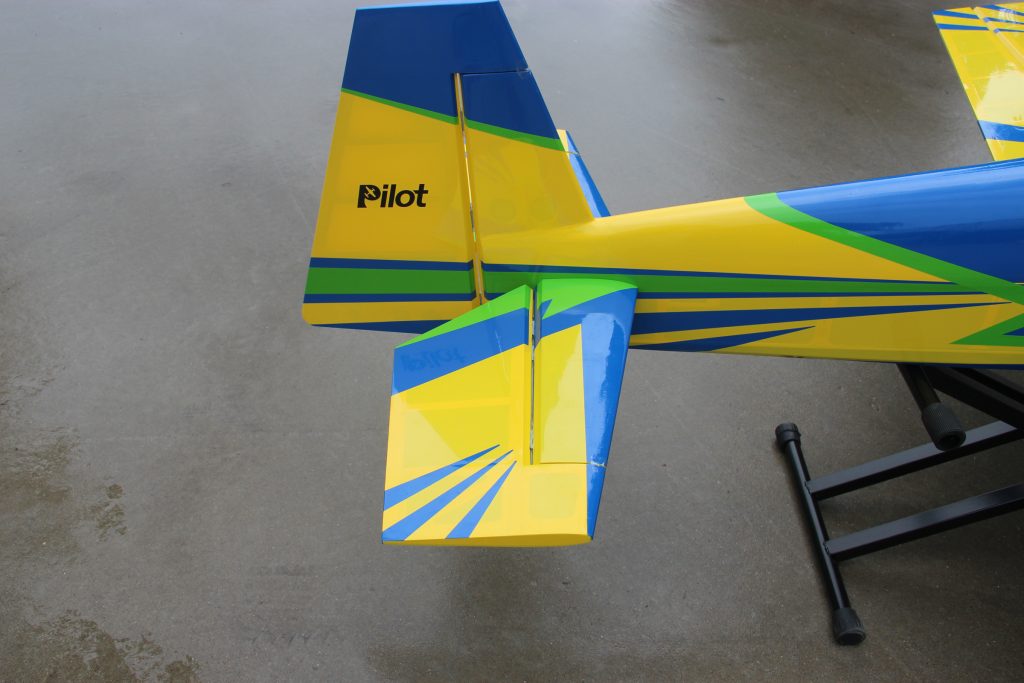

RUDDER HORNS AND PULL PULL LOCATION:
EXTENSION WIRE LENGTHS:
Throttle:
No extension required
Each aileron:
10cm
(to reach receiver direct)
Each elevator:
90cm
Rudder:
No extension required
CENTER OF GRAVITY:
139mm
Measured back from leading edge of the wing at the fuselage.

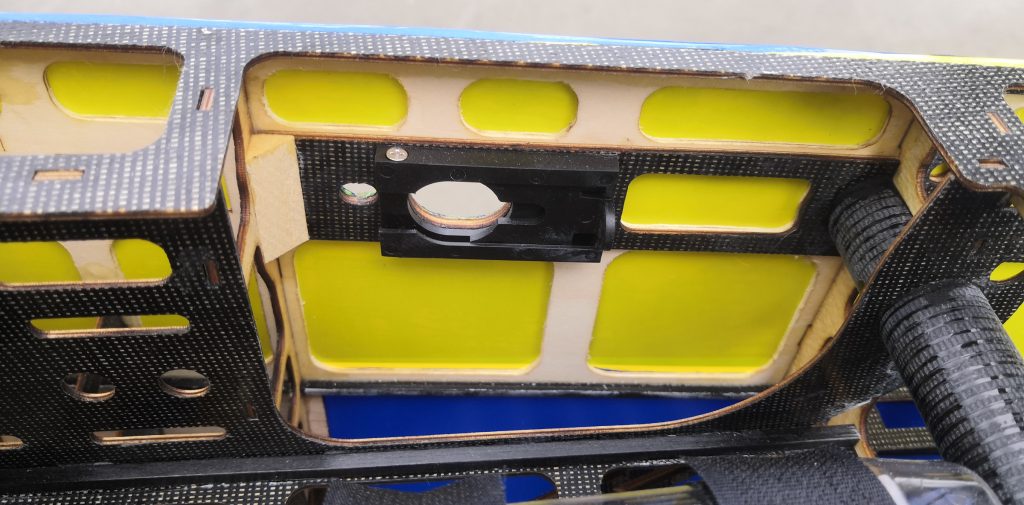

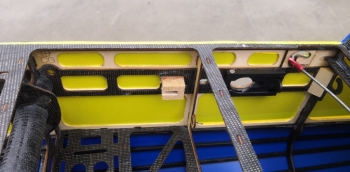

You will find a laser engraved C.G. emblem on the inside of the fuselage, located close to the wing tube, which also shows the exact location for Center of Gravity.
