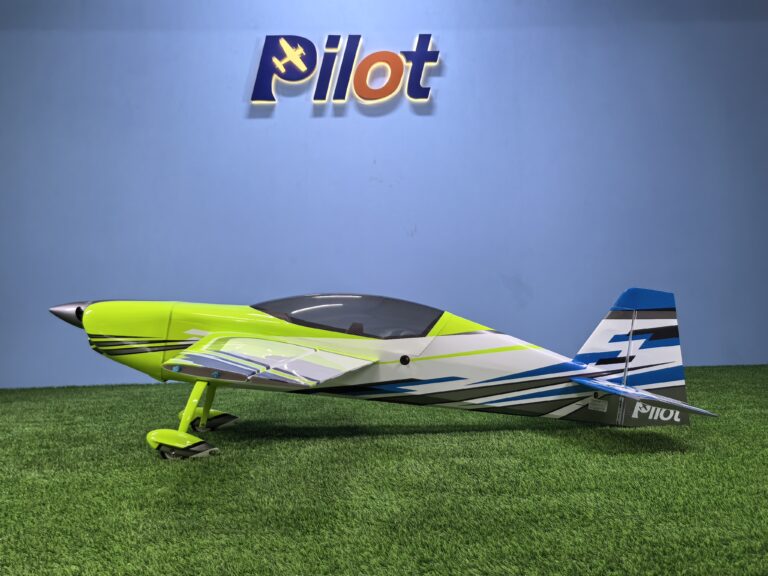

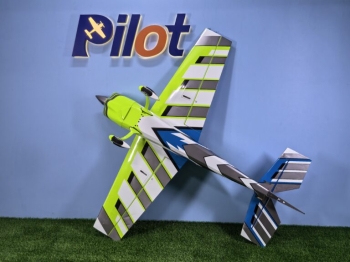

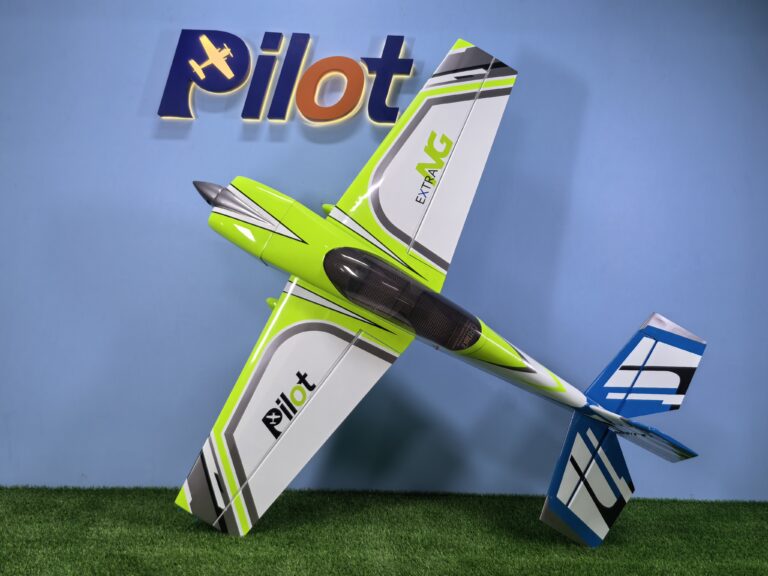

Pilot-RC Extra NG 67″ – The Next Generation of Precision Aerobatics

The Pilot-RC Extra NG 67″ is inspired by the latest generation of the full-scale Extra NG, combining modern aesthetics with cutting-edge engineering and exceptional flight performance. Building on the legendary success of the Extra series, this model delivers even greater precision, agility, and versatility for today's demanding aerobatic pilots.

Designed and engineered by Pilot-RC, the Extra NG incorporates the company's latest construction techniques and innovative assembly solutions. The result is a lightweight yet exceptionally rigid airframe that offers outstanding performance in precision aerobatics, high-energy XA flying, and extreme 3D maneuvers.

With its high level of prefabrication and patented quick-assembly systems, the Extra NG can be assembled at the flying field in just a few minutes, allowing more time in the air and less time on the workbench.

Outstanding Flight Performance

The Extra NG has been developed to provide an exceptionally wide performance envelope.

Its lightweight construction, optimized aerodynamics, and rigid airframe deliver precise control response, excellent tracking, and remarkable agility. Whether flying smooth IMAC sequences, dynamic XA routines, or demanding 3D maneuvers, the Extra NG remains predictable, responsive, and confidence inspiring.

Key Features

• NEW Hybrid airframe construction combining wood and composite materials for increased strength and reduced weight
• NEW Patented quick-release wing mounting system
• NEW Patented quick-release canopy system for rapid battery changes on electric versions
• NEW Patented quick-release Side Force Generator (SFG) mounting system
• Lightweight yet extremely rigid airframe optimized for precision aerobatics and extreme 3D flying
• Highly prefabricated construction allowing experienced builders to complete assembly in less than one day
• Removable wings for convenient transport
• Laser-engraved motor mounting reference
• Designed for both 20 cc gasoline engines and equivalent electric power systems
• Internal cowling mounting without visible external screws
• Push-pull rudder linkage for precise and direct control response
• Wing bags and servo extension leads included

Included Equipment

The kit includes a comprehensive range of high-quality components and accessories:

• Complete airframe
• Carbon fiber main landing gear
• Tail wheel assembly
• Carbon wing tubes
• Fiberglass control horns
• Fiberglass wheel pants
• Wing bags
• Servo extension leads
• Pre-installed hinge locations
• Factory-mounted canopy
• Fuel tank with fuel tubing and fuel dot
• Wheels and axles
• Pre-assembled pushrods with ball links
• 2.5″ spinner

Recommended Power System

The Extra NG has been designed for both gasoline and electric power systems.

Recommended engine:

• 20 cc gasoline engine or equivalent electric motor

Note: The airframe is compatible with both power options. When installing a gasoline engine, the firewall and engine box should be reinforced accordingly.

Servo Requirements

• 4 high-torque servos plus one throttle servo
• 1 servo per aileron
• 1 servo for the elevator
• 1 servo for the rudder

The factory-prepared servo openings are designed for medium-size servos (35 × 15 mm) but can easily be enlarged to accommodate standard-size servos if required.

Recommended Pilot-RC Equipment

For optimum performance, Pilot-RC recommends the following components:

• Servos: Pilot-RC PW16AH (16 kg @ 8.4 V)
• Servo Arms: Pilot-RC 1.2″ Aluminum Servo Arms (included with PW16AH servos)
• Electric Power System: Pilot-RC Power Pack for 67″ Aircraft (3D Aerobatics)
• Complete Power Package: Pilot-RC Power Pack for 67″ Aircraft including Servos

Technical Specifications

Designed for Every Style of Aerobatics

The Pilot-RC Extra NG 67″ is a versatile high-performance aerobatic aircraft that combines modern design, innovative construction, and exceptional flight characteristics.

Whether your focus is precision aerobatics, aggressive XA flying, or low and slow 3D maneuvers, the Extra NG delivers the accuracy, agility, and reliability expected from the latest generation of Pilot-RC aircraft.
