PILOT-RC Pitts Challenger 73'' (1.85m) S2B color scheme 2
1.129,00 EUR
incl. 19 % VAT excl. shipping costs
weight 96 kg
delivery time 2-3 Tage
Verfügbar! - Nur noch geringe Anzahl auf Lager!
product description
PILOT-RC Pitts Challenger 73'' (1.85m) S2B color scheme 2
Pilot-RC’s first ever biplane! And it could be no other than the classically beautiful Pitts Challenger.
Fear not about long setup times of traditional biplanes, Pilot-RC’s innovative and patented systems allow you to have the model completely put together in under 5 minutes, to then unleash the acrobatic monster that is our Pitts.
| wingspan | 1856mm |
| length | 1796mm |
| wing area | 1108cm² |
| weight | 9.4kg |

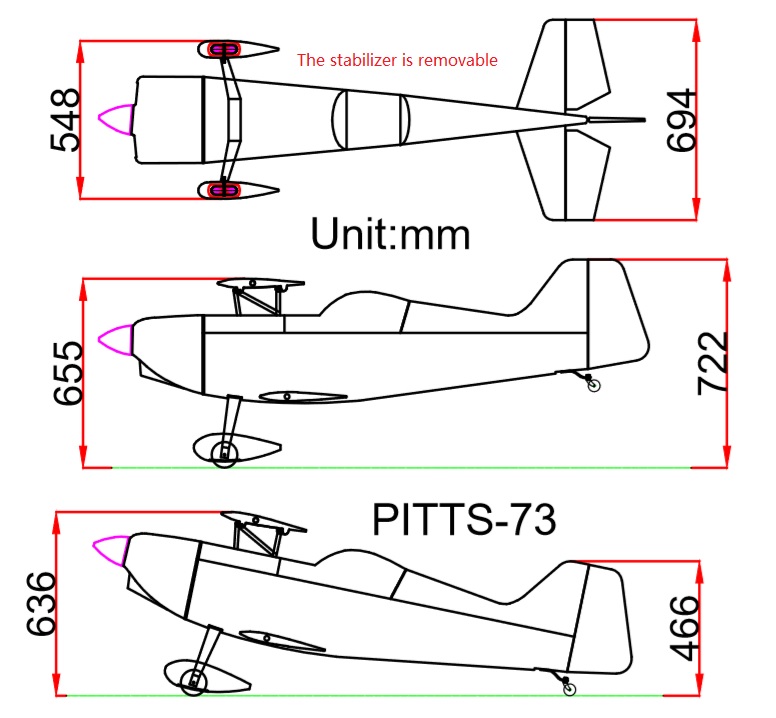

Does it fit in my car?
Features:
- SPECIAL NEW! Pilot-RC new and patented quick release system for fast wing mounting at the field.
- Special Pilot-RC no screw canopy. Quick release with new security latch design.
- Strong but light, precise and highly acrobatic
- Genuine German Oracover (Ultracote) covering
- Highly prefabricated, experienced builders can have air ready in under a day
- Pre-installed hinges (glued and pinned)
- Internally mounted cowling – so no external screws exposed
- Removable wings , wing stut and stabs.
- Laser engraved motor mounting position
Included hardware:

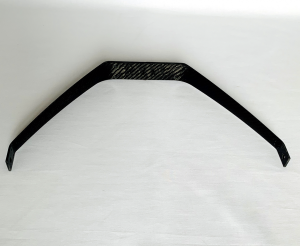

- Complete air frame with all basic accessories (such as carbon fiber main undercarriage, tail-gear assembly and wing-tubes as well as fibreglass control horns and wheel pants)
- Pre-installed hinges and pre-mounted canopy
- Fuel tank and fuel tubing pre-prepared, fuel dot and breather valve
- Wheels, axels and wheel pants
- Pre-prepared pushrods with ball links
- Matching carbon spinner
Required hardware
Motor: 50-70cc (easily fits DLE60, DA70 and GP76 engines inside the cowl)
Servos: x7 high torque plus throttle // Uses x1 per aileron (total x4), x1 per elevator and x1 on rudder
Required extension wire lengths:
- x2 for bottom wing aileron servo: 12cm
- x2 for top wing aileron servo: 55cm (installed in bottom wing) + 46cm (installed in wing struts)
- x2 for the receiver to the the wing root, inside fuselage: 32cm
- x2 for elevator servo: 50cm
- x1 for throttle servo: 35cm
Also requires all the usual accessories such as transmitter, receiver, batteries, powerbox and possibly other small accessories…
on the following link you can browse the manual for the Pitts:
http://www.pilot-rc.com/manual/pitts-challenger-73%e2%80%b3-1-85m-50-70cc-manual/

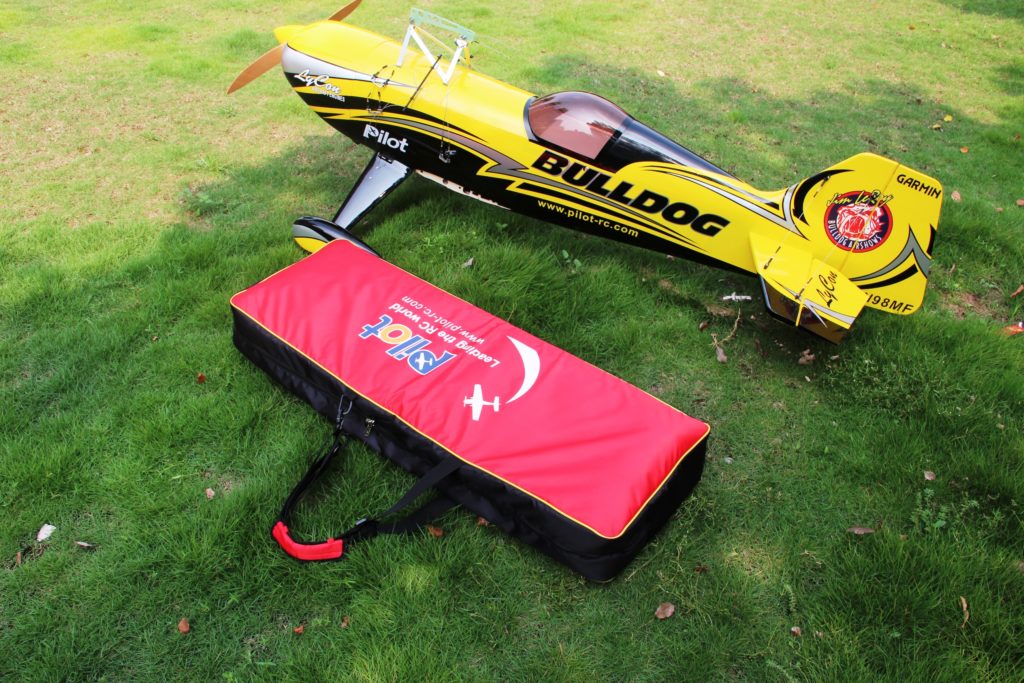

Pilot-RC wing bags. Optional extra, not included in the kit:

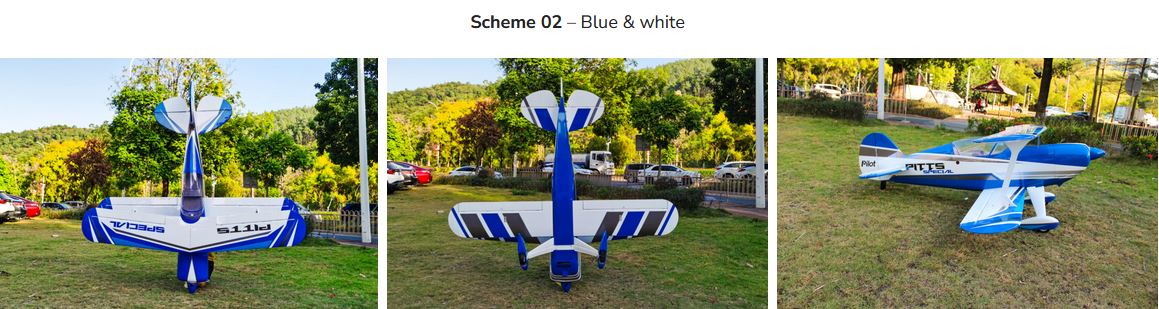

color scheme 02:
