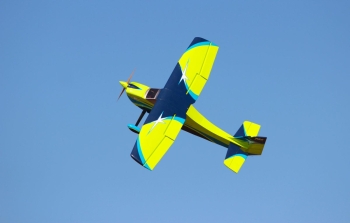

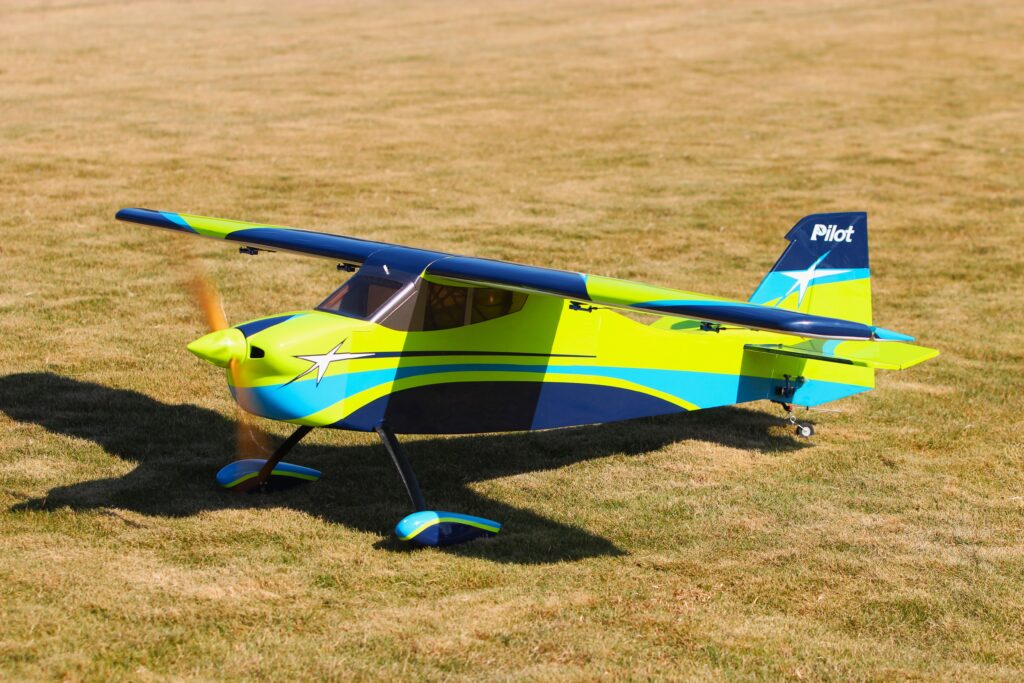

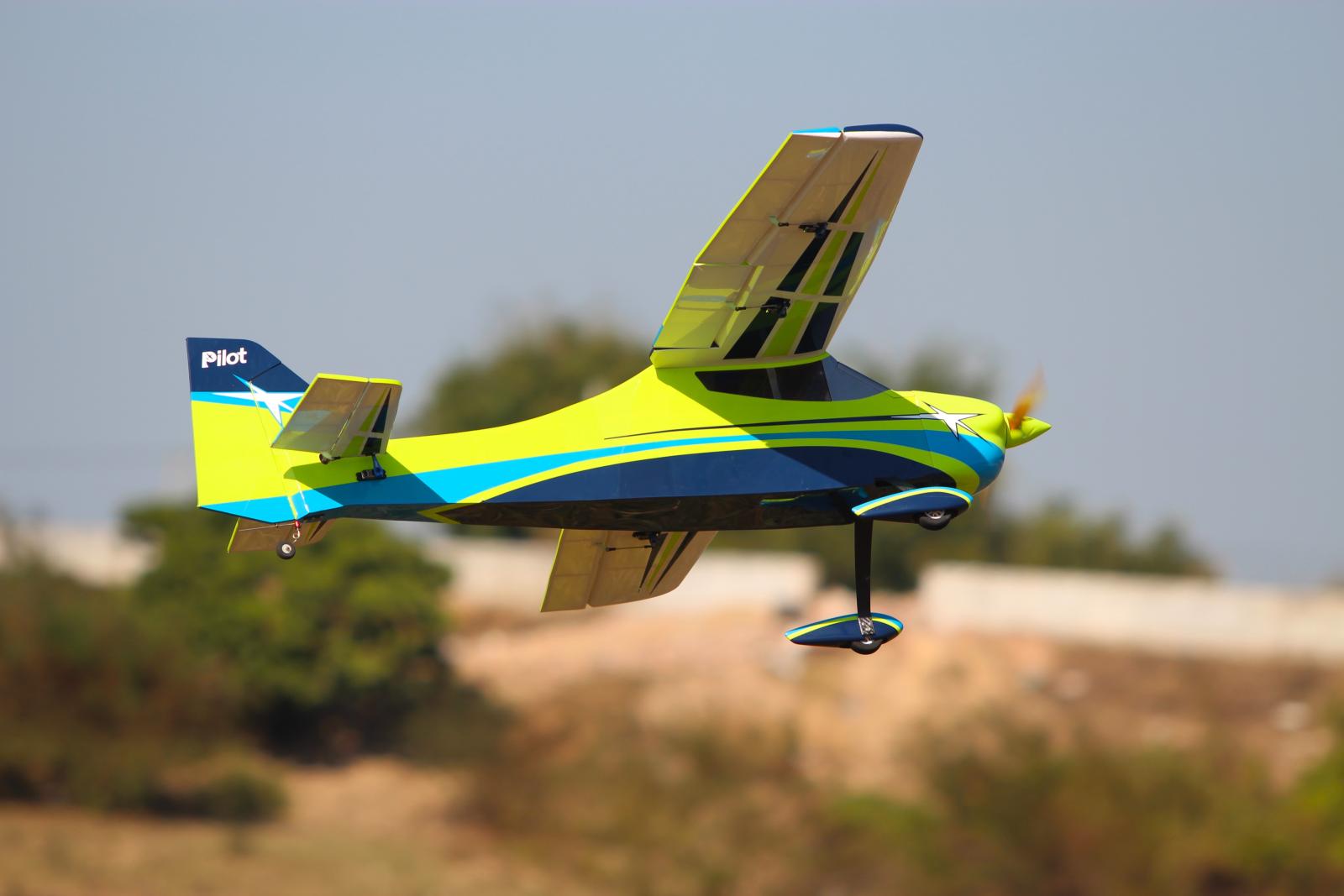

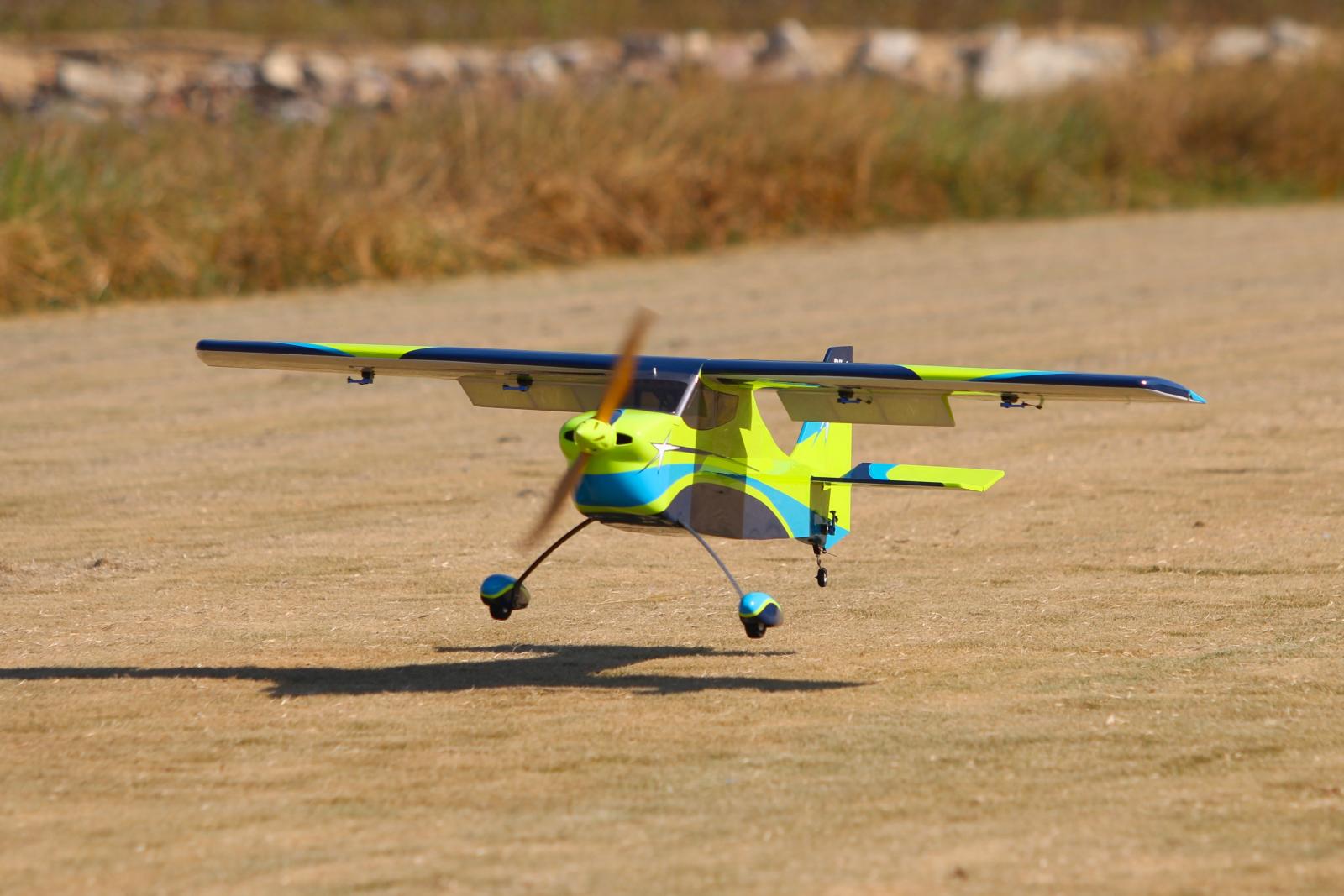

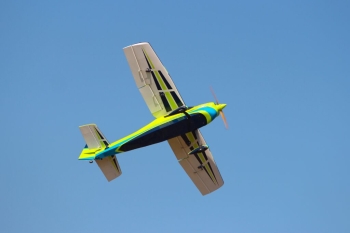

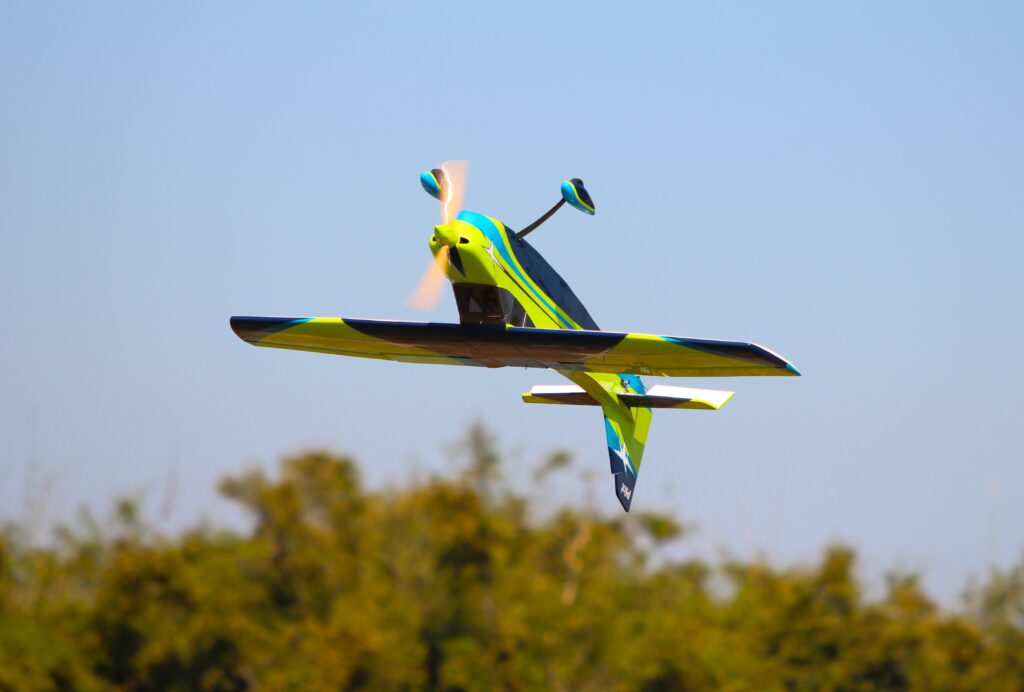

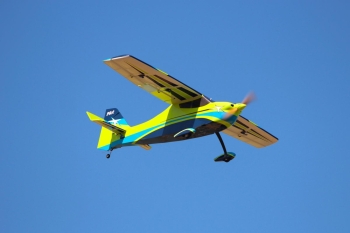

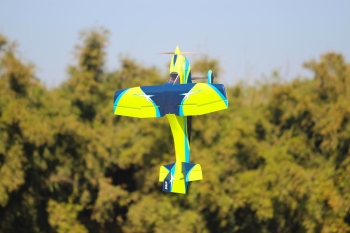

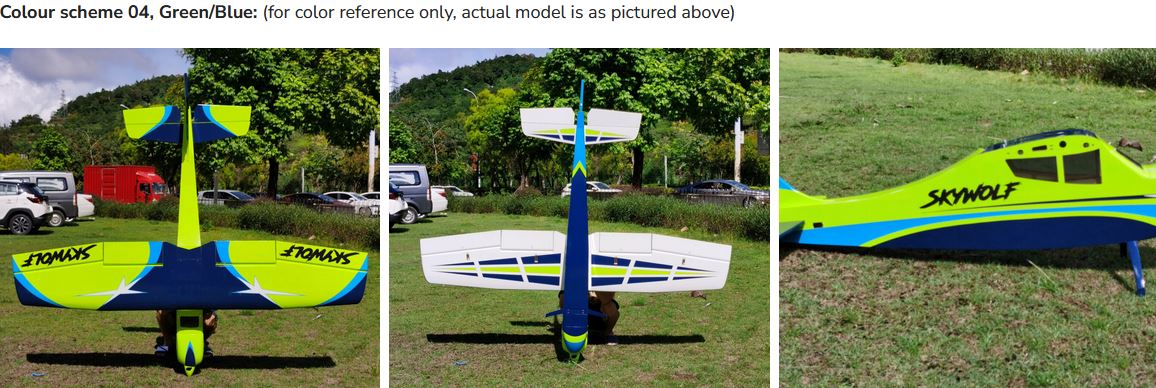

Pilot-RC Skywolf 67" color scheme 04

A true aeromodel, designed for pure fun and simplicity.  From slow flight to fun-fly and even some 3D, this is a surprisingly capable acrobatic model.  Designed by Jan Spatny from Czech Republic.

Specifications:

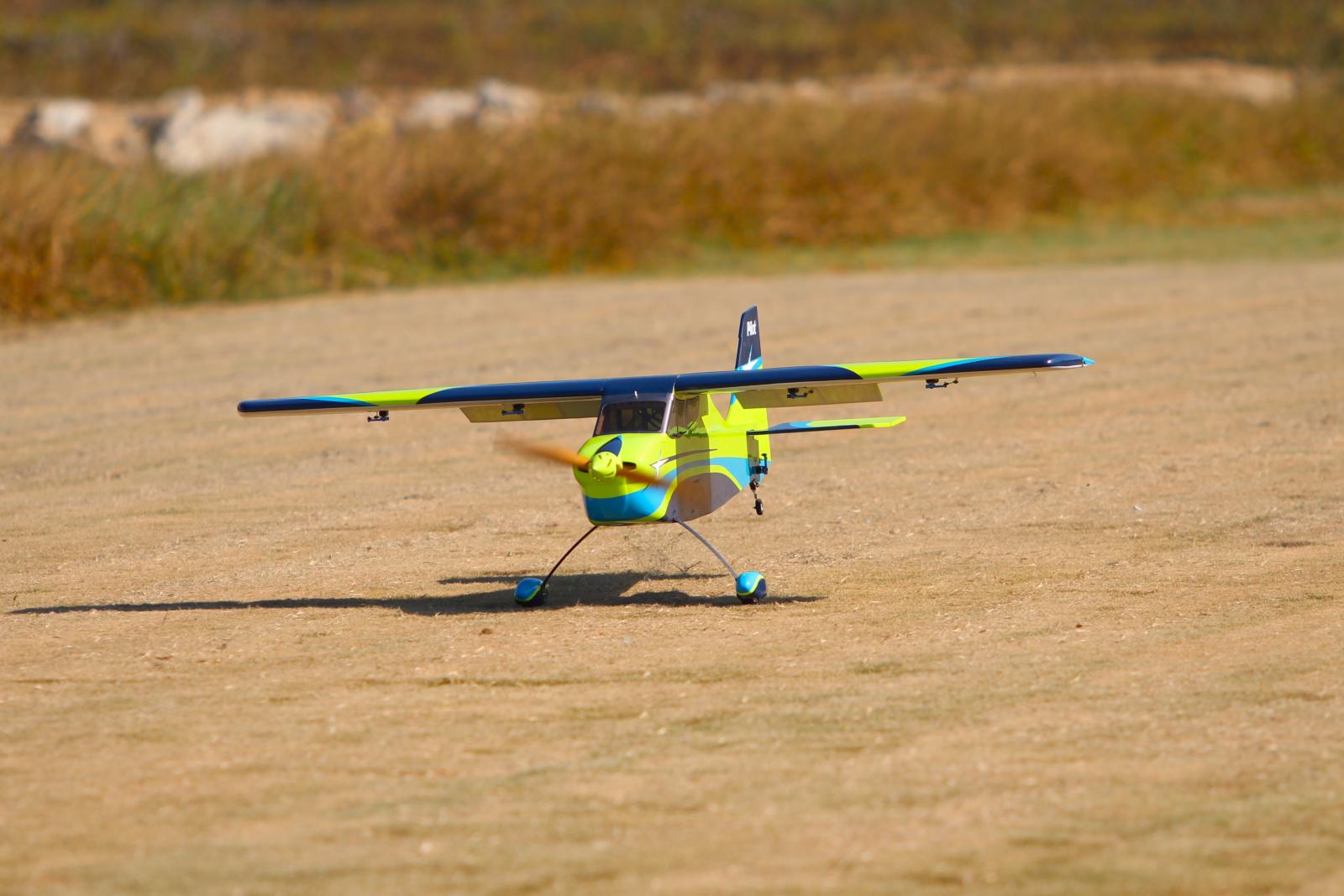

Video and GALLERY: RYU SINTUPHROM Relaxing on SKYWOLF 67′

FEATURES:

• Strong yet light weight design, good for aerobatic flying and can even hover!
• Highly prefabricated, experienced builders can have air ready in under a day
• Pre-installed hinges on ailerons, flaps and rudder (glued and sealed)
• Internally mounted cowling – so no external screws exposed
• Removable wings with quick release system
• Laser engraved motor mounting position
• Open construction allows for easy canister installation for 15-20cc size engine
• Quick release front windshield / top-hatch, allowing easy access to replace batteries in electric setups
• Big 5″ wheels

Included hardware:

• Complete air frame with all basic accessories (such as carbon fibre undercarriage, tail-gear assembly and wing-tubes as well as fibreglass control horns and wheel pants)
• Pre-installed hinges and pre-mounted canopy
• Fuel tank and fuel tubing pre-prepared, fuel dot and breather valve
• Wheels and wheel axels
• Pre-prepared pushrods with ball links
• Matching carbon spinner

Required hardware:

Motor: 15-20cc or equivalent electric

Servos: 7 high torque plus throttle // Uses x1 per aileron, x1 per flap, x1 per elevator and x1 on rudder

Also requires all the usual accessories such as transmitter, receiver, propeller, batteries, powerbox, extension leads and possibly other small accessories.

Pilot-Rc recommended hardware:

• Servos: Pilot-Rc PW16AH (16Kg – 0,057s at 8,4v)
• Servo arms: Pilot-Rc 1,6″ Aluminium arms (included with Pilot-Rc servos)
• Wingbags: Pilot-RC Skywolf wingbags

Build information

COWL SIZE:

A: 187mm, B: 180mm, C: 190mm, D: 170mm

EXHAUST TUNNEL SIZE:

A: 453mm, B: 64mm, C: 453mm, D: 72mm, E: 132mm, F: 153mm

RUDDER HORNS AND PULL PULL LOCATION:

A: N/A, B: N/A, C: N/A, D: 21mm, E: N/A

Extension wire lengths:

Throttle:
7.5cm

Each wing:
Flap 15cm
Aileron 30cm
(to reach receiver direct)

Each elevator:
60cm

Each rudder servo:
60cm

CENTER OF GRAVITY:

60mm
Measured back from leading edge of the wing at the fuselage.

You will find a laser engraved C.G. emblem on the inside of the fuselage, located close to the wing tube, which also shows the exact location for Center of Gravity.
