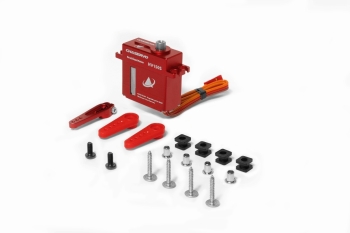

CHASERVO HV150S – 15 mm HV servo, 16.5 kg
CHASERVO HV150S – 15 mm HV servo, 16.5 kg
Product.Nr. CHA-HV150S
CHASERVO HV150S – 15 mm HV servo, 16.5 kg: 15 kg·cm holding torque, 0.050 s/60° speed, 51 g, 35.5 x 15 x 35.5 mm.
product description
CHASERVO HV150S – 15 mm HV servo, 16.5 kg
The CHASERVO HV150S is a 15 mm thin HV servo (high voltage) with 4-pole brushless motor, aluminium case and metal gears. At 7.4 V it delivers 15 kg·cm holding torque (9.0 kg·cm output torque) and moves 60° in 0.050 s – weighing only 51 g.
- Voltage range 4.8 – 8.4 V – runs directly on a 2s LiPo (HV), no regulator needed.
- Holding torque 10.0 kg·cm @ 4.8 V · 12.5 kg·cm @ 6 V · 15 kg·cm @ 7.4 V · 16.5 kg·cm @ 8.4 V.
- Speed 0.079 s/60° @ 4.8 V · 0.061 s/60° @ 6 V · 0.050 s/60° @ 7.4 V · 0.043 s/60° @ 8.4 V.
- Precision potentiometer as position sensor.
- Output spline 25T, 6 mm – matching CHASERVO aluminium arms see below.
- Programmable: centre, end points, direction and soft start with the CHASERVO Programming Tool (see accessories).
Applications
A standard servo for turbine jets and large-scale models: control surfaces, gear doors, nose wheel steering. Compact in 15/17 mm format but with the torque that used to require a 20 mm servo.
Technical data
| Dimensions | 35.5 x 15 x 35.5 mm |
| Weight | 51 g |
| Rated voltage | DC 7.4 V |
| Voltage range | DC 4.8 – 8.4 V |
| Output spline | 25T, 6 mm |
| Version | HV150S |
| Case material | Aluminium |
| Gear material | Metal gears |
| Position sensor | Potentiometer |
| Motor | 4-pole brushless |
| Operating frequency | 1520 µs / 333 Hz |
| Pulse width | 900 µs – 2100 µs |
| Programmable | Yes |
| Holding Torque | 10.0 kg·cm @ 4.8 V · 12.5 kg·cm @ 6 V · 15 kg·cm @ 7.4 V · 16.5 kg·cm @ 8.4 V |
| Output Torque | 6.0 kg·cm @ 4.8 V · 7.5 kg·cm @ 6 V · 9.0 kg·cm @ 7.4 V · 10.0 kg·cm @ 8.4 V |
| No-load Speed | 0.079 s/60° @ 4.8 V · 0.061 s/60° @ 6 V · 0.050 s/60° @ 7.4 V · 0.043 s/60° @ 8.4 V |
Matching accessories
- Aluminium servo arms 25T/6 mm: servo arm 0625.0T red, servo arm 0625.11, servo arm 0625.23, servo arm 0625.23T, servo arm 0625.25T red, servo arm 0625.32, servo arm 0625.38, servo arm 0625.40, servo arm 0625.50, servo arm 0625.60, servo arm 25T-6B, servo arm 25T-6C, servo disc 0625.6D, double arm 0625.25T, double arm 0625.45 red with offset
- CHASERVO Programming Tool #5 for programming
Manufacturer data sheet as PDF in the downloads. Ships within one week.
