CHASERVO HV3512H – 20 mm HV servo, 40 kg
CHASERVO HV3512H – 20 mm HV servo, 40 kg
Product.Nr. CHA-HV3512H
product description
CHASERVO HV3512H – 20 mm HV servo, 40 kg

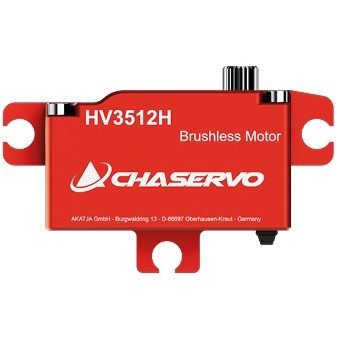

The CHASERVO HV3512H is a 20 mm thin HV servo (high voltage) with 4-pole brushless motor, aluminium case and metal gears. At 7.4 V it delivers 35.0 kg·cm holding torque (30.2 kg·cm output torque) and moves 60° in 0.12 s – weighing only 56 g. The H version is designed for horizontal (flat) installation in thin wings – see the data sheet in the downloads for the housing shape.
- Voltage range 4.0 – 9.0 V – runs directly on a 2s LiPo (HV), no regulator needed.
- Holding torque 30.0 kg·cm @ 6 V · 35.0 kg·cm @ 7.4 V · 40.0 kg·cm @ 8.4 V.
- Speed 0.14 s/60° @ 6 V · 0.12 s/60° @ 7.4 V · 0.11 s/60° @ 8.4 V.
- Precision potentiometer as position sensor. 2 ball bearings.
- Output spline 25T, 6 mm – matching CHASERVO aluminium arms see below.
- Programmable: centre, end points, direction and soft start with the CHASERVO Programming Tool (see accessories).
Applications
The classic 20 mm standard servo for turbine jets, aerobatic and large-scale models: control surfaces, gear doors and everything that demands torque and centering accuracy.
Technical data
| Dimensions | 40.5 x 20 x 23.1 mm |
| Weight | 56 g |
| Rated voltage | DC 7.4 V |
| Voltage range | DC 4.0 – 9.0 V |
| Output spline | 25T, 6 mm |
| Case material | Aluminium |
| Gear material | Metal gears |
| Ball bearings | 2 ball bearings |
| Position sensor | Potentiometer |
| Motor | 4-pole brushless |
| Operating frequency | 1520 µs / 333 Hz |
| Pulse width | 500 µs – 2500 µs |
| Programmable | Yes |
| Holding Torque | 30.0 kg·cm @ 6 V · 35.0 kg·cm @ 7.4 V · 40.0 kg·cm @ 8.4 V |
| Output Torque | 26.7 kg·cm @ 6 V · 30.2 kg·cm @ 7.4 V · 35.0 kg·cm @ 8.4 V |
| No-load Speed | 0.14 s/60° @ 6 V · 0.12 s/60° @ 7.4 V · 0.11 s/60° @ 8.4 V |
| max. Current | 4.0 A @ 6 V · 4.8 A @ 7.4 V · 5.8 A @ 8.4 V |
| Version | HV3512H |
Scope of delivery
Servo, plastic servo arm + 1 aluminium servo arm (25 mm), mounting hardware.
Matching accessories
- CHASERVO servo frame for HV3512H
- CHASERVO gear set HV3512
- Aluminium servo arms 25T/6 mm: servo arm 0625.0T red, servo arm 0625.11, servo arm 0625.23, servo arm 0625.23T, servo arm 0625.25T red, servo arm 0625.32, servo arm 0625.38, servo arm 0625.40, servo arm 0625.50, servo arm 0625.60, servo arm 25T-6B, servo arm 25T-6C, servo disc 0625.6D, double arm 0625.25T, double arm 0625.45 red with offset
- CHASERVO Programming Tool #5 for programming
Other versions: CHASERVO HV3512
Manufacturer data sheet as PDF in the downloads. Ships within one week.
