CHASERVO HV4613 – 20 mm HV servo, 50 kg
CHASERVO HV4613 – 20 mm HV servo, 50 kg
Product.Nr. CHA-HV4613
CHASERVO HV4613 – 20 mm HV servo, 50 kg: 46 kg·cm holding torque, 0.13 s/60° speed, 81 g, 40.5 x 20 x 40 mm.
product description
CHASERVO HV4613 – 20 mm HV servo, 50 kg

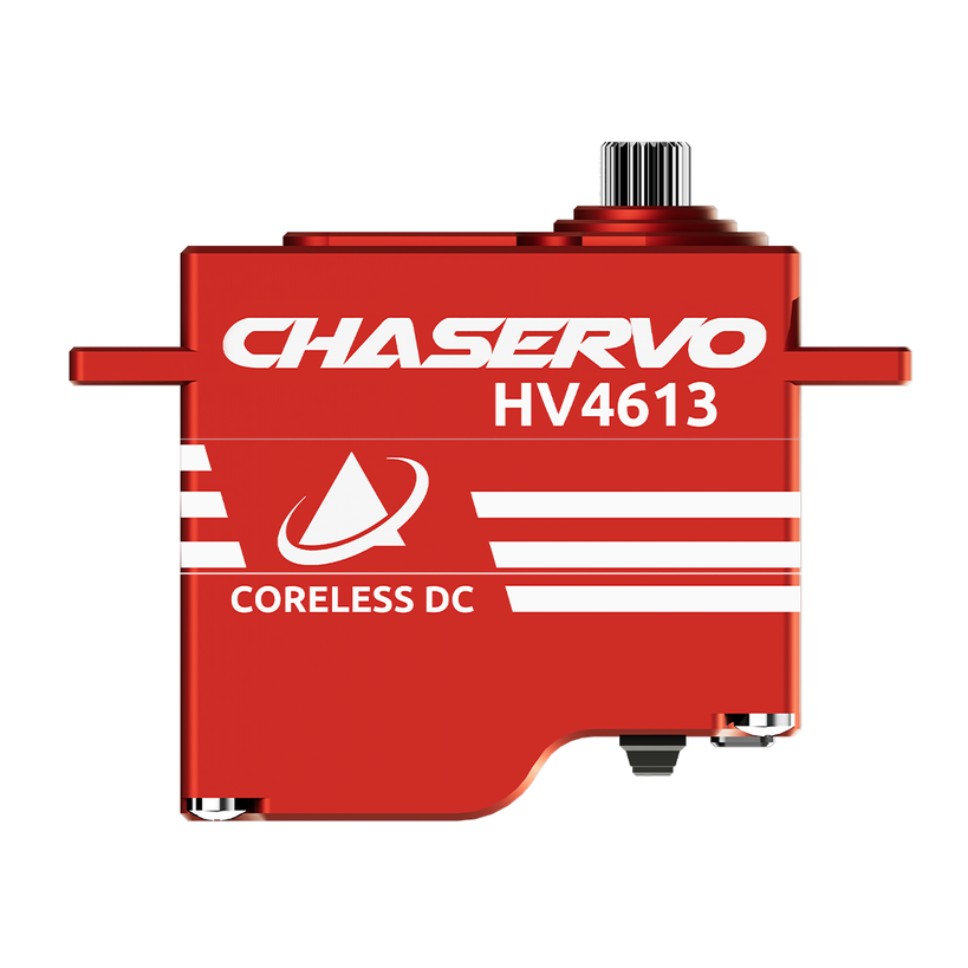

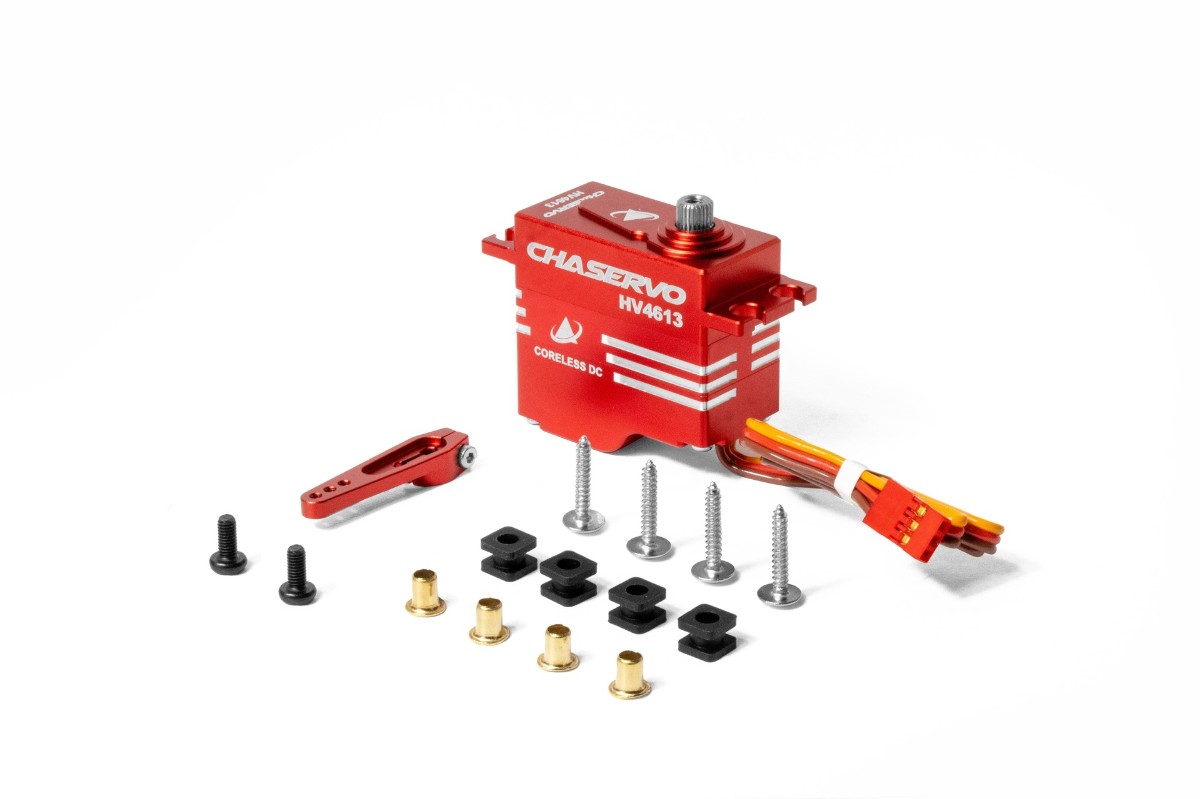

The CHASERVO HV4613 is a 20 mm thin HV servo (high voltage) with Coreless DC motor, aluminium case and metal gears. At 7.4 V it delivers 46 kg·cm holding torque (30 kg·cm output torque) and moves 60° in 0.13 s – weighing only 81 g.
- Voltage range 4.8 – 8.4 V – runs directly on a 2s LiPo (HV), no regulator needed.
- Holding torque 32 kg·cm @ 4.8 V · 40.0 kg·cm @ 6 V · 46 kg·cm @ 7.4 V · 50 kg·cm @ 8.4 V.
- Speed 0.20 s/60° @ 4.8 V · 0.16 s/60° @ 6 V · 0.13 s/60° @ 7.4 V · 0.12 s/60° @ 8.4 V.
- Precision potentiometer as position sensor. 2 ball bearings.
- Output spline 25T, 6 mm – matching CHASERVO aluminium arms see below.
- Programmable: centre, end points, direction and soft start with the CHASERVO Programming Tool (see accessories).
Applications
The classic 20 mm standard servo for turbine jets, aerobatic and large-scale models: control surfaces, gear doors and everything that demands torque and centering accuracy.
Technical data
| Weight | 81 g |
| Dimensions | 40.5 x 20 x 40 mm |
| Rated voltage | DC 7.4 V |
| Voltage range | DC 4.8 – 8.4 V |
| Output spline | 25T, 6 mm |
| Case material | Aluminium |
| Gear material | Metal gears |
| Ball bearings | 2 ball bearings |
| Position sensor | Potentiometer |
| Motor | Coreless DC |
| Operating frequency | 1520 µs / 333 Hz |
| Pulse width | 500 µs – 2500 µs |
| Programmable | Yes |
| Holding Torque | 32 kg·cm @ 4.8 V · 40.0 kg·cm @ 6 V · 46 kg·cm @ 7.4 V · 50 kg·cm @ 8.4 V |
| Output Torque | 20 kg·cm @ 4.8 V · 25 kg·cm @ 6 V · 30 kg·cm @ 7.4 V · 33 kg·cm @ 8.4 V |
| No-load Speed | 0.20 s/60° @ 4.8 V · 0.16 s/60° @ 6 V · 0.13 s/60° @ 7.4 V · 0.12 s/60° @ 8.4 V |
| max. Current | 4.85 A @ 6 V · 5.62 A @ 7.4 V · 6.45 A @ 8.4 V |
Matching accessories
- CHASERVO gear set HV4613
- Aluminium servo arms 25T/6 mm: servo arm 0625.0T red, servo arm 0625.11, servo arm 0625.23, servo arm 0625.23T, servo arm 0625.25T red, servo arm 0625.32, servo arm 0625.38, servo arm 0625.40, servo arm 0625.50, servo arm 0625.60, servo arm 25T-6B, servo arm 25T-6C, servo disc 0625.6D, double arm 0625.25T, double arm 0625.45 red with offset
- CHASERVO Programming Tool #5 for programming
Manufacturer data sheet as PDF in the downloads. Ships within one week.
Downloads
| file | file size |
|---|---|
| product_saftey_information_accessories.pdf (2.63 MB) | 2.63 MB |
| produktsicheheitshinweis_Zubehoer.pdf (2.63 MB) | 2.63 MB |
| CHASERVO_HV4613_Datenblatt.pdf (0.65 MB) | 0.65 MB |
