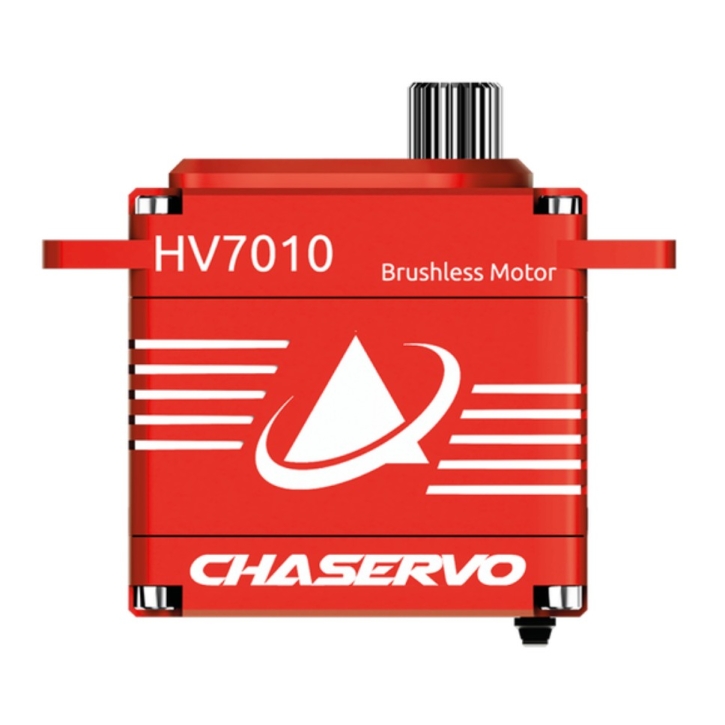

CHASERVO HV7010 – 20 mm HV servo, 70 kg
CHASERVO HV7010 – 20 mm HV servo, 70 kg
Product.Nr. CHA-HV7010
CHASERVO HV7010 – 20 mm HV servo, 70 kg: 60.0 kg·cm holding torque, 0.12 s/60° speed, 87 g, 40 x 20 x 40 mm.
product description
CHASERVO HV7010 – 20 mm HV servo, 70 kg
The CHASERVO HV7010 is a 20 mm thin HV servo (high voltage) with 4-pole brushless motor, aluminium case and metal gears. At 7.4 V it delivers 60.0 kg·cm holding torque (54.0 kg·cm output torque) and moves 60° in 0.12 s – weighing only 87 g.
- Voltage range 6.0 – 8.4 V – runs directly on a 2s LiPo (HV), no regulator needed.
- Holding torque 50.0 kg·cm @ 6 V · 60.0 kg·cm @ 7.4 V · 70 kg·cm @ 8.4 V.
- Speed 0.15 s/60° @ 6 V · 0.12 s/60° @ 7.4 V · 0.10 s/60° @ 8.4 V.
- Contactless Hall sensor – wear-free, no potentiometer noise. 6 ball bearings.
- Output spline 25T, 8 mm – matching CHASERVO aluminium arms see below.
- Programmable: centre, end points, direction and soft start with the CHASERVO Programming Tool (see accessories).
Applications
For the really big jobs: giant-scale aerobatics, 3 m jets and large models where heavily loaded control surfaces must be held precisely without giving way.
Technical data
| Dimensions | 40 x 20 x 40 mm |
| Weight | 87 g |
| Rated voltage | DC 7.4 V |
| Voltage range | DC 6.0 – 8.4 V |
| Output spline | 25T, 8 mm |
| Case material | Aluminium |
| Gear material | Metal gears |
| Position sensor | contactless (Hall sensor) |
| Motor | 4-pole brushless |
| Ball bearings | 6 ball bearings |
| Operating frequency | 1520 µs / 333 Hz |
| Pulse width | 500 µs – 2500 µs |
| Programmable | Yes |
| Holding Torque | 50.0 kg·cm @ 6 V · 60.0 kg·cm @ 7.4 V · 70 kg·cm @ 8.4 V |
| Output Torque | 45.0 kg·cm @ 6 V · 54.0 kg·cm @ 7.4 V · 63.0 kg·cm @ 8.4 V |
| No-load Speed | 0.15 s/60° @ 6 V · 0.12 s/60° @ 7.4 V · 0.10 s/60° @ 8.4 V |
| max. Current | 6.25 A @ 6 V · 7.52 A @ 7.4 V · 8.38 A @ 8.4 V |
Scope of delivery

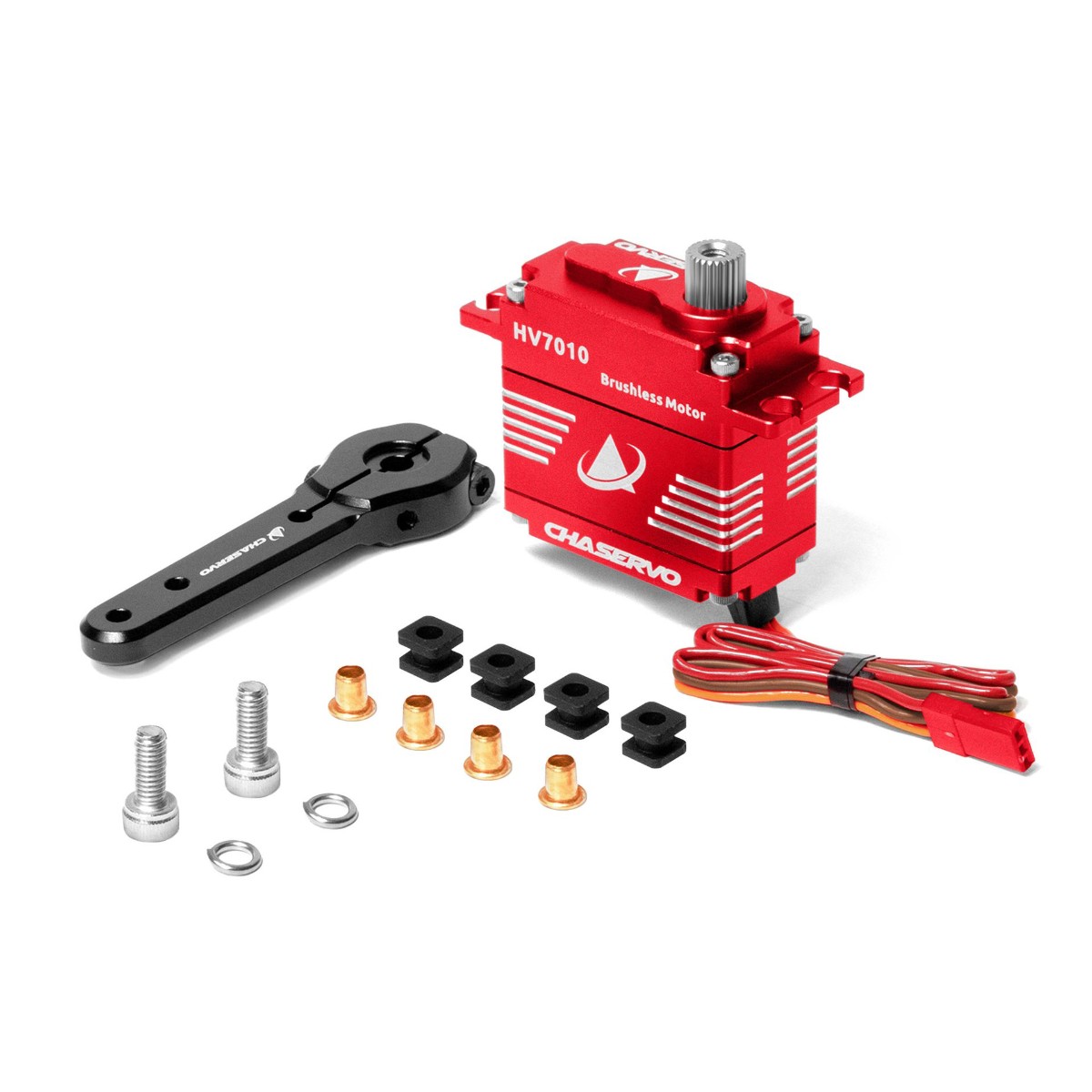

Servo, 50 mm aluminium servo arm (holes at 40 + 50 mm), mounting hardware.
Matching accessories
- CHASERVO servo frame for HV7010
- Aluminium servo arms 25T/8 mm: servo arm 0825.30, servo arm 0825.32, servo arm 0825.38, servo arm 0825.38 red, servo arm 0825.50, servo arm 0825 Single, servo disc 0825.11
- CHASERVO Programming Tool #5 for programming
Manufacturer data sheet as PDF in the downloads. Ships within one week.
Downloads
| file | file size |
|---|---|
| product_saftey_information_accessories.pdf (2.63 MB) | 2.63 MB |
| produktsicheheitshinweis_Zubehoer.pdf (2.63 MB) | 2.63 MB |
| CHASERVO_HV7010_Datenblatt.pdf (0.71 MB) | 0.71 MB |
