CHASERVO LV06H – 6 mm LV servo, 1.9 kg

Product.Nr. CHA-LV06H

CHASERVO LV06H – 6 mm LV servo, 1.9 kg: 1.45 kg·cm holding torque, 0.066 s/60° speed, 6.1 g, 19 x 6 x 18.5 mm.

  more details   Downloads   CHASERVO

product description

CHASERVO LV06H – 6 mm LV servo, 1.9 kg

The CHASERVO LV06H is a 6 mm thin LV servo (low voltage) with Coreless DC motor, aluminium case and metal gears. At 4.2 V it delivers 1.45 kg·cm holding torque (1.3 kg·cm output torque) and moves 60° in 0.066 s – weighing only 6.1 g. The H version is designed for horizontal (flat) installation in thin wings – see the data sheet in the downloads for the housing shape.

  • Low-voltage servo for 3.3 – 5.0 V: directly on a 1s LiPo or 4.8 V receiver pack – do not run on a 2s LiPo.
  • Holding torque 1.0 kg·cm @ 3.3 V · 1.45 kg·cm @ 4.2 V · 1.9 kg·cm @ 5 V.
  • Speed 0.077 s/60° @ 3.3 V · 0.066 s/60° @ 4.2 V · 0.055 s/60° @ 5 V.
  • Precision potentiometer as position sensor. 2 ball bearings.
  • Output spline 15T, 4 mm – matching CHASERVO aluminium arms see below.
  • Programmable: centre, end points, direction and soft start with the CHASERVO Programming Tool (see accessories).

Applications

As thin as it gets: the servo disappears completely inside slim wing profiles and is the first choice for ailerons, camber and landing flaps on gliders (F3K, F3J, F5J, slope) as well as on small jets and electric models.

Technical data

Dimensions19 x 6 x 18.5 mm
Weight6.1 g
Output spline15T, 4 mm
Rated voltageDC 4.2 V
Voltage rangeDC 3.3 – 5.0 V
Case materialAluminium
Gear materialMetal gears
Ball bearings2 ball bearings
Position sensorPotentiometer
MotorCoreless DC
Operating frequency1520 µs / 20 kHz
Pulse width900 µs – 2100 µs
ProgrammableYes
Holding Torque1.0 kg·cm @ 3.3 V · 1.45 kg·cm @ 4.2 V · 1.9 kg·cm @ 5 V
Output Torque1.0 kg·cm @ 3.3 V · 1.3 kg·cm @ 4.2 V · 1.7 kg·cm @ 5 V
No-load Speed0.077 s/60° @ 3.3 V · 0.066 s/60° @ 4.2 V · 0.055 s/60° @ 5 V
max. Current0.39 A @ 3.3 V · 0.64 A @ 4.2 V · 0.79 A @ 5 V
VersionLV06H

Scope of delivery

Servo, plastic servo arm, mounting hardware.

Matching accessories

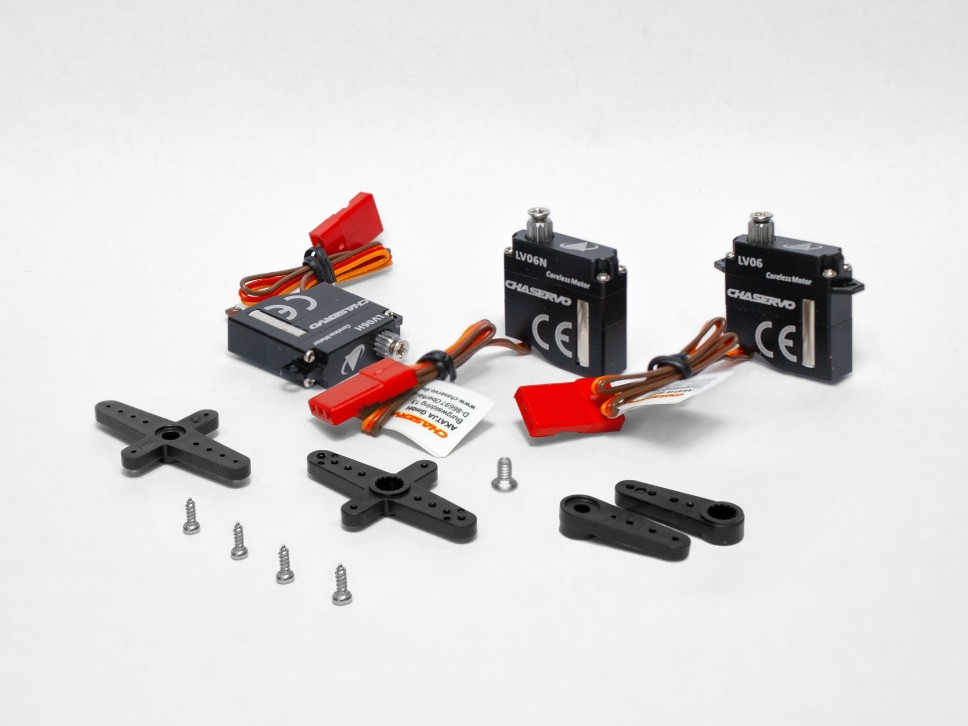

Other versions: CHASERVO LV06, CHASERVO LV06N

Ships within one week.
