KST X10 Mini Pro B V8.0 8,0 kg·cm @ 8,4 Volt / Softstart
KST X10 Mini Pro B V8.0 8,0 kg·cm @ 8,4 Volt / Softstart
Product.Nr. KST-0119
KST X10 Mini Pro B V8.0 8,0 kg·cm @ 8,4 Volt / Softstart: 8,0 kg·cm torque at 8,4V, 0,08 s/60° speed, 20,0 g weight.
product description
KST X10 Mini Pro B V8.0 8,0 kg·cm @ 8,4 Volt / Softstart
The KST X10 Mini Pro B V8.0 8,0 kg·cm @ 8,4 Volt / Softstart is a 10 mm servo by KST with coreless motor, gears made of hardened steel and 2 ball bearings. Key figures: 8,0 kg·cm torque at 8,4V, 0,08 s/60° speed, 20,0 g weight. The 10 mm class is the all-rounder for gliders and electric models – in the fuselage as well as in the wing.
- HV capable – designed for operation at the stated voltage (e.g. 2s LiPo).
- Programmable with the KST programmer (Tool #5 or Tool #3).
- Version for standing mount.
Specifications
| Operating voltage | 4,8 - 8,4 V |
| Torque | 4,5 kg·cm @ 4,8V · 6,0 kg·cm @ 6,0V · 7,2 kg·cm @ 7,4V · 8,0 kg·cm @ 8,4V |
| Speed | 0,13 s/60° @ 4,8V · 0,11 s/60° @ 6,0V · 0,09 s/60° @ 7,4V · 0,08 s/60° @ 8,4V |
| Width | 10,0 mm |
| Length | 30,0 mm |
| Height | 28,0 mm |
| Weight | 20,0 g |
| Motor | Coreless |
| Signal / frequency | 1520us/333Hz, 1000us-2000us |
| Gears | Stahl |
| Bearings | 2BB |
| Spline | 25T-5 |
| Servo type | Flächenservo |
| Electronics | Digital |
| Position sensor | Potentiometer |
| Waterproof | nein |
| Soft start | ja |
| Programmable | Ja |

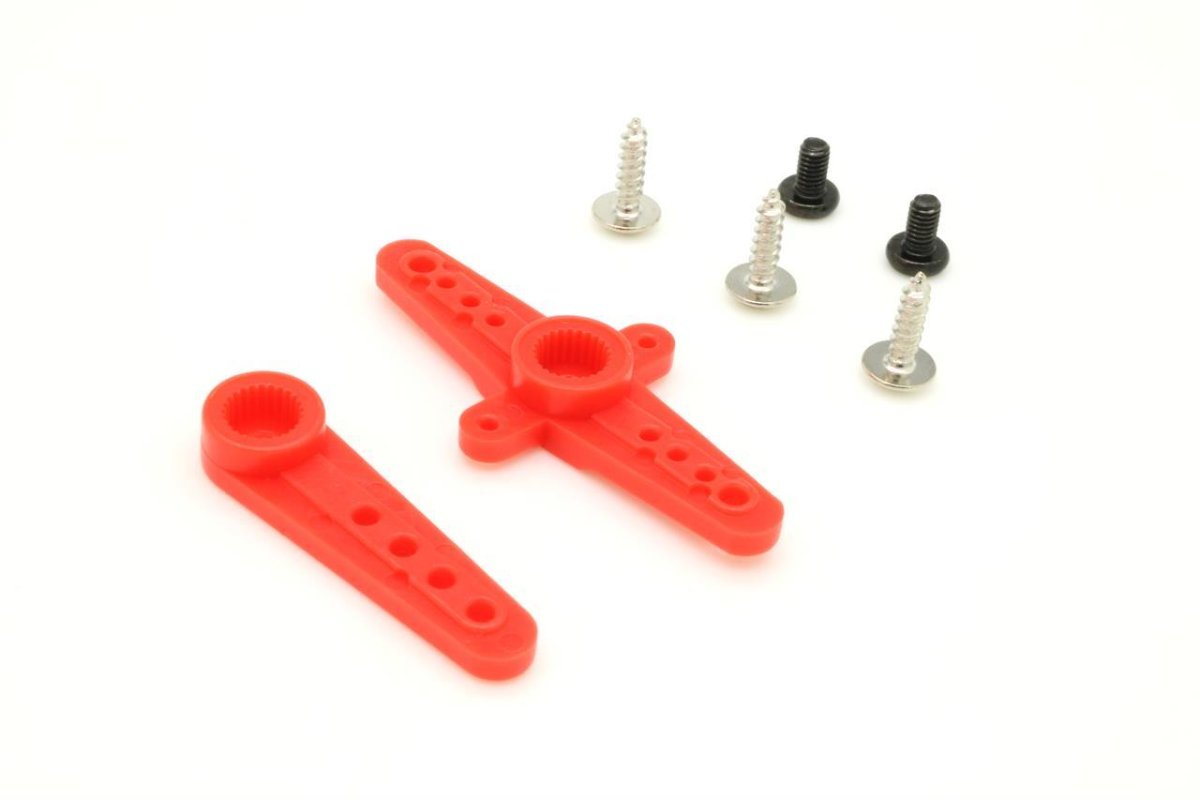

Matching servo arms, frames, replacement gears and leads are listed under KST accessories. Please observe the servo recommendation of the model manufacturer – we are happy to advise on the choice.
