KST X10 Pro A V8.0 11,5 kg·cm @ 8,4 Volt Softstart / 5cm Kabel
KST X10 Pro A V8.0 11,5 kg·cm @ 8,4 Volt Softstart / 5cm Kabel
Product.Nr. KST-0115
KST X10 Pro A V8.0 11,5 kg·cm @ 8,4 Volt Softstart / 5cm Kabel: 11,5 kg·cm torque at 8,4V, 0,10 s/60° speed, 25,0 g weight.
product description
KST X10 Pro A V8.0 11,5 kg·cm @ 8,4 Volt Softstart / 5cm Kabel

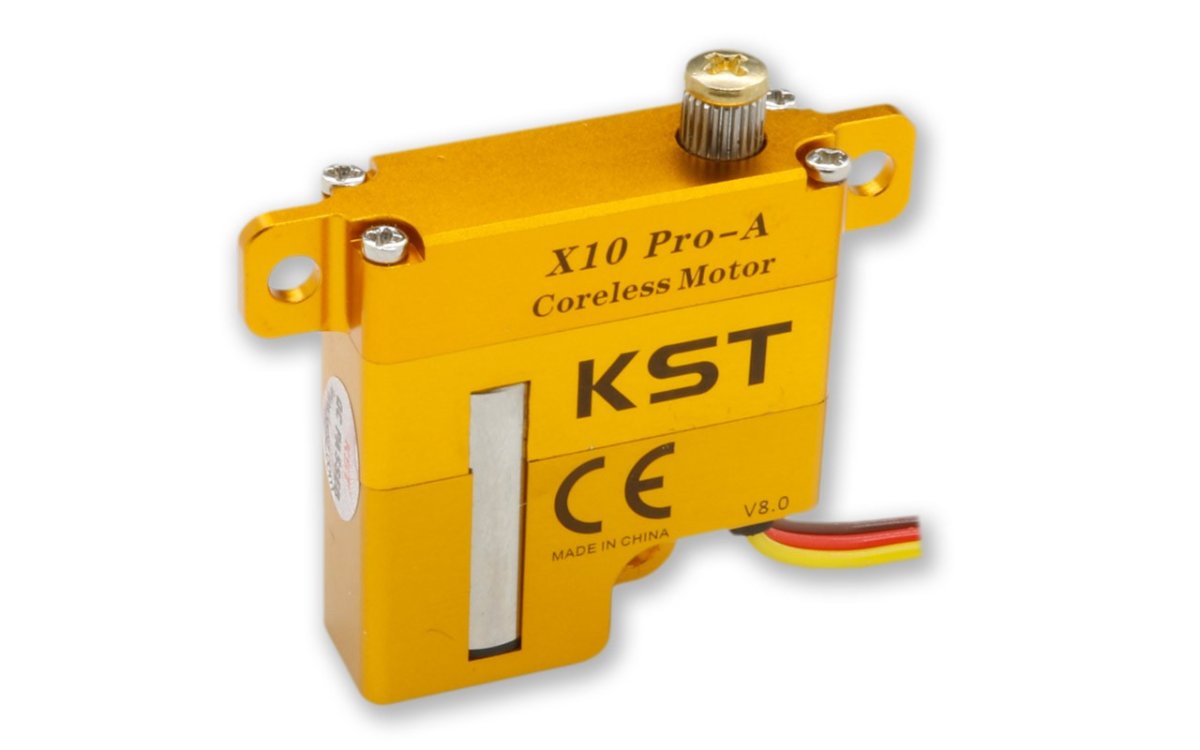

The KST X10 Pro A V8.0 11,5 kg·cm @ 8,4 Volt Softstart / 5cm Kabel is a 10 mm servo by KST with coreless motor, gears made of Full hardened Steel and 2 ball bearings. Key figures: 11,5 kg·cm torque at 8,4V, 0,10 s/60° speed, 25,0 g weight. As a slim wing servo it fits thin airfoils and drives ailerons and flaps directly and without play.
- HV capable – designed for operation at the stated voltage (e.g. 2s LiPo).
- Version for lying mount.
Specifications
| Operating voltage | 4.8 - 8.4 V |
| Torque | 6,5 kg·cm @ 4,8V · 8,5 kg·cm @ 6,0V · 10,5 kg·cm @ 7,4V · 11,5 kg·cm @ 8,4V |
| Speed | 0,16 s/60° @ 4,8V · 0,14 s/60° @ 6,0V · 0,12 s/60° @ 7,4V · 0,10 s/60° @ 8,4V |
| Width | 10,0 mm |
| Length | 30,0 mm |
| Height | 33,5 mm |
| Weight | 25,0 g |
| Motor | Coreless |
| Signal / frequency | 1520us/333Hz |
| Gears | Full hardened Steel |
| Bearings | 2BB |
| Spline | 25T-5 |
| Servo type | Normal |
| Electronics | Digital |
| Position sensor | Potentiometer |
| Waterproof | Nein |
| Soft start | Ja / Programmierbar |
Matching servo arms, frames, replacement gears and leads are listed under KST accessories. Please observe the servo recommendation of the model manufacturer – we are happy to advise on the choice.
Downloads
| file | file size |
|---|---|
| product_saftey_information_accessories.pdf (2.63 MB) | 2.63 MB |
| produktsicheheitshinweis_Zubehoer.pdf (2.63 MB) | 2.63 MB |
