KST DS113MG V6.0 3.5 kg·cm @ 8.4 V
KST DS113MG V6.0 3.5 kg·cm @ 8.4 V
Product.Nr. KST-0822
KST DS113MG V6.0 3.5 kg·cm @ 8.4 V: 3,5 kg·cm torque at 8,4V, 0,09 s/60° speed, 12,0 g weight.
product description

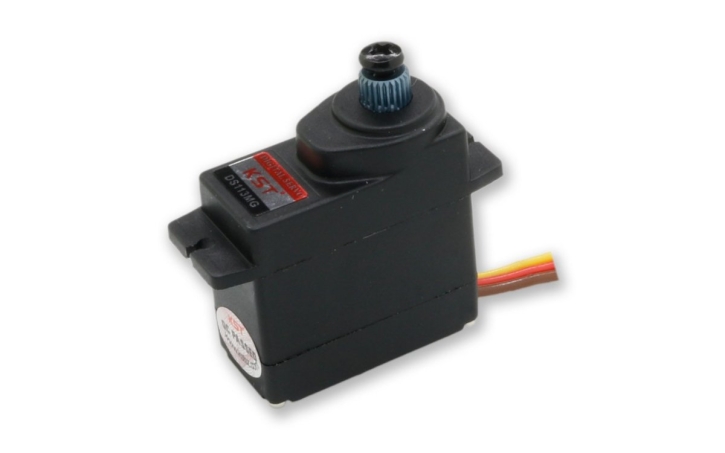

KST DS113MG V6.0 3.5 kg·cm @ 8.4 V
The KST DS113MG V6.0 3.5 kg·cm @ 8.4 V is a mini servo (11–13 mm) by KST with cored motor, gears made of metal and 1 ball bearings. Key figures: 3,5 kg·cm torque at 8,4V, 0,09 s/60° speed, 12,0 g weight. As a mini servo it fits fuselages, tails and wings of mid-size models.
- HV capable – designed for operation at the stated voltage (e.g. 2s LiPo).
- Programmable with the KST programmer (Tool #5 or Tool #3).
Specifications
| Operating voltage | 4,8 - 8,4 V |
| Torque | 2,0 kg·cm @ 4,8V · 2,5 kg·cm @ 6,0V · 3,0 kg·cm @ 7,4V · 3,5 kg·cm @ 8,4V |
| Speed | 0,13 s/60° @ 4,8V · 0,11 s/60° @ 6,0V · 0,10 s/60° @ 7,4V · 0,09 s/60° @ 8,4V |
| Width | 12,0 mm |
| Length | 24,0 mm |
| Height | 26,3 mm |
| Weight | 12,0 g |
| Motor | Core Motor |
| Signal / frequency | 1520us/333Hz, 1000us-2000us |
| Gears | Metall |
| Bearings | 1BB |
| Spline | 25T-5 |
| Servo type | Mini |
| Electronics | Digital |
| Position sensor | Potentiometer |
| Waterproof | nein |
| Soft start | Programmierbar |
| Programmable | Ja |

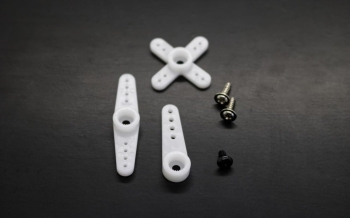

Matching servo arms, frames, replacement gears and leads are listed under KST accessories. Please observe the servo recommendation of the model manufacturer – we are happy to advise on the choice.
