KST SV12-12 9 kg·cm @ 13 V (8,4-13 V)
KST SV12-12 9 kg·cm @ 13 V (8,4-13 V)
Product.Nr. KST-2508
KST SV12-12 9 kg·cm @ 13 V (8,4-13 V): 6,5 kg·cm torque at 8,4V, 0,15 s/60° speed, 20,0 g weight.
product description
KST SV12-12 9 kg·cm @ 13 V (8,4-13 V)
The KST SV12-12 9 kg·cm @ 13 V (8,4-13 V) is a mini servo (11–13 mm) by KST with coreless motor, gears made of hardened steel and 2 ball bearings. Key figures: 6,5 kg·cm torque at 8,4V, 0,15 s/60° speed, 20,0 g weight. As a mini servo it fits fuselages, tails and wings of mid-size models.
- HV capable – designed for operation at the stated voltage (e.g. 2s LiPo).
- Programmable with the KST programmer (Tool #5 or Tool #3).
Specifications
| Operating voltage | 8,4 - 13,0 V |
| Torque | 6,5 kg·cm @ 8,4V · 8,0 kg·cm @ 12,0V · 9,0 kg·cm @ 13,0V |
| Speed | 0,15 s/60° @ 8,4V · 0,11 s/60° @ 12,0V · 0,10 s/60° @ 13,0V |
| Width | 12,0 mm |
| Length | 23,0 mm |
| Height | 27,0 mm |
| Weight | 20,0 g |
| Motor | Coreless |
| Signal / frequency | 1520us/333Hz, 1000us-2000us |
| Gears | Stahl |
| Bearings | 2BB |
| Spline | 25T-5 |
| Servo type | Mini |
| Electronics | Digital |
| Position sensor | Potentiometer |
| Waterproof | Nein |
| Soft start | Programmierbar |
| Programmable | Ja |

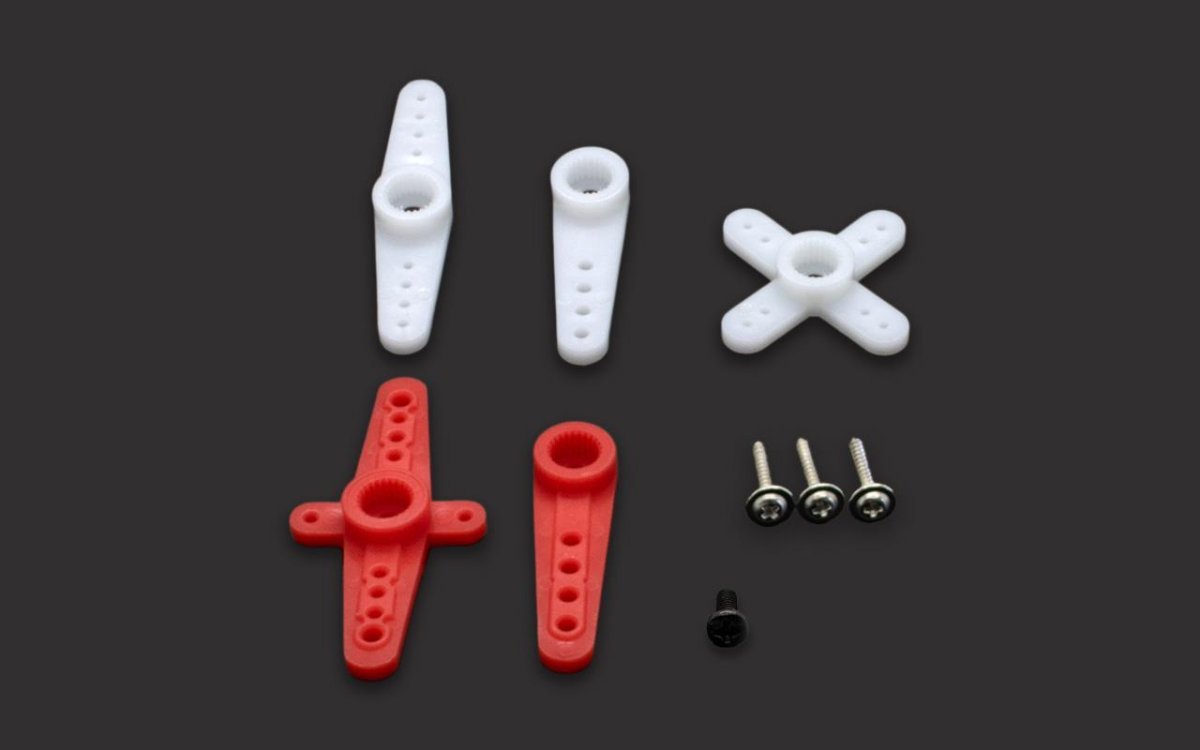

Matching servo arms, frames, replacement gears and leads are listed under KST accessories. Please observe the servo recommendation of the model manufacturer – we are happy to advise on the choice.
