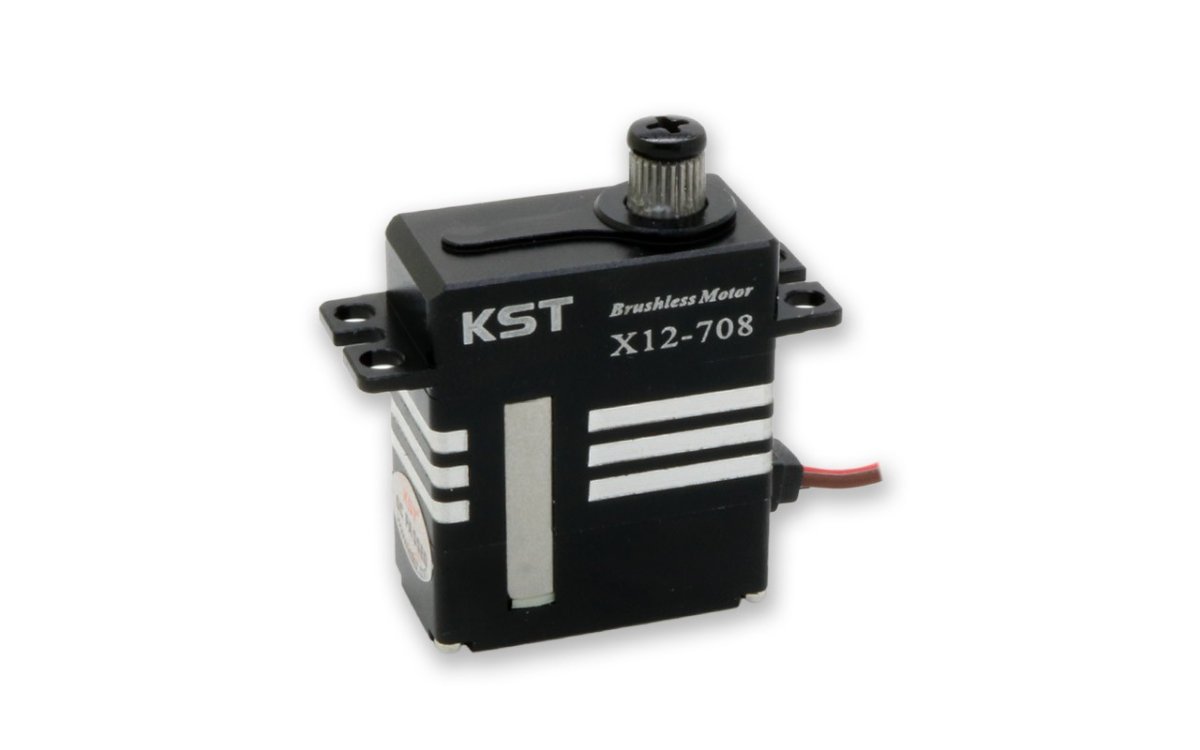

KST X12-708 V8.0 9.3 kg·cm @ 8.4 V Brushless Motor
KST X12-708 V8.0 9.3 kg·cm @ 8.4 V Brushless Motor
Product.Nr. KST-0206
KST X12-708 V8.0 9.3 kg·cm @ 8.4 V Brushless Motor: 9,3 kg·cm torque at 8,4V, 0,07 s/60° speed, 20,0 g weight.
product description
KST X12-708 V8.0 9.3 kg·cm @ 8.4 V Brushless Motor
The KST X12-708 V8.0 9.3 kg·cm @ 8.4 V Brushless Motor is a mini servo (11–13 mm) by KST with brushless motor, gears made of hardened steel and 2 ball bearings. Key figures: 9,3 kg·cm torque at 8,4V, 0,07 s/60° speed, 20,0 g weight. As a mini servo it fits fuselages, tails and wings of mid-size models.
- HV capable – designed for operation at the stated voltage (e.g. 2s LiPo).
- Programmable with the KST programmer (Tool #5 or Tool #3).
Specifications
| Operating voltage | 6,0 - 8,4 V |
| Torque | 6,3 kg·cm @ 6,0V · 8,6 kg·cm @ 7,4V · 9,3 kg·cm @ 8,4V |
| Speed | 0,09 s/60° @ 6,0V · 0,08 s/60° @ 7,4V · 0,07 s/60° @ 8,4V |
| Width | 12,0 mm |
| Length | 23,0 mm |
| Height | 27,5 mm |
| Weight | 20,0 g |
| Motor | Brushless |
| Signal / frequency | 1520us/333Hz, 1000us-2000us |
| Gears | Stahl |
| Bearings | 2BB |
| Spline | 25T-5 |
| Servo type | Mini |
| Electronics | Digital |
| Position sensor | Potentiometer |
| Waterproof | Nein |
| Soft start | Programmierbar |
| Programmable | Ja |
Matching servo arms, frames, replacement gears and leads are listed under KST accessories. Please observe the servo recommendation of the model manufacturer – we are happy to advise on the choice.
