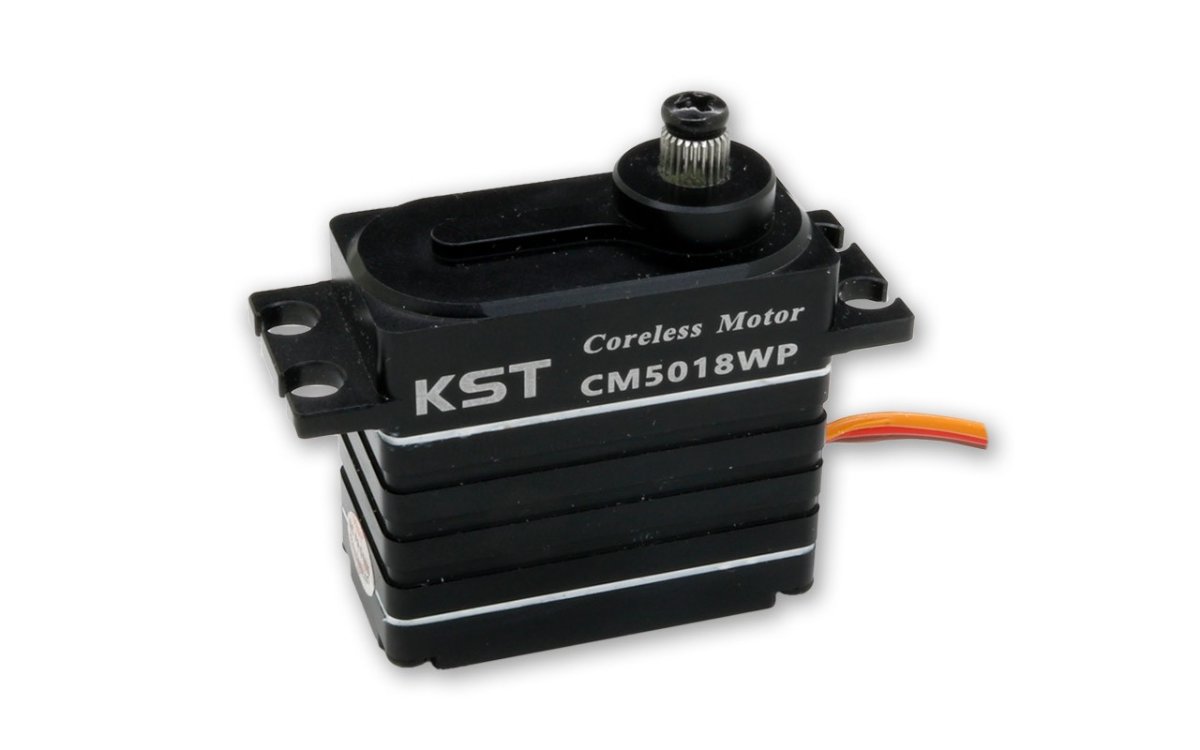

KST CM5018WP V6.0 50 kg·cm @ 8,4 Volt IP67
KST CM5018WP V6.0 50 kg·cm @ 8,4 Volt IP67
Product.Nr. KST-2402
KST CM5018WP V6.0 50 kg·cm @ 8,4 Volt IP67: 50,0 kg·cm torque at 8,4V, 0,18 s/60° speed, 80,0 g weight.
product description
KST CM5018WP V6.0 50 kg·cm @ 8,4 Volt IP67
The KST CM5018WP V6.0 50 kg·cm @ 8,4 Volt IP67 is a standard servo (20 mm) by KST with coreless motor, gears made of hardened steel and 2 ball bearings. Key figures: 50,0 kg·cm torque at 8,4V, 0,18 s/60° speed, 80,0 g weight. The Clubman series brings metal gears and HV electronics at a price that suits club and everyday models.
- HV capable – designed for operation at the stated voltage (e.g. 2s LiPo).
- Water and dust protected according to the manufacturer.
- Programmable with the KST programmer (Tool #5 or Tool #3).
Specifications
| Operating voltage | 4,8 - 8,4 V |
| Torque | 35,0 kg·cm @ 4,8V · 40,0 kg·cm @ 6,0V · 45,0 kg·cm @ 7,4V · 50,0 kg·cm @ 8,4V |
| Speed | 0,25 s/60° @ 4,8V · 0,23 s/60° @ 6,0V · 0,20 s/60° @ 7,4V · 0,18 s/60° @ 8,4V |
| Stall current | 4,68 A @ 4,8V · 5,70 A @ 6,0V · 7,25 A @ 7,4V · 8,15 A @ 8,4V |
| Width | 20,5 mm |
| Length | 40,5 mm |
| Height | 41,3 mm |
| Weight | 80,0 g |
| Motor | Coreless |
| Signal / frequency | 1520us/333Hz, 1000us-2000us |
| Gears | Stahl |
| Bearings | 2BB |
| Spline | 25T-6 |
| Servo type | Standard, wasserdicht |
| Electronics | Digital |
| Position sensor | Potentiometer |
| Waterproof | Ja |
| Soft start | Programmierbar |
| Programmable | Ja |
Matching servo arms, frames, replacement gears and leads are listed under KST accessories. Please observe the servo recommendation of the model manufacturer – we are happy to advise on the choice.
