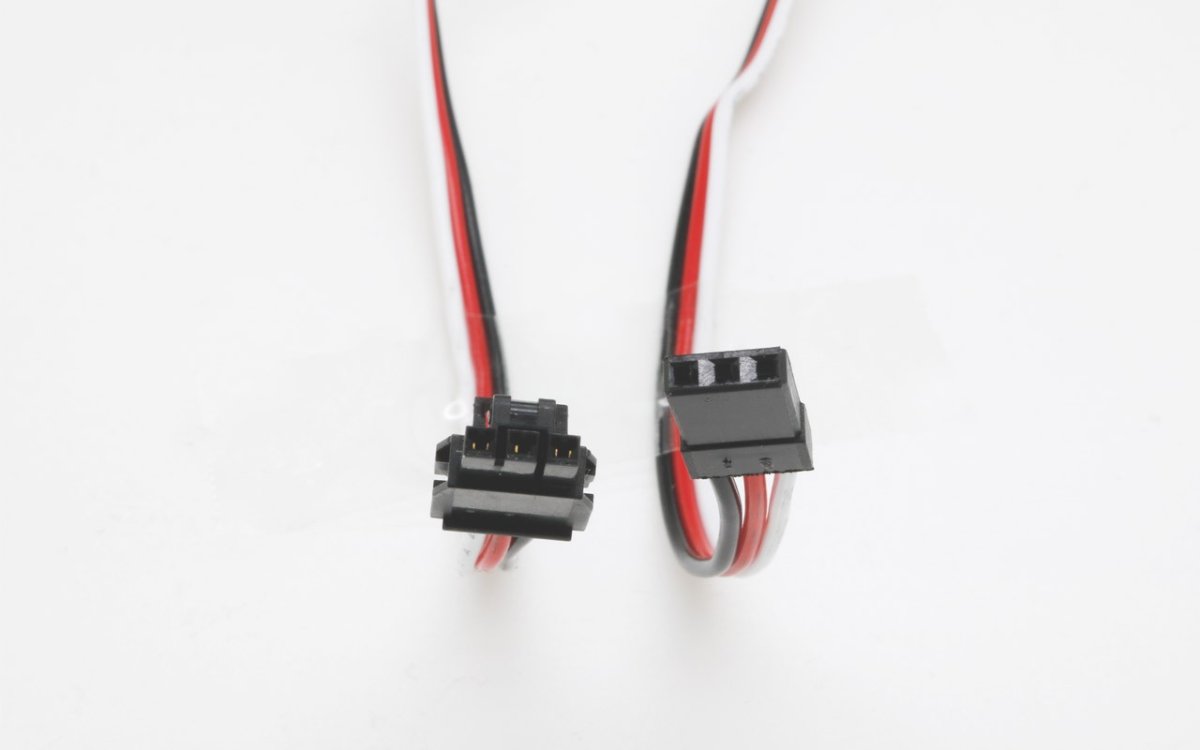

KST HA20-7512 V8.0 82 kg·cm @ 8,4 V Stecksystem
KST HA20-7512 V8.0 82 kg·cm @ 8,4 V Stecksystem
Product.Nr. KST-2701
product description
KST HA20-7512 V8.0 82 kg·cm @ 8,4 V Stecksystem

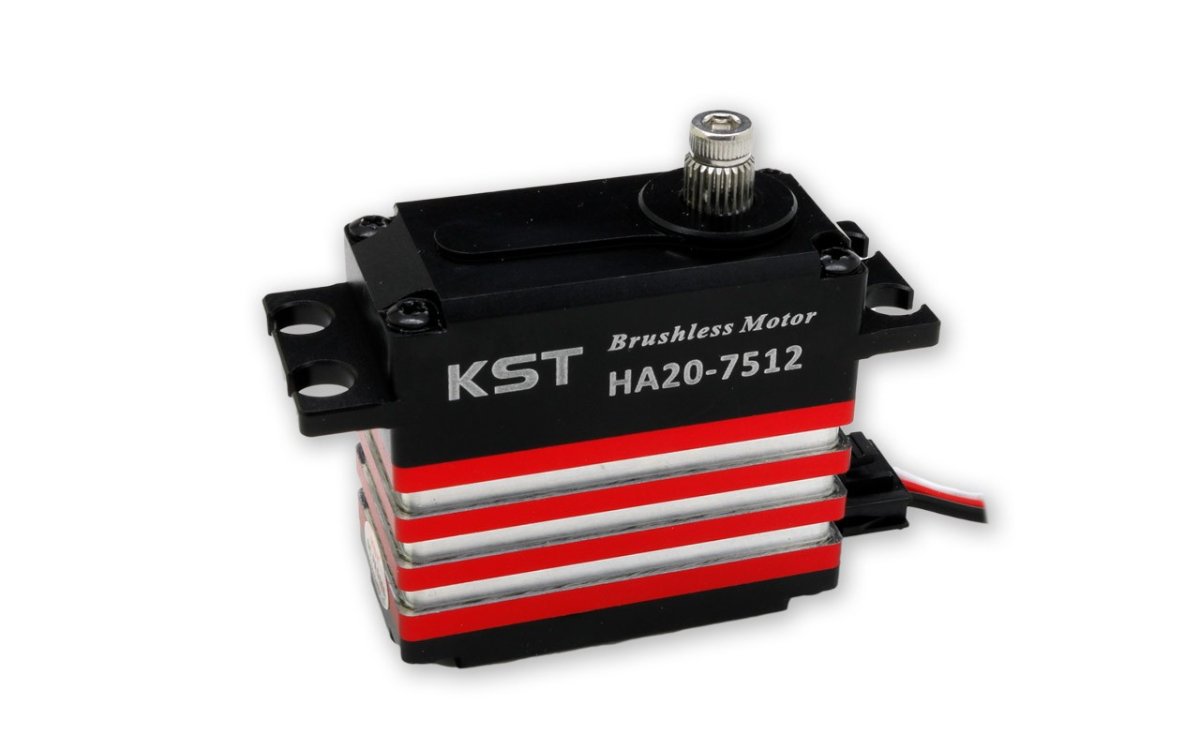

The KST HA20-7512 V8.0 82 kg·cm @ 8,4 V Stecksystem is a standard servo (20 mm) by KST with brushless motor, gears made of hardened steel and 2 ball bearings. Key figures: 82,0 kg·cm torque at 8,4V, 0,11 s/60° speed, 70,0 g weight. The 4-pole brushless drive runs virtually wear-free, draws little current and holds position steadily under load – made for jets and large aerobatic models.
- HV capable – designed for operation at the stated voltage (e.g. 2s LiPo).
- Programmable with the KST programmer (Tool #5 or Tool #3).
Specifications
| Operating voltage | 6,0 - 8,4 V |
| Torque | 65,0 kg·cm @ 6,0V · 75,0 kg·cm @ 7,4V · 82,0 kg·cm @ 8,4V |
| Speed | 0,14 s/60° @ 6,0V · 0,12 s/60° @ 7,4V · 0,11 s/60° @ 8,4V |
| Stall current | 8,80 A @ 6,0V · 10,8 A @ 7,4V · 12,3 A @ 8,4V |
| Width | 20,0 mm |
| Length | 40,5 mm |
| Height | 38,0 mm |
| Weight | 70,0 g |
| Motor | 4 Pole Brushless |
| Signal / frequency | 1520us/333Hz, 1000us-2000us |
| Gears | Stahl |
| Bearings | 2BB |
| Spline | 25T-6 |
| Servo type | Standard |
| Electronics | Digital |
| Position sensor | Potentiometer |
| Waterproof | Nein |
| Soft start | Programmierbar |
| Programmable | Ja |
Matching servo arms, frames, replacement gears and leads are listed under KST accessories. Please observe the servo recommendation of the model manufacturer – we are happy to advise on the choice.
