KST SV5006-12 50 kg·cm - 0,068s/60° @ 12.0 V HLS
KST SV5006-12 50 kg·cm - 0,068s/60° @ 12.0 V HLS
Product.Nr. KST-2514
product description
KST SV5006-12 50 kg·cm - 0,068s/60° @ 12.0 V HLS
The KST SV5006-12 50 kg·cm - 0,068s/60° @ 12.0 V HLS is a standard servo (20 mm) by KST with brushless motor, gears made of hardened steel and 6 ball bearings. Key figures: 40,0 kg·cm torque at 8,4V, 0,100 s/60° speed, 75,0 g weight. The 4-pole brushless drive runs virtually wear-free, draws little current and holds position steadily under load – made for jets and large aerobatic models.
- HV capable – designed for operation at the stated voltage (e.g. 2s LiPo).
- Programmable with the KST programmer (Tool #5 or Tool #3).
Specifications
| Operating voltage | 8,4 – 13,0 V |
| Torque | 40,0 kg·cm @ 8,4V · 50,0 kg·cm @ 12,0V · 55,0 kg·cm @ 13,0V |
| Speed | 0,100 s/60° @ 8,4V · 0,068 s/60° @ 12,0V · 0,063 s/60° @ 13,0V |
| Width | 20,0 mm |
| Length | 40,0 mm |
| Height | 40,0 mm |
| Weight | 75,0 g |
| Motor | 4 Pole Brushless |
| Signal / frequency | 1520us/333Hz, 500us-2500us |
| Gears | Stahl |
| Bearings | 6BB / High Life Span |
| Spline | 25T-6 |
| Servo type | Standard |
| Electronics | Digital |
| Position sensor | Potentiometer |
| Waterproof | Nein |
| Soft start | Programmierbar |
| Programmable | Ja |

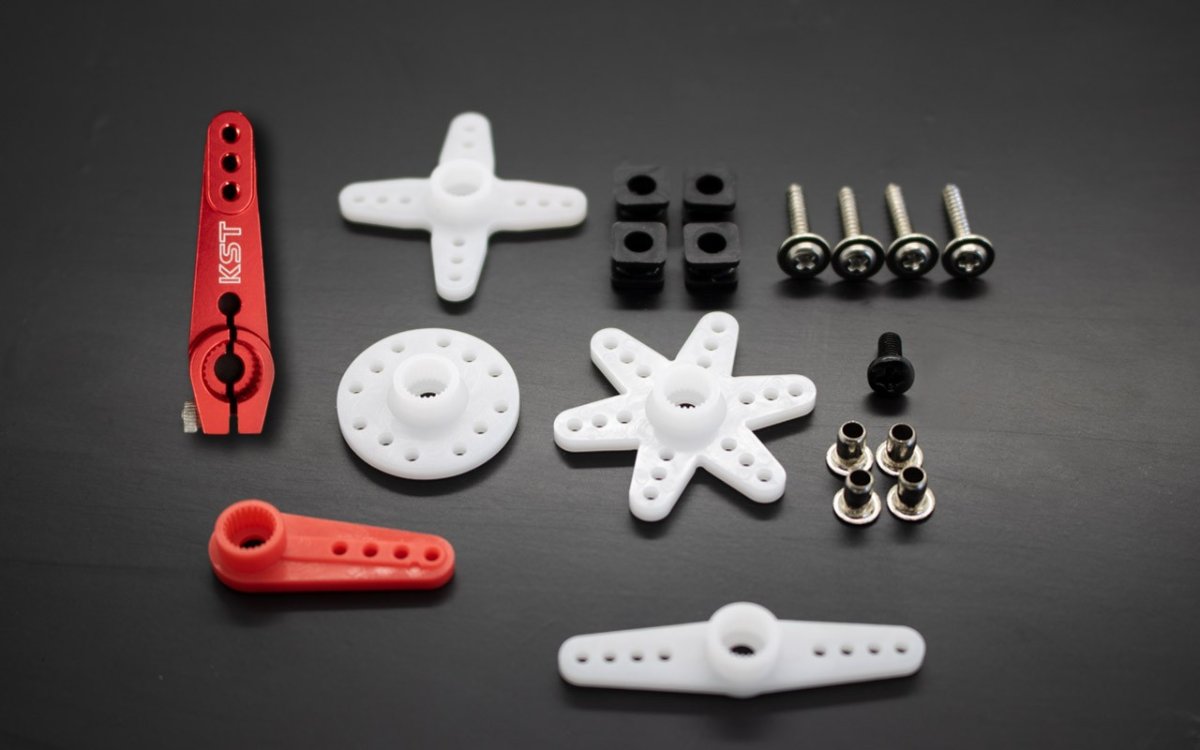

Matching servo arms, frames, replacement gears and leads are listed under KST accessories. Please observe the servo recommendation of the model manufacturer – we are happy to advise on the choice.
