KST X06 V6.0 F3K, F5K, RES, 1,8 kg·cm @ 8,4 V
KST X06 V6.0 F3K, F5K, RES, 1,8 kg·cm @ 8,4 V
Product.Nr. KST-0053
KST X06 V6.0 F3K, F5K, RES, 1,8 kg·cm @ 8,4 V: 1,8 kg·cm torque at 8,4V, 0,07 s/60° speed, ca. 6,0 weight.
product description
KST X06 V6.0 F3K, F5K, RES, 1,8 kg·cm @ 8,4 V

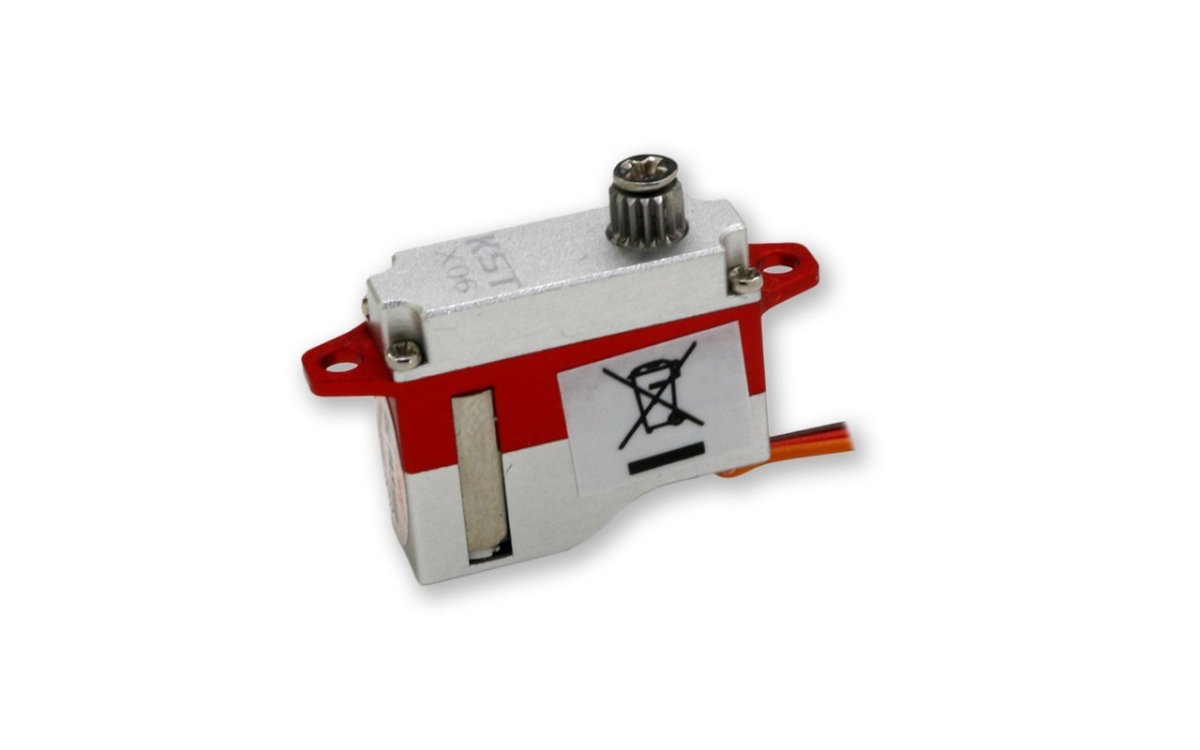

The KST X06 V6.0 F3K, F5K, RES, 1,8 kg·cm @ 8,4 V is a 7 mm servo by KST with coreless motor, gears made of hardened steel and 1 ball bearings. Key figures: 1,8 kg·cm torque at 8,4V, 0,07 s/60° speed, ca. 6,0 weight. At 7 mm thickness it disappears into the thinnest F3K and DLG wings.
- HV capable – designed for operation at the stated voltage (e.g. 2s LiPo).
- Version for standing mount.
Specifications
| Operating voltage | 3,8 - 8.4 V |
| Torque | 0,8 kg·cm @ 3,8V · 1,5 kg·cm @ 6,0V · 1,7 kg·cm @ 7,4V · 1,8 kg·cm @ 8,4V |
| Speed | 0,12 s/60° @ 3,8V · 0,08 s/60° @ 6,0V · 0,075 s/60° @ 7,4V · 0,07 s/60° @ 8,4V |
| Width | 7,0 mm |
| Length | 20,0 mm |
| Height | 16,6 mm |
| Weight | ca. 6,0 |
| Motor | Coreless |
| Signal / frequency | 1520us/333Hz, 1000us-2000us |
| Gears | Stahl |
| Bearings | 1BB |
| Spline | 15T-4 |
| Servo type | F3K/ F5K /RES |
| Electronics | Digital |
| Position sensor | Potentiometer |
| Waterproof | Nein |
| Soft start | Programmierbar |
Matching servo arms, frames, replacement gears and leads are listed under KST accessories. Please observe the servo recommendation of the model manufacturer – we are happy to advise on the choice.
