JetCat P100-RX-BL – 100 N turbine with brushless pump
2.499,00 EUR
incl. 19 % VAT excl. shipping costs
weight 1,68 kg
delivery time auf Anfrage
Verfügbar!
JetCat P100-RX-BL – 100 N turbine with brushless pump
Product.Nr. JC-P100-RX-BL
product description

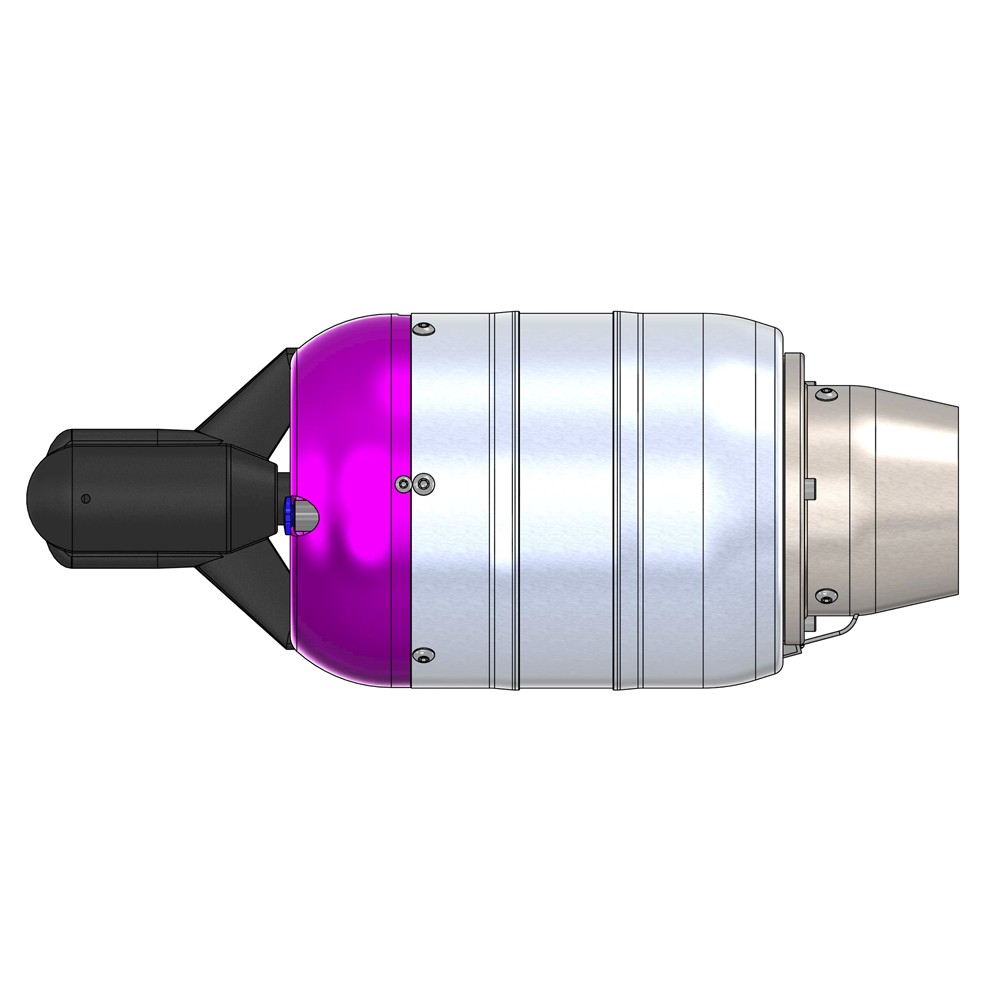

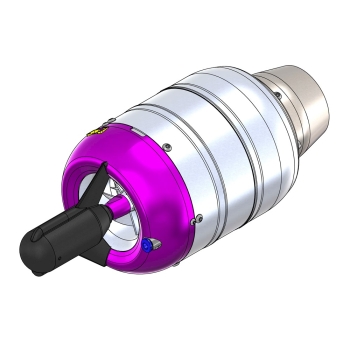

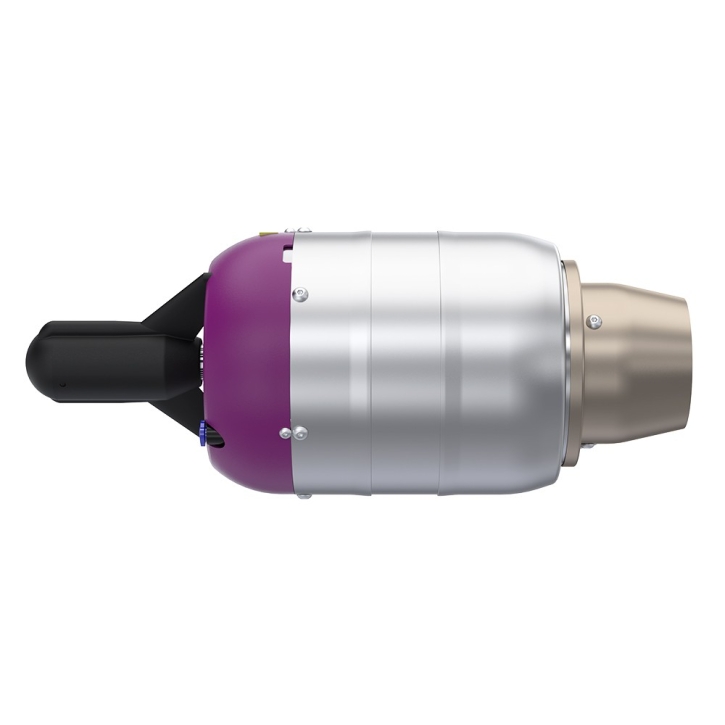

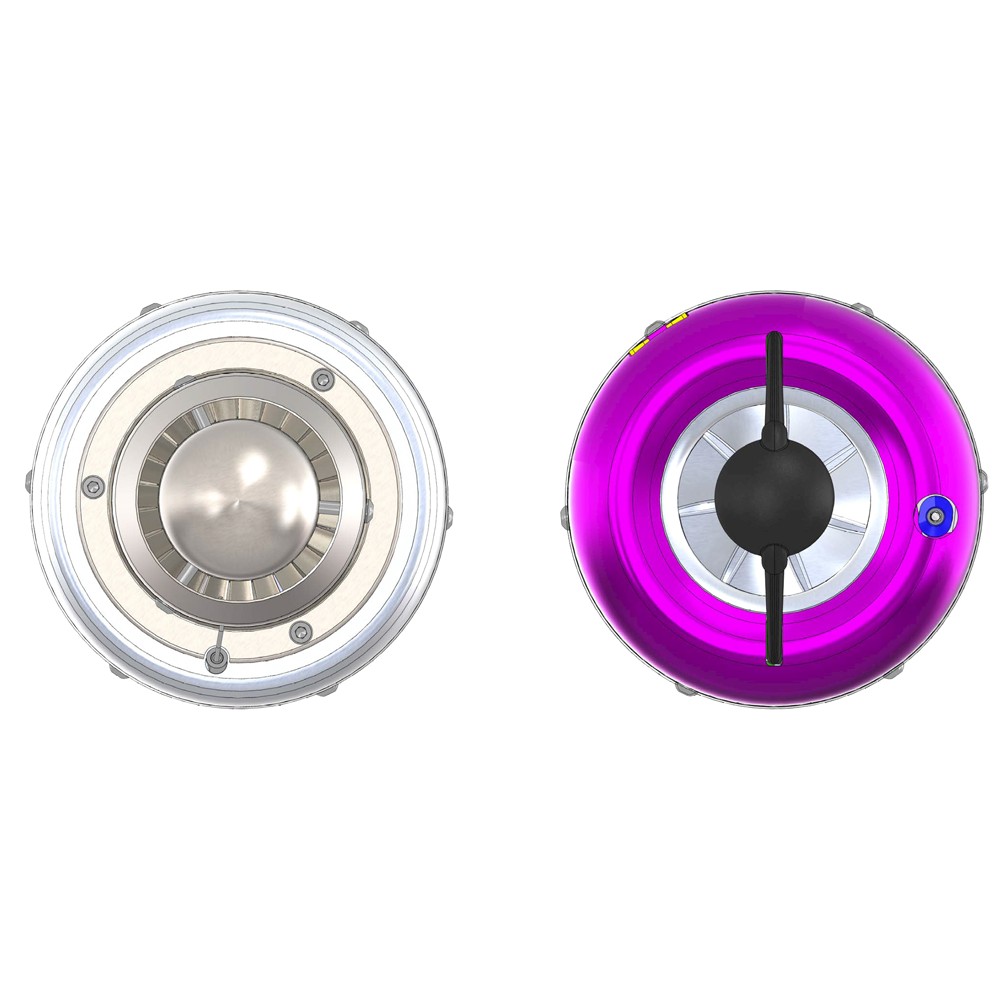

JetCat P100-RX-BL – 100 N turbine with brushless pump
The JetCat P100-RX-BL is the entry into the RX generation: 100 N of thrust from a 97 mm slim, 1,080 g light turbine – now with brushless fuel pump. It is made for sport jets and scale models of about 6 to 12 kg where every gram and every centimetre of installation space counts.
At a glance
- Thrust: 2–100 N
- Weight: 1080 g
- Diameter 97 mm, length 241 mm incl. starter
- Full-power fuel consumption: 390 ml/min
- Max. rpm: 154,000
- Fuel: kerosene (Jet A-1) with 5 % turbine oil
- Battery: 3s LiFePo4
Technology
- JetCat autostart: direct kerosene start, internal temperature sensor
- ECU V12.0 with digital bus system – just one cable and one hose between turbine and ECU, telemetry integrated
- Integrated barometric and temperature sensor: the control adapts automatically to altitude and weather
- Auto power-down: the ECU switches itself off after cooling, the radio may be switched off before
- ID chip on the turbine side, bus port for smoke pump and lighting control unit (LCU)
- Runs on 3s LiFePo4 (not included)
- Bearing lubrication via 5 % oil in the kerosene
- Made in Germany, 36 months warranty
Matching models
Fits for example the JetRuler F-16 1.8 m and compact sport jets up to about 12 kg. Not sure which turbine suits your model? Call us – we fly JetCat ourselves.
Technical data
| Pressure ratio | 2.9 |
| Mass flow | 0.23 kg/s |
| Fuel consumption full power | 390 ml/min |
| Fuel consumption idle | 80 ml/min |
| Weight | 1080 g |
| Diameter | 97 mm |
| Length incl. starter | 241 mm |
| Exhaust gas temperature | 480-720 °C |
| Idle rpm | 44000 1/min |
| Max. rpm | 154000 1/min |
| Idle thrust | 2 N |
| Thrust at max. rpm | 100 N |
| Exhaust gas velocity | 1565 km/h |
| Jet power | 21.7 kW |
| SFC at max. rpm | 0.187 kg/Nh |
Scope of delivery
Turbine with all accessories for installation and operation (ECU, pump, valves, cables, hoses, mounting clamp) – without battery.
Manufacturer videos: Video 1, Video 2, Video 3, Video 4
Data sheet, dimension drawing, connection chart and manual as PDF in the downloads. Delivery time on request – price incl. 19 % VAT.
Manufacturer part number: 71113-0050
Downloads
| file | file size |
|---|---|
| Product_safety_Information_Turbines_Jetcat.pdf (2.22 MB) | 2.22 MB |
| Produktsicherheitshinweis_Modellturbinen_Jetcat.pdf (2.22 MB) | 2.22 MB |
| JetCat_P100-RX_Datenblatt.pdf (1.72 MB) | 1.72 MB |
| JetCat_P100-RX_Abmessungen.pdf (0.55 MB) | 0.55 MB |
| JetCat_RX-RXi_Bedienungsanleitung.pdf (4.17 MB) | 4.17 MB |
| JetCat_RX_Anschlussplan_ECU-V12.pdf (0.77 MB) | 0.77 MB |
