JetCat P130-RX-BL – 130 N turbine with brushless pump
2.599,00 EUR
incl. 19 % VAT excl. shipping costs
weight 1,93 kg
delivery time auf Anfrage
Verfügbar!
JetCat P130-RX-BL – 130 N turbine with brushless pump
Product.Nr. JC-P130-RX-BL
product description

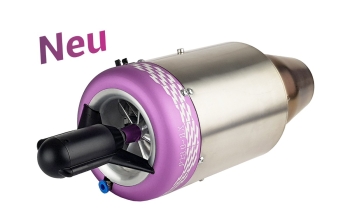

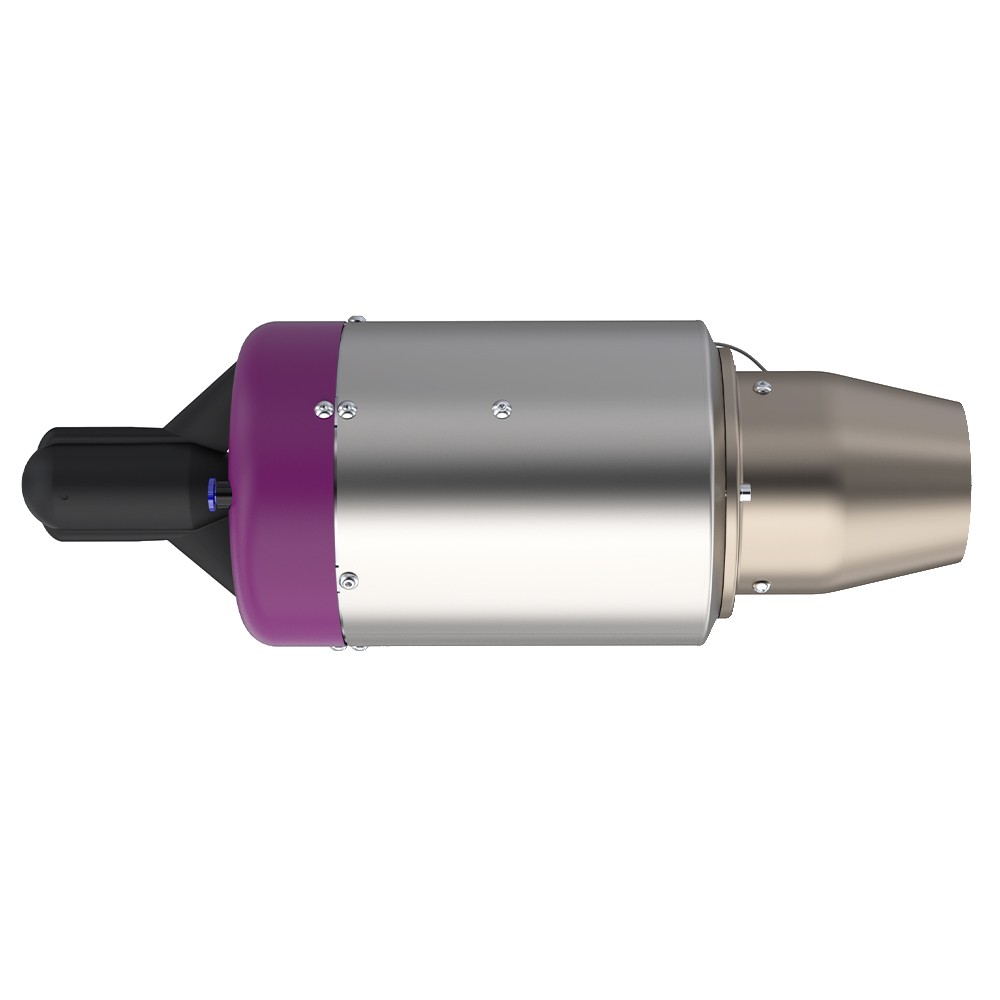

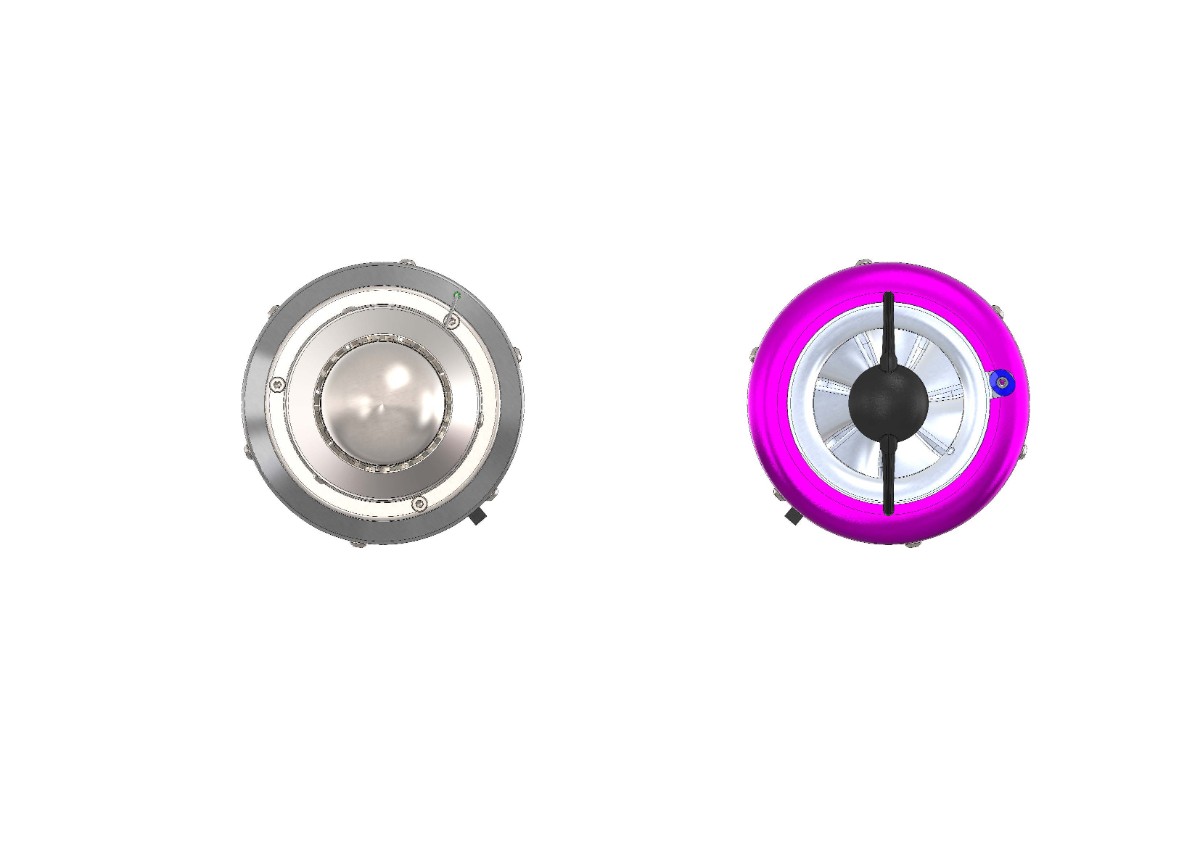

JetCat P130-RX-BL – 130 N turbine with brushless pump
The JetCat P130-RX-BL is the all-round turbine for medium-size models and twin-engine jets where weight and thrust count equally: 130 N from 1,326 g, 99 mm diameter, now with brushless fuel pump and ECU V12 with telemetry.
At a glance
- Thrust: 4–130 N
- Weight: 1326 g
- Diameter 99 mm, length 284 mm incl. starter
- Full-power fuel consumption: 441 ml/min at 130 N
- Max. rpm: 127,000
- Fuel: kerosene (Jet A-1) with 5 % turbine oil
- Battery: 3s LiFePo4
Technology
- JetCat autostart: direct kerosene start, internal temperature sensor
- ECU V12.0 with digital bus system – just one cable and one hose between turbine and ECU, telemetry integrated
- Integrated barometric and temperature sensor: the control adapts automatically to altitude and weather
- Auto power-down: the ECU switches itself off after cooling, the radio may be switched off before
- ID chip on the turbine side, bus port for smoke pump and lighting control unit (LCU)
- Runs on 3s LiFePo4 (not included)
- Bearing lubrication via 5 % oil in the kerosene
- Made in Germany, 36 months warranty
Matching models
Our recommendation for the GLOBAL Viper 2.3 m (100–160 N) and comparable sport jets of 10 to 14 kg. Not sure which turbine suits your model? Call us – we fly JetCat ourselves.
Technical data
| Pressure ratio | 3 |
| Mass flow | 0.3 kg/s |
| Fuel consumption full power | 441 ml/min @ 130N |
| Fuel consumption idle | 100 ml/min |
| Weight | 1326 g |
| Diameter | 99 mm |
| Length incl. starter | 284 mm |
| Exhaust gas temperature | 490-720 °C |
| Idle rpm | 40000 1/min |
| Max. rpm | 127000 1/min |
| Idle thrust | 4 N |
| Thrust at max. rpm | 130 N |
| Exhaust gas velocity | 1560 km/h |
| Jet power | 28.2 kW |
| SFC at max. rpm | 0.185 kg/Nh |
Scope of delivery
Turbine with all accessories for installation and operation (ECU, pump, valves, cables, hoses, mounting clamp) – without battery.
Data sheet, dimension drawing, connection chart and manual as PDF in the downloads. Delivery time on request – price incl. 19 % VAT.
Manufacturer part number: 71151-0010
Downloads
| file | file size |
|---|---|
| Product_safety_Information_Turbines_Jetcat.pdf (2.22 MB) | 2.22 MB |
| Produktsicherheitshinweis_Modellturbinen_Jetcat.pdf (2.22 MB) | 2.22 MB |
| JetCat_P130-RX_Datenblatt.pdf (0.83 MB) | 0.83 MB |
| JetCat_P130-RX_Abmessungen.pdf (0.26 MB) | 0.26 MB |
| JetCat_RX-RXi_Bedienungsanleitung.pdf (4.17 MB) | 4.17 MB |
| JetCat_RX_Anschlussplan_ECU-V12.pdf (0.77 MB) | 0.77 MB |
