JetCat P350-PRO-S RC-Set – 360 N turbine with PRO-Interface & GSU
7.795,00 EUR
incl. 19 % VAT excl. shipping costs
weight 3,49 kg
delivery time auf Anfrage
Verfügbar!
JetCat P350-PRO-S RC-Set – 360 N turbine with PRO-Interface & GSU
Product.Nr. JC-P350-PRO-S-RC-Set
product description
JetCat P350-PRO-S RC-Set – 360 N turbine with PRO-Interface & GSU

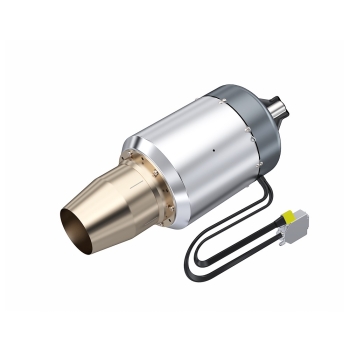

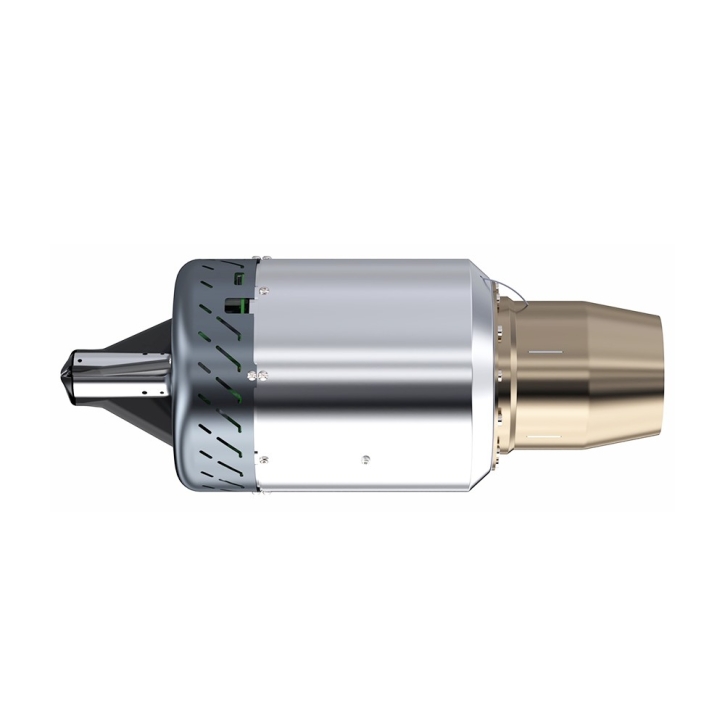

The JetCat P350-PRO-S RC-Set is the turbine for the really big jets: 360 N of thrust at 2,890 g, with radial compressor, annular combustion chamber and axial turbine, brushless starter and brushless fuel pump, FADEC control, kerosene quick start and in-air restart. Fuel consumption, remaining fuel and all operating values are continuously reported to telemetry. RC-Set with PRO-Interface V2, GSU V2.0, JetNet and mounting clamp.
At a glance
- Thrust: 15,5–360 N
- Weight: 2890 g
- Diameter 136 mm, length 350 mm incl. starter
- Full-power fuel consumption: 1185 ml/min
- Max. rpm: 105,000
- Fuel: kerosene (Jet A-1) with turbine oil
- Battery: 3s LiPo
Technology
- ECU fully integrated in the turbine, programmable via the detachable GSU
- Brushless starter and seal-free brushless fuel pump
- Kerosene quick start without preheating or glow plug, in-air restart manual or automatic
- Barometric altitude sensor: automatic adaptation to operating altitude
- Automatic filling and bleeding of the fuel lines
- Automatic cool-down cycle, safety shutdown via termination input, complete monitoring of all currents, voltages and turbine values
- PRO-Interface: telemetry for Jeti, Graupner HoTT, Multiplex and Futaba, GSU port, airspeed sensor, CAN bus, RS232, twin-engine cross-check, online software updates
- High-performance ceramic bearings, Made in Germany
Matching models
For jets from 25 kg – 1:4 scale jets and heavy scale models. Not sure which turbine suits your model? Call us – we fly JetCat ourselves.
Technical data
| Pressure ratio | 3.8 |
| Mass flow | 0.65 kg/s |
| Fuel consumption full power | 1185 ml/min |
| Fuel consumption idle | 148 ml/min |
| Weight | 2890 g |
| Diameter | 136 mm |
| Length incl. starter | 350 mm |
| Recommended battery | LiPo 3s |
| Exhaust gas temperature | 480-750 °C |
| Idle rpm | 30000 1/min |
| Max. rpm | 105000 1/min |
| Idle thrust | 15.5 N |
| Thrust at max. rpm | 360 N |
| Exhaust gas velocity | 2000 km/h |
| Jet power | 100 kW |
| SFC at max. rpm | 0.158 kg/Nh |
Scope of delivery
- JetCat P350-PRO-S turbine (71153-0300)
- turbine mounting clamp (41143-0349)
- JetCat PRO-Interface V2 (61168-0020)
- JetNet (61129-0070)
- Remote Controller GSU V2.0 (61101-0010)
Data sheet, dimension drawing, connection chart and manual as PDF in the downloads. Delivery time on request – price incl. 19 % VAT.
Manufacturer part number: 81153-0300
Downloads
| file | file size |
|---|---|
| Product_safety_Information_Turbines_Jetcat.pdf (2.22 MB) | 2.22 MB |
| Produktsicherheitshinweis_Modellturbinen_Jetcat.pdf (2.22 MB) | 2.22 MB |
| JetCat_P350-PRO-S_Datenblatt.pdf (1.92 MB) | 1.92 MB |
| JetCat_P350-PRO-S_Abmessungen.pdf (2.47 MB) | 2.47 MB |
| JetCat_PRO-S_Anschlussplan_Option-A.pdf (3.05 MB) | 3.05 MB |
| JetCat_PRO-S_Anschlussplan_Option-B.pdf (2.95 MB) | 2.95 MB |
