Germany
Xicoy X195 – 195 N turbine, FlexThrust 110–195 N
3.360,00 EUR
incl. 19 % VAT excl. shipping costs
weight 2,2 kg
delivery time auf Anfrage
Verfügbar! - Nur noch geringe Anzahl auf Lager!
Xicoy X195 – 195 N turbine, FlexThrust 110–195 N
Product.Nr. XI-X195
product description

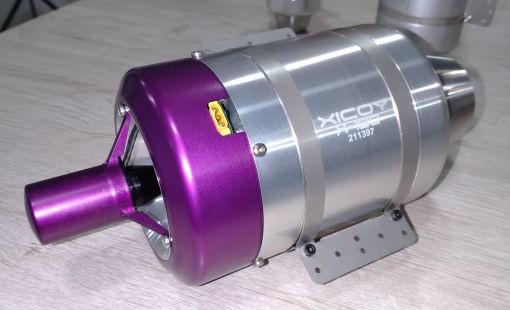

Xicoy X195 – 195 N turbine, FlexThrust 110–195 N
The Xicoy X195 is the X180 with new rotating parts: 195 N at an unchanged 1,400 g and 106 mm – the best thrust-to-weight ratio in its class. FlexThrust from 110 to 195 N, idle 5.4 N, consumption 510 g/min at full power.
At a glance
- Thrust: 5.4–195 N, maximum thrust adjustable from 110 to 195 N
- Weight: 1,400 g engine, 1,600 g total installed (without battery)
- Diameter 106 mm, length 247 mm
- Full-power fuel consumption: 510 g/min (640 ml/min)
- RPM: 28,000 – 124,000
- Battery: 3s LiPo 2,200 mAh (not included)
Technology
- FlexThrust: maximum thrust continuously adjustable at the press of a button – one turbine for many models
- Kerosene start, high-speed brushless starter, digitally controlled brushless fuel pump
- ProHub with integrated telemetry (Jeti, FrSky, HoTT, PowerBox, Futaba); MPX and JR via optional module
- Sensors for ambient temperature and air pressure – the control adapts performance automatically
- Lowest specific fuel consumption in its class
- Fuel: kerosene with 4 % turbine oil (no biodiesel content)
- Service interval 25 hours
- Warranty 2 years or 25 operating hours (parts and labour; shipping to the factory in Spain not included)
Matching models
Fits the GLOBAL Viper 2.8 m (190–250 N) and scale jets of 14 to 20 kg. Not sure which turbine suits your model? Call us – we fly Xicoy ourselves and know what fits where.
Technical data
| Max. thrust | 195 N |
| Adjustable thrust (FlexThrust) | 110 – 195 N |
| Idle thrust | 5.4 N |
| Diameter | 106 mm |
| Length | 247 mm |
| Engine weight | 1,400 g |
| Installed weight (without battery) | 1,600 g |
| RPM range | 28,000 – 124,000 |
| Full-power fuel consumption | 510 g/min (640 ml/min) |
| Fuel | kerosene + 4 % turbine oil |
| Starter | brushless, kerosene start |
| Fuel pump | brushless, digitally controlled |
| Telemetry | Jeti, FrSky, HoTT, PowerBox, Futaba (integrated in ProHub) |
| Recommended battery | 3s LiPo 2,200 mAh |
| Service interval | 25 hours |
Scope of delivery
Turbine in PRO version with ProHub (removable colour display, integrated data recorder, USB port and telemetry adapter), fuel pump, valves, cables, hoses and mounting strap – without battery.
Dimension drawing and manual as PDF in the downloads. Price incl. 19 % VAT and shipping from Spain – delivery time on request.
Downloads
| file | file size |
|---|---|
| XicoyTurbojetManual.pdf (4.16 MB) | 4.16 MB |
| Product_safety_Information_Turbines_Xicoy.pdf (2.23 MB) | 2.23 MB |
| Produktsicherheitshinweis_Modellturbinen_Xicoy.pdf (2.23 MB) | 2.23 MB |
| Xicoy_Turbojet_Bedienungsanleitung_DE.pdf (2.21 MB) | 2.21 MB |
| Xicoy_X195_Abmessungen.pdf (0.03 MB) | 0.03 MB |
Manufacturer identification
Manufacturer identification
Name: Xicoy Electronica SLE-Mail adress: sales@xicoy.com
Streetaddress: Plaça Pere Llauger, nau 18
ZIP Code: 08360
City: Canet de Mar
Country: ES
Phone: (+34) 937 942 774
