Xicoy X225 – 225 N turbine, FlexThrust 120–225 N
Xicoy X225 – 225 N turbine, FlexThrust 120–225 N
Product.Nr. XI-X225
product description

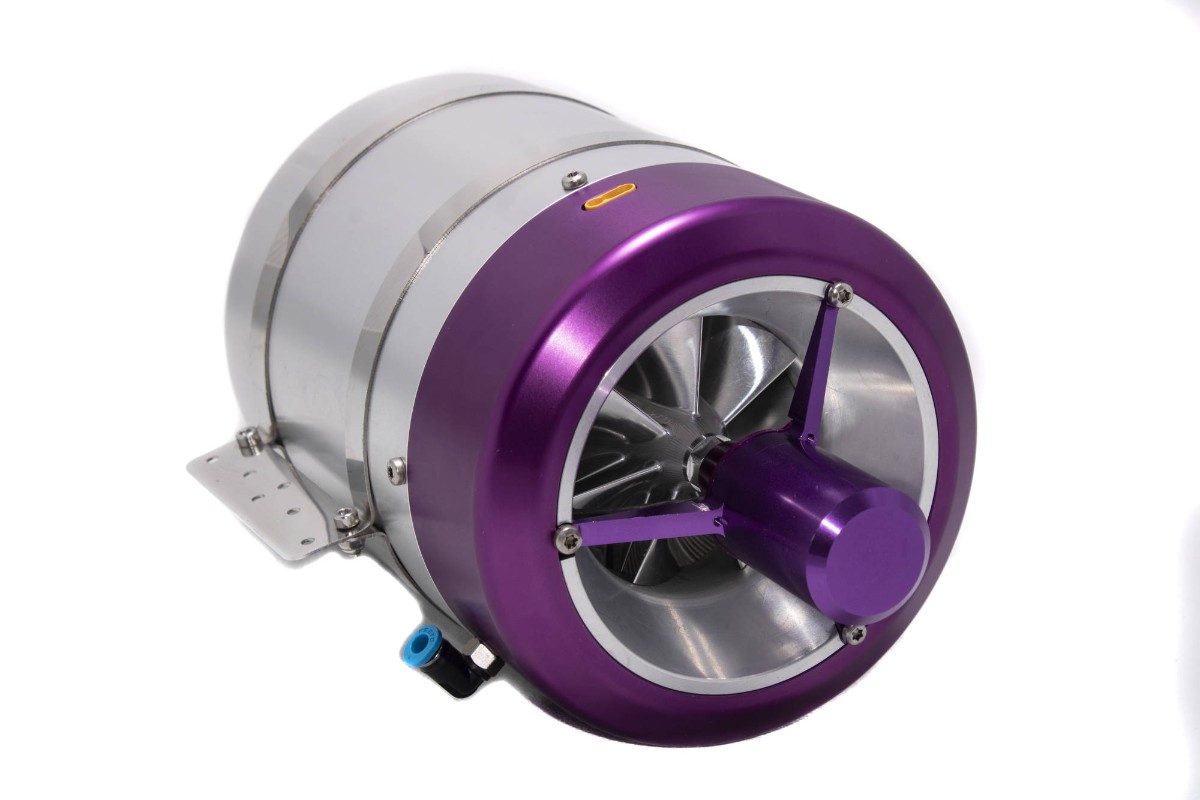

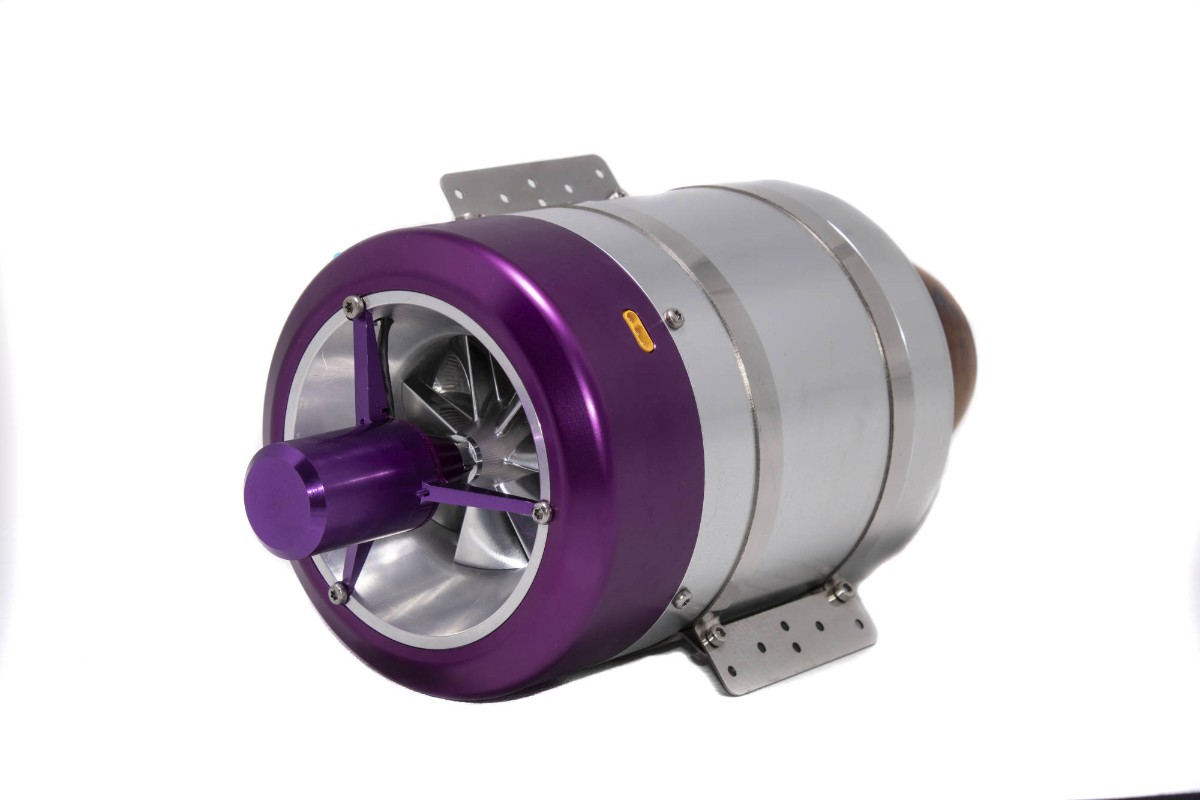

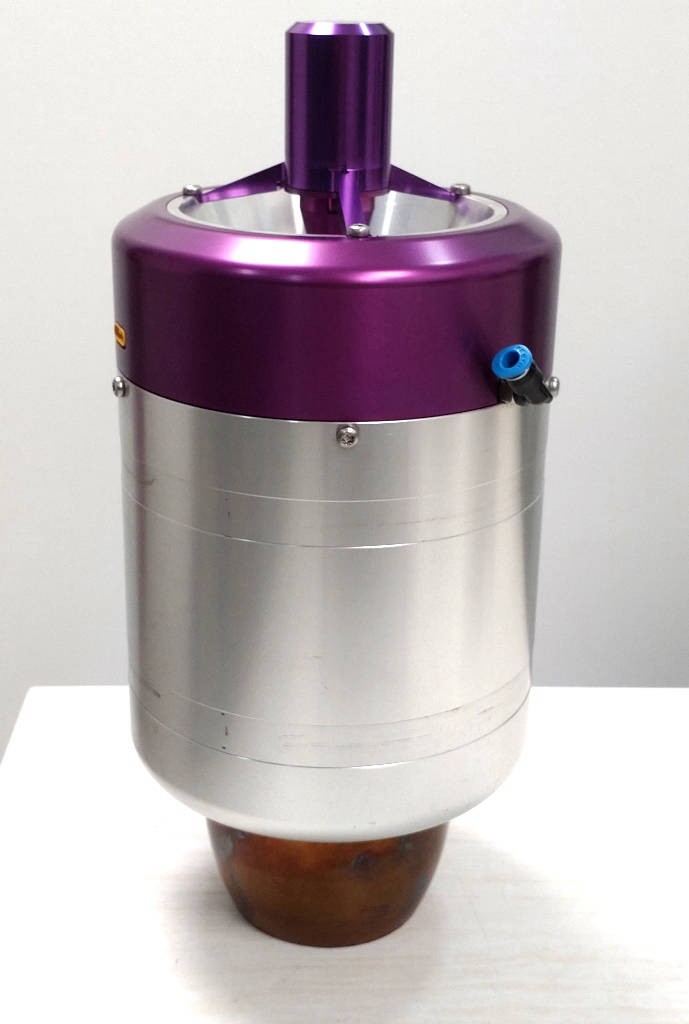

Xicoy X225 – 225 N turbine, FlexThrust 120–225 N
The Xicoy X225 is new to the range and sits between X195 and X240: 225 N from 114 mm diameter at 1,700 g – for everyone for whom the X195 is a touch too little. Maximum thrust FlexThrust-adjustable from 120 to 225 N, 7 N idle thrust, 560 g/min at full power. Data are preliminary according to the manufacturer.
At a glance
- Thrust: 7–225 N, maximum thrust adjustable from 120 to 225 N

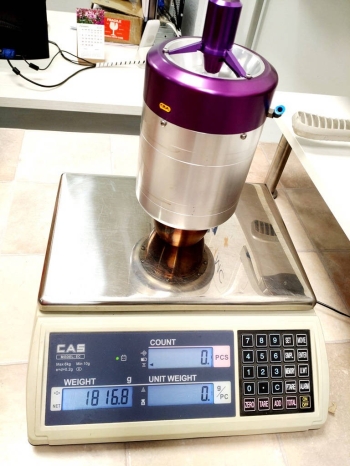

- Weight: 1,700 g engine, 2,000 g total installed (without battery)
- Diameter 114 mm, length 270 mm
- Full-power fuel consumption: 560 g/min (700 ml/min)
- RPM: 28,000 – 118,000
- Battery: 3s LiPo 2,200 mAh (not included)
Technology
- FlexThrust: maximum thrust continuously adjustable at the press of a button – one turbine for many models
- Kerosene start, high-speed brushless starter, digitally controlled brushless fuel pump
- ProHub with integrated telemetry (Jeti, FrSky, HoTT, PowerBox, Futaba); MPX and JR via optional module
- Sensors for ambient temperature and air pressure – the control adapts performance automatically
- Lowest specific fuel consumption in its class
- Fuel: kerosene with 4 % turbine oil (no biodiesel content)
- Service interval 25 hours
- Warranty 2 years or 25 operating hours (parts and labour; shipping to the factory in Spain not included)
Matching models
The recommendation for the GLOBAL Viper 2.8 m (190–250 N) and large jets of 16 to 24 kg. Not sure which turbine suits your model? Call us – we fly Xicoy ourselves and know what fits where.
Technical data
| Max. thrust | 225 N |
| Adjustable thrust (FlexThrust) | 120 – 225 N |
| Idle thrust | 7 N |
| Diameter | 114 mm |
| Length | 270 mm |
| Engine weight | 1,700 g |
| Installed weight (without battery) | 2,000 g |
| RPM range | 28,000 – 118,000 |
| Full-power fuel consumption | 560 g/min (700 ml/min) |
| Fuel | kerosene + 4 % turbine oil |
| Starter | brushless, kerosene start |
| Fuel pump | brushless, digitally controlled |
| Telemetry | Jeti, FrSky, HoTT, PowerBox, Futaba (integrated in ProHub) |
| Recommended battery | 3s LiPo 2,200 mAh |
| Service interval | 25 hours |
Scope of delivery
Turbine in PRO version with ProHub (removable colour display, integrated data recorder, USB port and telemetry adapter), fuel pump, valves, cables, hoses and mounting strap – without battery.
Dimension drawing and manual as PDF in the downloads. Price incl. 19 % VAT and shipping from Spain – delivery time on request.
Downloads
| file | file size |
|---|---|
| Product_safety_Information_Turbines_Xicoy.pdf (2.23 MB) | 2.23 MB |
| Produktsicherheitshinweis_Modellturbinen_Xicoy.pdf (2.23 MB) | 2.23 MB |
| XicoyTurbojetManual.pdf (4.16 MB) | 4.16 MB |
| Xicoy_Turbojet_Bedienungsanleitung_DE.pdf (2.21 MB) | 2.21 MB |
| Xicoy_X225_Abmessungen.pdf (0.03 MB) | 0.03 MB |
