Xicoy X380 – 380 N turbine, FlexThrust 190–380 N
5.860,00 EUR
incl. 19 % VAT excl. shipping costs
weight 3,95 kg
delivery time auf Anfrage
Verfügbar!
Xicoy X380 – 380 N turbine, FlexThrust 190–380 N
Product.Nr. XI-X380
product description

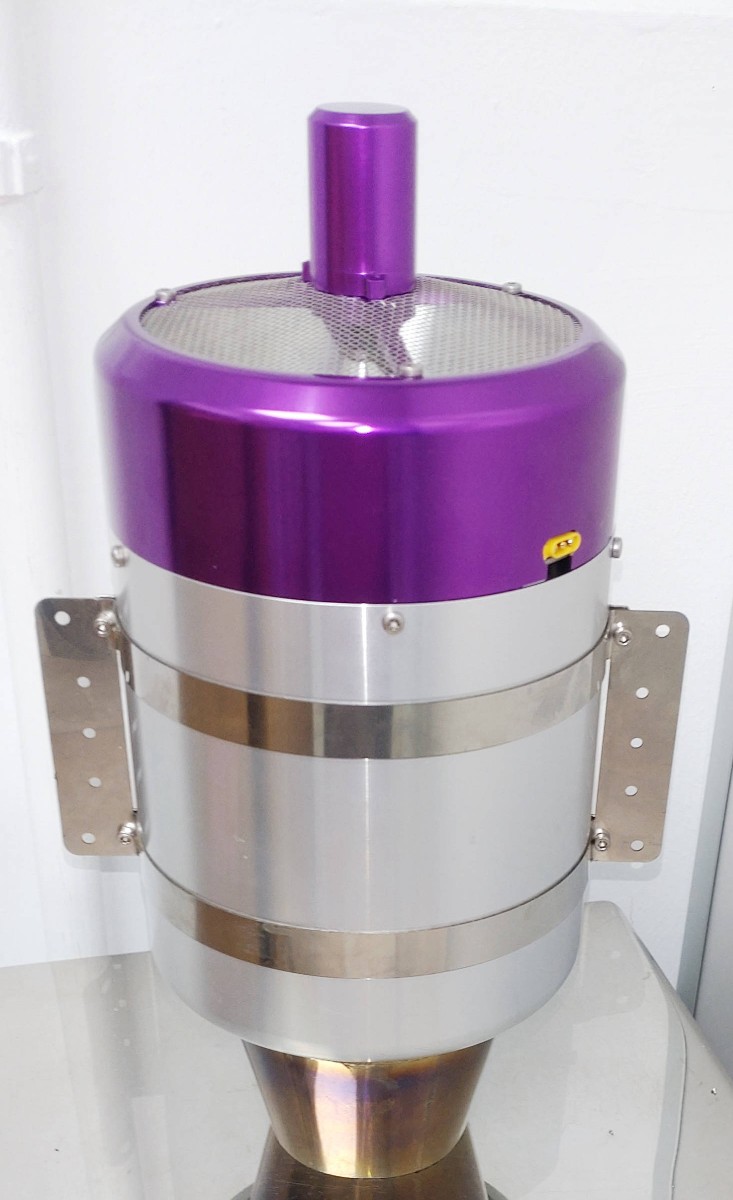

Xicoy X380 – 380 N turbine, FlexThrust 190–380 N
The Xicoy X380 is the new top of the range: 380 N of thrust for the really big projects, with an extremely low residual thrust of only 10 N. 140 mm diameter, 3,133 g including mounting strap, maximum thrust FlexThrust-adjustable from 190 to 380 N. According to the manufacturer the turbine is still in development – data preliminary, delivery by arrangement.
At a glance
- Thrust: 10–380 N, maximum thrust adjustable from 190 to 380 N

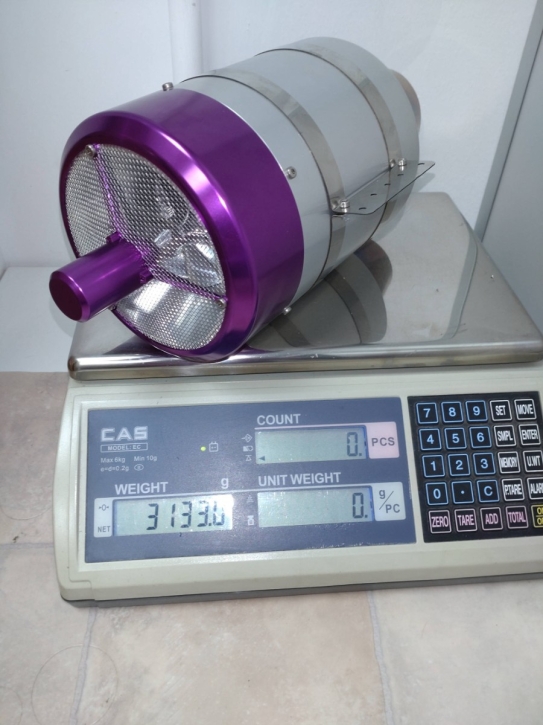

- Weight: 3,133 g engine, 3,350 g total installed (without battery)
- Diameter 140 mm, length 317 mm
- Full-power fuel consumption: 985 g/min (1,250 ml/min). SFC 0.154
- RPM: 22,000 – 96,000
- Battery: 3s LiPo 2,200 mAh (not included)
Technology
- FlexThrust: maximum thrust continuously adjustable at the press of a button – one turbine for many models
- Kerosene start, high-speed brushless starter, digitally controlled brushless fuel pump
- ProHub with integrated telemetry (Jeti, FrSky, HoTT, PowerBox, Spektrum, Futaba); MPX and JR via optional module
- Sensors for ambient temperature and air pressure – the control adapts performance automatically
- Lowest specific fuel consumption in its class
- Fuel: kerosene with 4 % turbine oil (no biodiesel content)
- Service interval 25 hours
- Warranty 2 years or 25 operating hours (parts and labour; shipping to the factory in Spain not included)
Matching models
For large jets from 25 kg – 1:4 scale models and heavy twin-engine jets with 2 × 190 N. Not sure which turbine suits your model? Call us – we fly Xicoy ourselves and know what fits where.
Technical data
| Max. thrust | 380 N |
| Adjustable thrust (FlexThrust) | 190 – 380 N |
| Idle thrust | 10 N |
| Diameter | 140 mm |
| Length | 317 mm |
| Engine weight | 3,133 g |
| Installed weight (without battery) | 3,350 g |
| RPM range | 22,000 – 96,000 |
| Full-power fuel consumption | 985 g/min (1,250 ml/min). SFC 0.154 |
| Fuel | kerosene + 4 % turbine oil |
| Starter | brushless, kerosene start |
| Fuel pump | brushless, digitally controlled |
| Telemetry | Jeti, FrSky, HoTT, PowerBox, Spektrum, Futaba (integrated in ProHub) |
| Recommended battery | 3s LiPo 2,200 mAh |
| Service interval | 25 hours |
Scope of delivery
Turbine in PRO version with ProHub (removable colour display, integrated data recorder, USB port and telemetry adapter), fuel pump, valves, cables, hoses and mounting strap – without battery.
Manual as PDF in the downloads. Price incl. 19 % VAT and shipping from Spain – delivery time on request.
Downloads
| file | file size |
|---|---|
| Product_safety_Information_Turbines_Xicoy.pdf (2.23 MB) | 2.23 MB |
| Produktsicherheitshinweis_Modellturbinen_Xicoy.pdf (2.23 MB) | 2.23 MB |
| XicoyTurbojetManual.pdf (4.16 MB) | 4.16 MB |
| Xicoy_Turbojet_Bedienungsanleitung_DE.pdf (2.21 MB) | 2.21 MB |
