Xicoy X50 – 50 N turbine, FlexThrust 25–50 N
Product.Nr. XI-X50
product description
Xicoy X50 – 50 N turbine, FlexThrust 25–50 N
The Xicoy X50 is the successor to the proven X45 – same size, same weight, but significantly more power and still the low residual thrust the X45 was valued for. Everything Xicoy learned with the X30 has gone into this evolution. At 59.8 mm diameter and 385 g it is the smallest turbine in the range – and thanks to FlexThrust continuously adjustable from 25 to 50 N.
At a glance
- Thrust: 1.8–50 N, maximum thrust adjustable from 25 to 50 N

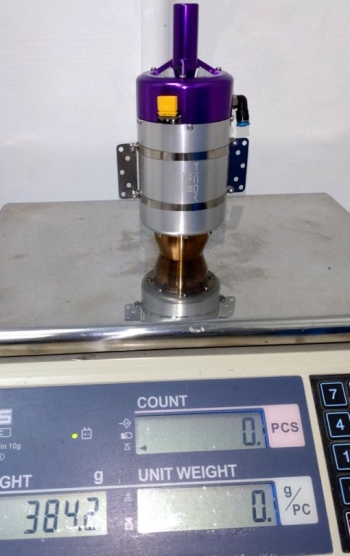

- Weight: 385 g engine, 463 g total installed (without battery)
- Diameter 59.8 mm, length 158 mm
- Full-power fuel consumption: 160 g/min (205 ml/min)
- RPM: 60,000 – 225,000
- Battery: 2s LiPo 2,200 mAh (not included)
Technology
- FlexThrust: maximum thrust continuously adjustable at the press of a button – one turbine for many models
- Kerosene start, high-speed brushless starter, digitally controlled brushless fuel pump
- ProHub with integrated telemetry (Jeti, FrSky, HoTT, PowerBox, Spektrum, Futaba); MPX and JR via optional module
- Sensors for ambient temperature and air pressure – the control adapts performance automatically
- Lowest specific fuel consumption in its class
- Fuel: kerosene with 4 % turbine oil (no biodiesel content)
- Service interval 25 hours
- Warranty 2 years or 25 operating hours (parts and labour; shipping to the factory in Spain not included)
Matching models
For small sport jets and scale models of about 3 to 6 kg, for all models designed for X45-class turbines, and as an entry into turbine flying. Not sure which turbine suits your model? Call us – we fly Xicoy ourselves and know what fits where.
Technical data
| Max. thrust | 50 N |
| Adjustable thrust (FlexThrust) | 25 – 50 N |
| Idle thrust | 1.8 N |
| Diameter | 59.8 mm |
| Length | 158 mm |
| Engine weight | 385 g |
| Installed weight (without battery) | 463 g |
| RPM range | 60,000 – 225,000 |
| Full-power fuel consumption | 160 g/min (205 ml/min) |
| Fuel | kerosene + 4 % turbine oil |
| Starter | brushless, kerosene start |
| Fuel pump | brushless, digitally controlled |
| Telemetry | Jeti, FrSky, HoTT, PowerBox, Spektrum, Futaba (integrated in ProHub) |
| Recommended battery | 2s LiPo 2,200 mAh |
| Service interval | 25 hours |
Scope of delivery
Turbine in PRO version with ProHub (removable colour display, integrated data recorder, USB port and telemetry adapter), fuel pump, valves, cables, hoses and mounting strap – without battery.
Dimension drawing and manual as PDF in the downloads. Price incl. 19 % VAT and shipping from Spain – delivery time on request.
Downloads
| file | file size |
|---|---|
| Product_safety_Information_Turbines_Xicoy.pdf (2.23 MB) | 2.23 MB |
| Produktsicherheitshinweis_Modellturbinen_Xicoy.pdf (2.23 MB) | 2.23 MB |
| XicoyTurbojetManual.pdf (4.16 MB) | 4.16 MB |
| Xicoy_Turbojet_Bedienungsanleitung_DE.pdf (2.21 MB) | 2.21 MB |
| Xicoy_X50_Abmessungen.pdf (0.02 MB) | 0.02 MB |
