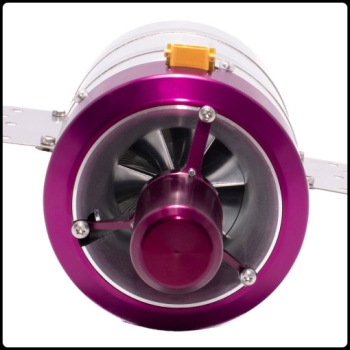

Aeromodel engine X132 Light version
product description
Aeromodel engine X132 Light version
Xicoy X180 – High-Power Performance with Lightweight Efficiency
To further expand the Xicoy engine lineup, the X180 has been developed for pilots who require more power while maintaining low weight, excellent efficiency, and minimal fuel consumption.
Positioned above the X132, the X180 offers a substantial increase in thrust without compromising the clean installation and intelligent electronics that define all Xicoy turbines.
With a maximum thrust range adjustable up to 180 N, the X180 provides exceptional flexibility for a wide variety of larger sport, scale, and aerobatic jets — particularly those that demand high power output but still benefit from a compact, efficient propulsion system.
As with all Xicoy engines, the X180 integrates lightweight electronics, FlexThrust capability, and precision-built components to deliver a refined, reliable, and high-performance turbine experience.
Technical Specifications
| Parameter | Specification |
|---|---|
| Thrust | Adjustable from 100–180 N (40.5 lbf / 18.3 kgf) |
| Dimensions | 106 mm diameter • 247 mm length |
| Weight | 1,400 g engine • 1,600 g installed (excluding battery) |
| RPM Range | 28,000 – 122,000 RPM |
| Idle Thrust | 4.8 N (0.5 kg / 1.2 lbf) @ 28,000 RPM |
| Fuel | Kerosene + 4% oil • Diesel allowed but not recommended • No biodiesel |
| Fuel Consumption | 470 g/min at 180 N (≈ 590 ml/min) |
| Starter Motor | High-speed brushless starter |
| Fuel Pump | Digitally controlled brushless pump |
| Telemetry | Jeti, FrSky, HoTT, PowerBox & Futaba included (ProHub) • MPX & JR optional |
| Service Interval | 25 hours |
| Recommended Battery | 3S LiPo 2200 mAh recommended (3S LiFe compatible) |
| Sensors | Integrated temperature & pressure sensors for automatic performance adjustment |
Downloads
| file | file size |
|---|---|
| XicoyTurbojetManual.pdf (4.16 MB) | 4.16 MB |
| Product_safety_Information_Turbines_Xicoy.pdf (2.23 MB) | 2.23 MB |
| Produktsicherheitshinweis_Modellturbinen_Xicoy.pdf (2.23 MB) | 2.23 MB |
